Article specifications
| Part no. | 906513 |
|---|---|
| Item description | Aluminium-Pressverbinder HELU-S-PV-AL-DIN (50,00 - 70,00 mm²) |
| Length (mm) | 85,0 |
| Weight (kg/1000 pcs) | 34,0 |
| Nominal cross-section range (mm²) | 50,00 - 70,00 |
| Type code | 16 |
| Inner diameter (mm) | 10,0 |
| Pieces per packaging unit | 25 |
| Individual quantities available | no |
| EAN / GTIN | 4060892428340 |
| Customs tariff number | 85369010 |
Manufacturer technical information
Aluminium press connector
Temperature range
up to +120°C
Structure
- Material: Aluminium 99,5
- Surface: bare
Notes
- Code type indicates the required hexagonal crimping insert.
- Part No. 907835 is not standardized.
- Sleeves are prefilled with contact grease and sealed with plastic plug.

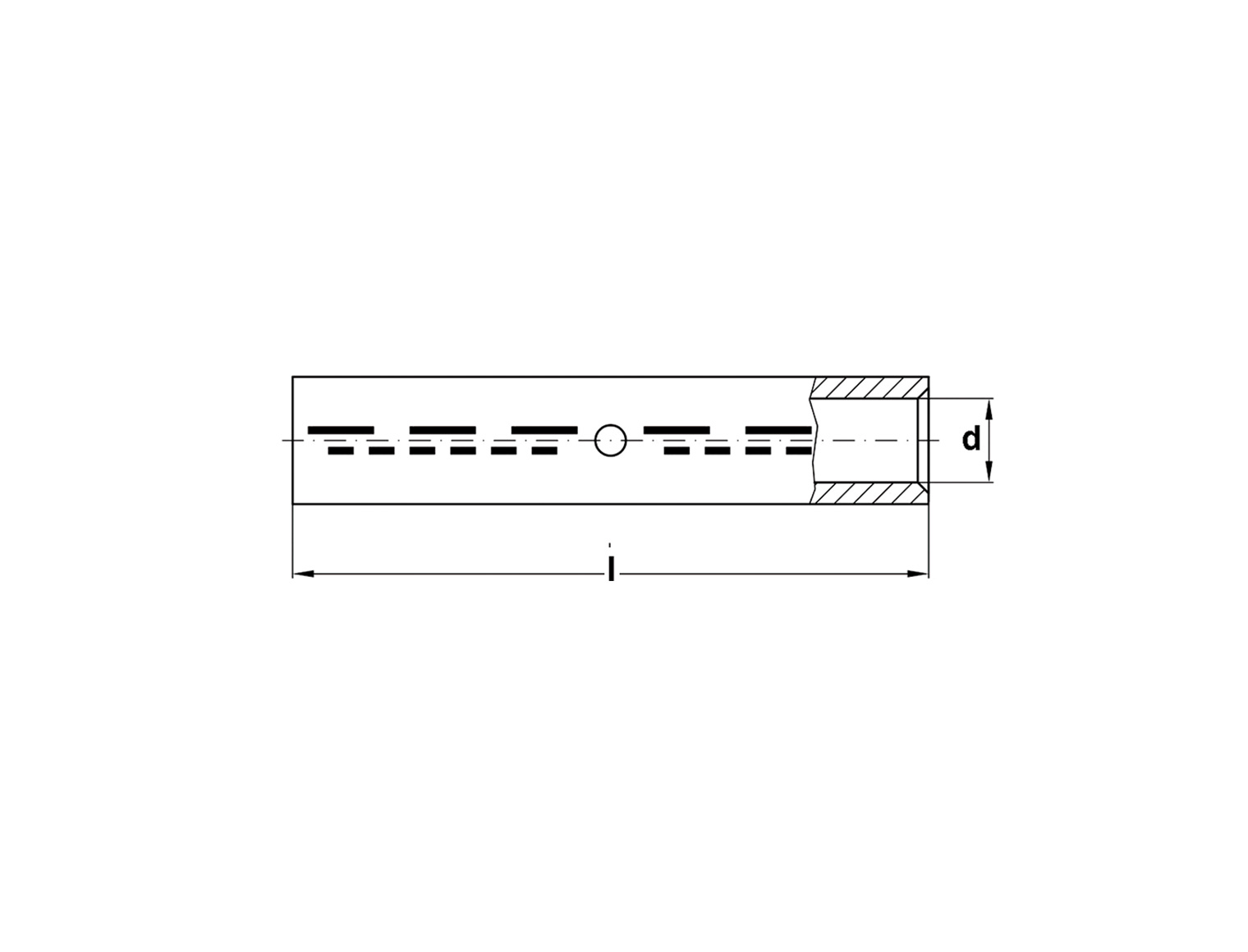

- Legend:
- Dimensions
- d - Inner diameter of wire receptable
- L - Length
Application
- Press connector for strain-relieved connections of conductors designed acc. to DIN 46267 part 2.
