Article specifications
| Part no. | 11023426 |
|---|---|
| Item description | Aufmaster AM1 orange |
| Colour | orange |
| Length (mm) | 192,0 |
| Weight, approx. (kg) | 0,178 |
| Height | 21 |
| mm | 62,0 |
| Width (mm) | 1 |
| Pieces per packaging unit | no |
| Individual quantities available | 4270004699128 |
| EAN / GTIN | 90318080 |
Manufacturer technical information

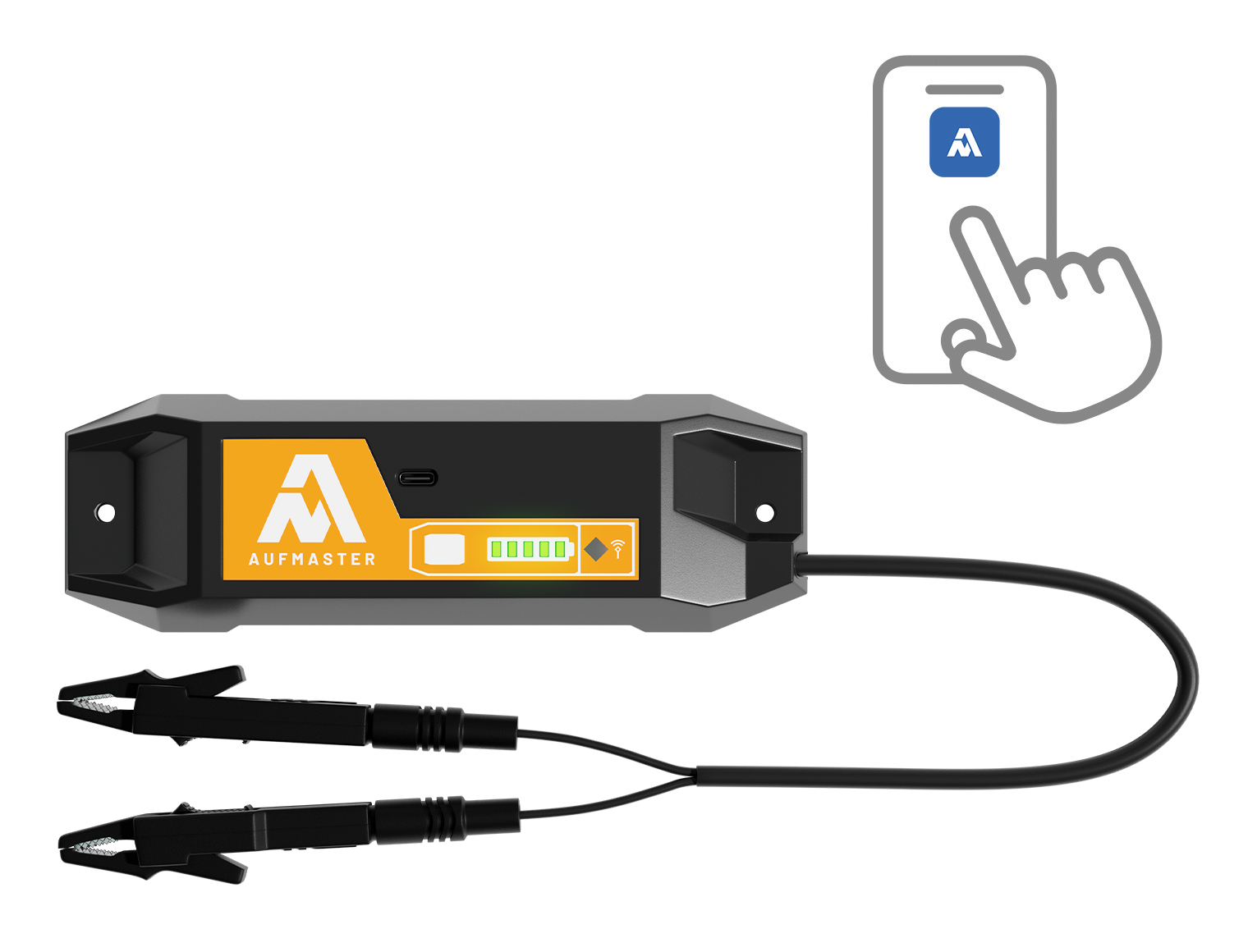

Digital cable length measuring device
Temperature range
-10°C to +50°C
Connection cable length
226 mm
Measurable cable length
10 to 1500 m
Protection class
IP 54
System requirements
min. Android 7
min. iOS 18.0
min. iOS 18.0
Radio transmission
Bluetooth 4.0, 4.1, 4.2, 5.0, 5.1
Transmission range
Open field: > 35 m
Indoor: 15 – 30m (depending on the spatial situation)
Indoor: 15 – 30m (depending on the spatial situation)
Structure
- Material: plastic
- Lithium-polymer battery
- 2x banan plugs for alligator clamps and testing probes, suitable for cross section from 0.25 mm² (approx. 24 AWG)
Tests
- certifications and approvals:
- MET for North America, NOM for Mexico
Notes
- USB-C charging cable, two Alligator clamps, two testing probes and operating instructions in German, English, French and Spanish included in the scope of delivery
- Available in eight different colours for easy identification within the app
Application
- Measures all cables with a metallic core, such as underground cables, control cables, telephone cables, twisted cables, CAT cables, and other cables with metallic core
- The cable can be coiled, laid out, or already installed
- Suitable for use indoors, in industrial environments, laboratories and on construction sites
- Aufmaster is a digital multitool for professional electricians. It’s a measurement, documentation, and testing device that measures cable lengths on drums or when installing and documents lengths even on the jobsite. Its advantages include reduced waste thanks to precise measurements, time savings through paperless, digital documentation, and the gapless tracking of your cable stock and projects. All data is automatically synchronised between the construction site, warehouse, and office. Hardware pricing does not include any of the 3 available software packages.
