Article specifications
| Part no. | 30470 |
|---|---|

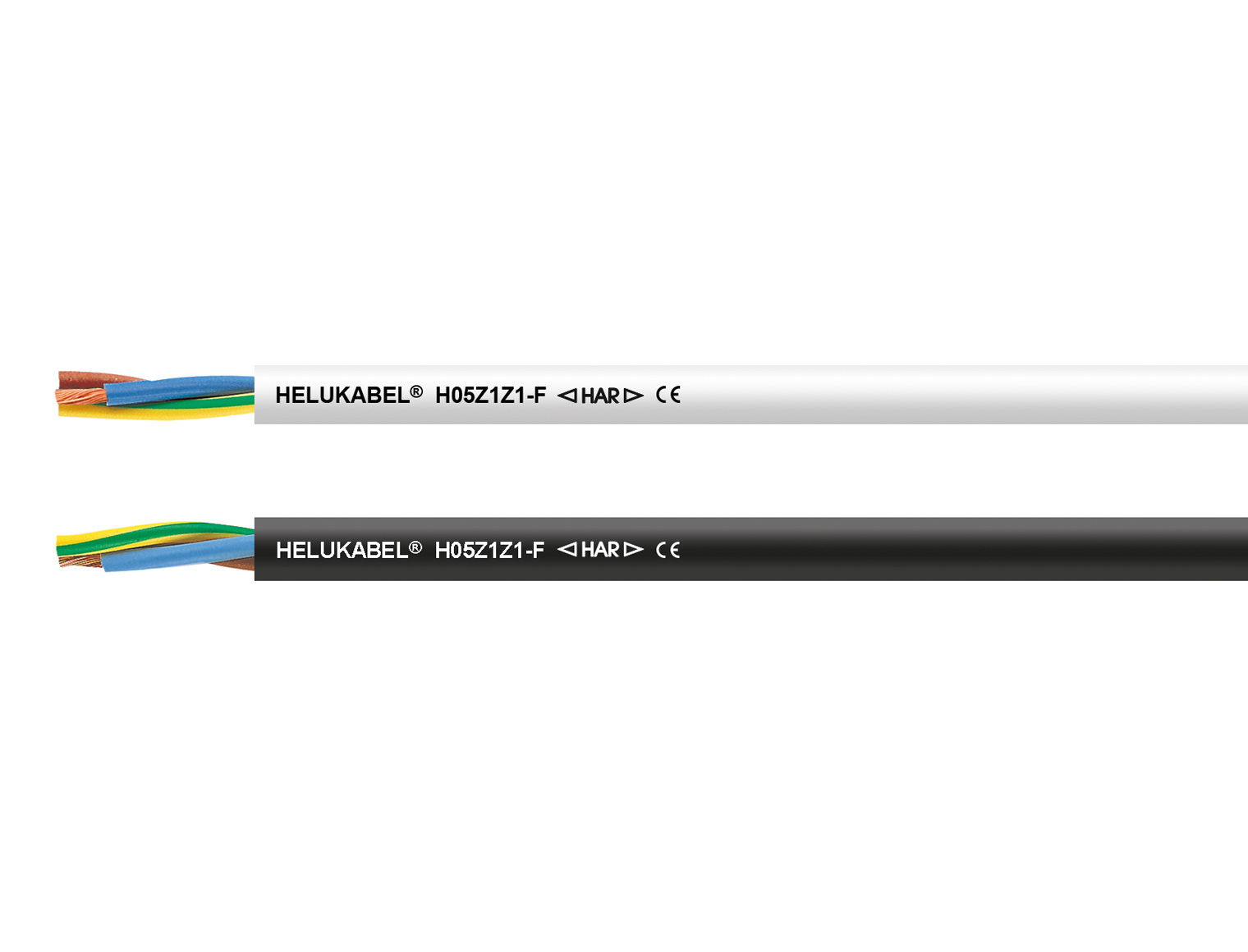

| Item description | H05Z1Z1-F black 5 G 4 mm² |
| Sheath colour | black (RAL 9005) |
| AWG, approx. | 12 |
| Outer diameter, approx. (mm) | 14,1 |
| Copper factor per km | 192,0 |
| Weight, approx. (kg/km) | 356,0 |
| Reaction to fire class | Cca |
| Metres per packaging unit | 500, 1000 |
| Custom cut lengths available | yes |
| EAN / GTIN | 4060892077951 |
| Customs tariff number | 85444995 |
Manufacturer technical information
Control and connection cable acc. to DIN VDE 0285-525-3-11 / DIN EN 50525-3-11
Temperature range
flexible +5°C to +60°C
fixed -40°C to +60°C
fixed -40°C to +60°C
Nominal voltage
AC U0/U 300/500 V
Test voltage core/core
2000 V
Breakdown voltage
4000 V
Minimum bending radius
flexible 7.5x Outer-Ø
fixed 4x Outer-Ø
fixed 4x Outer-Ø
Cable Structure
- Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
- Core insulation: thermoplastic compound acc. to DIN VDE 0207-363-7 / DIN EN 50363-7 (compound type TI6)
- Core identification acc. to DIN VDE 0293-308, colour coded
- Protective conductor: starting with 3 cores,
- G = with protective conductor GN-YE,
- x = without protective conductor
- Cores stranded with optimal lay lengths
- Outer sheath: thermoplastic compound acc. to DIN VDE 0207-363-8 / DIN EN 50363-8 (compound type TM7)
- Sheath colour: see datasheet
- Length marking: in metres
Properties
- halogen-free
- the materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Tests
- halogen-free acc. to DIN VDE 0285-525-1 / DIN EN 50525-1 Appendix B
- flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
- smoke density acc. to DIN VDE 0482-1034-1+2 / DIN EN 61034-1+2 / IEC 61034-1+2
- CPR class: Cca s1b d2 a1
- certifications and approvals:
- HAR
Notes
- the conductor is metrically (mm²) constructed, AWG numbers are approximated, and are for reference only
Application
- Halogen-free cable that releases little smoke and corrosive gases in the event of fire. For use in households and offices, including damp rooms, for applications involving medium mechanical stress (e.g. on household appliances such as hoovers, washing machines and refrigerators).
