Article specifications
| Part no. | 65120 |
|---|---|

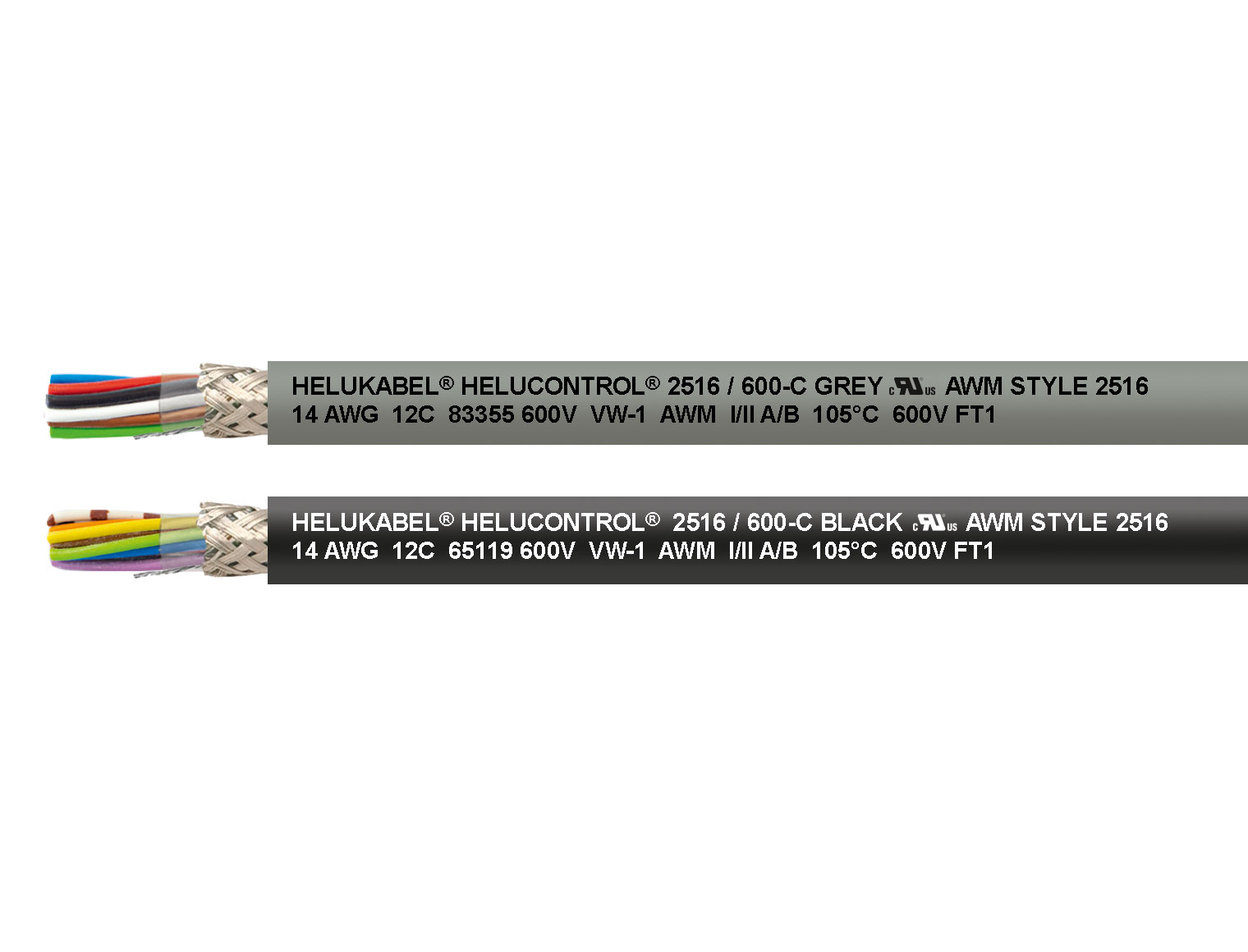

| Item description | HELUCONTROL® 2516 / 600-C BLACK 16 x 14 AWG |
| Sheath colour | black (RAL 9005) |
| Outer diameter, approx. (mm) | 18,2 |
| Copper factor per km | 510,3 |
| Weight, approx. (kg/km) | 870,0 |
| Metres per packaging unit | 500, 1000 |
| Custom cut lengths available | yes |
| EAN / GTIN | 4060892096372 |
| Customs tariff number | 85444995 |
Manufacturer technical information
PVC control and connection cable acc. to UL-Std. 758 (AWM) Style 2516, CSA-Std. C22.2 No. 210 - AWM I/II A/B
Temperature range
flexible -10°C to +105°C
fixed -40°C to +105°C
fixed -40°C to +105°C
Nominal voltage
UL (AWM) AC 600 V
Test voltage core/core
2000 V
Breakdown voltage
4000 V
Coupling resistance
at 30 MHz, approx. 250 Ohm/km
Minimum bending radius
flexible 15x Outer-Ø
fixed 7.5x Outer-Ø
fixed 7.5x Outer-Ø
Cable Structure
- Copper wire tinned, finely stranded, AWG sizes
- Strand construction:
- 12 AWG: 70 x 0.247 mm
- 14 AWG: 44 x 0.247 mm
- Core insulation: PVC acc. to UL-Std. 1581 Tab. 50.182 (105°C)
- Core identification: see datasheet
- x = without protective conductor
- Cores stranded in layers with optimal lay lengths
- Foil wrapping
- Drain wire, tinned copper
- Screen: braided screen of tinned copper wires, approx. coverage 85%
- Outer sheath: PVC acc. to UL-Std. 1581 Tab. 50.182 (105°C), CSA-Std. C22.2 No. 210
- Sheath colour: see datasheet
Properties
- resistant to: oil, solvents, acids, alkalis
- the materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Tests
- flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2, UL VW-1, CSA FT1
Application
- UL-/CSA-approved, flexible control and connecting cable for use in machine tools, assembly lines, conveyor belts, plant construction, air conditioning systems, in iron and steel mills. EMC= Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and all-round large contact area of the copper braiding.
