Article specifications
| Part no. | 11022479 |
|---|---|

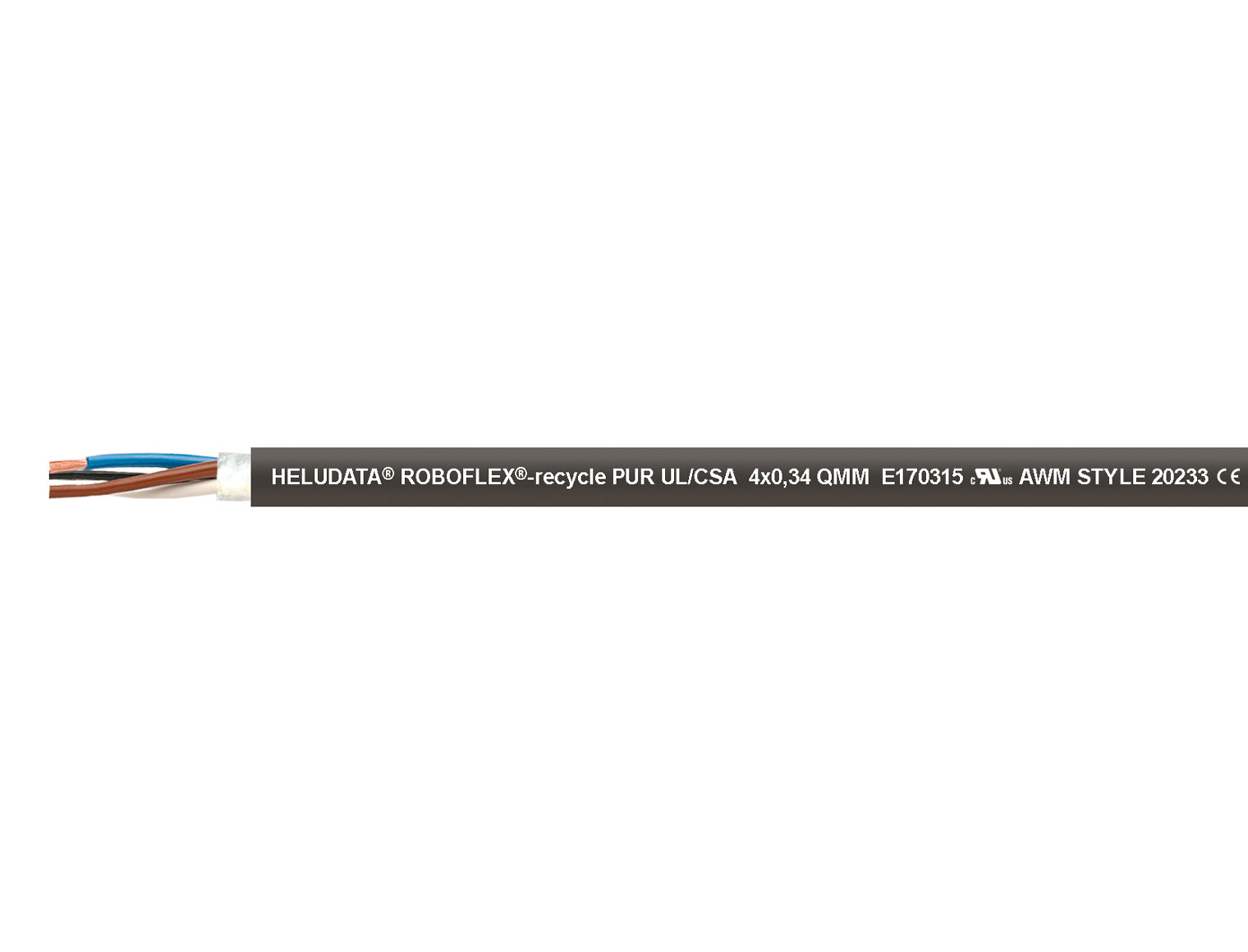

| Item description | HELUDATA® ROBOFLEX®-recycle PUR UL/CSA GREY 4 x 0,34 mm² |
| Sheath colour | grey (RAL 7001) |
| AWG, approx. | 22 |
| Outer diameter, approx. (mm) | 5,4 |
| Copper factor per km | 12,8 |
| Weight, approx. (kg/km) | 38,0 |
| Metres per packaging unit | 100, 500, 1000 |
| Custom cut lengths available | yes |
| EAN / GTIN | 4060892532351 |
| Customs tariff number | 85444995 |
Manufacturer technical information
Robot cable acc. to UL-Std. 758 (AWM) Style 20233, CSA-Std. C22.2 No. 210 - AWM I/II A/B
Temperature range
flexible -30°C to +105°C
fixed -40°C to +105°C
UL (AWM) to +80°C
fixed -40°C to +105°C
UL (AWM) to +80°C
Nominal voltage
VDE AC U0/U 300/300 V
UL (AWM) AC 300 V
UL (AWM) AC 300 V
Test voltage core/core
2000 V
Minimum bending radius
fixed 5x Outer-Ø
flexible: see properties
flexible: see properties
Cable Structure
- Copper wire bare, extra finely stranded
- Strand construction:
- 0.34 mm²: approx. 42 x 0.1 mm
- Core insulation: TPE
- Core identification:
- 3 core(s): brown, blue, black
- 4 core(s): brown, blue, black, white
- 5 core(s): brown, blue, black, white, grey
- x = without protective conductor
- Cores stranded with optimally matched lay lengths
- Fleece wrapping
- Outer sheath: Special grade of full polyurethane
- Sheath colour: see datasheet
- Length marking: in metres
Properties
- resistant to: oil, UV radiation, ozone, oxygen, weathering effects, hydrolysis, microbes, coolants, hydraulic fluids, acids, alkalis, greases, seawater and wastewater, welding sparks
- highly abrasion-resistant, notch-resistant, tear-resistant, cut-resistant, wear-resistant, low adhesion
- for outdoor use
- torsion rated
- suitable for use in drag chains
- Torsion parameters
- Acceleration (max.): 60 °/s²
- Velocity (max.): 180 °/s
- Minimum bending radius: 10x Outer-Ø
- Torsional stress up to +/- 360 °/m: 10 Mio. Cycles (min.)
- Drag chain parameters
- Acceleration (max.): 10 m/s²
- Velocity (max.), unsupported: 3 m/s
- Velocity (max.), gliding: 2 m/s
- Traverse path (max.): 10 m
- Minimum bending radius (Traverse path ≤ 3m): 10x Outer-Ø
- Minimum bending radius (Traverse path > 3m): 12.5x Outer-Ø
- Bending cycles (min.): 10 Mio.
- halogen-free
- recyclable
- the materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Tests
- halogen-free acc. to DIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1
- flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
- oil-resistant acc. to DIN VDE 0473-811-404 / DIN EN 60811-404 / IEC 60811-404
- UV-resistant acc. to DIN EN ISO 4892-2
- weather-resistant acc. to DIN EN ISO 4892-2
Notes
- the conductor is metrically (mm²) constructed, AWG numbers are approximated, and are for reference only
- for use in energy supply systems:
- 1) the assembly instructions must be observed
- 2) for special applications, we recommend contacting us and using our data entry form for energy supply systems
Application
- Welding spark and oil-resistant sensor cable for use in robots (torsional load) as well as in drag chains (dynamic load); for applications in automation technology, machine and plant engineering, assembly and welding robots, machine tools, foundries and rolling mills. Temperature resistance of up to 105°C enables use in environments close to engines and other areas with increased heat radiation. Highly abrasion and notch resistant outer sheath ensures long service life and economy. Recyclable jacket material offers advantages in operational environmental protection management.
