HELUPOWER® ROBOFLEX®-D PUR UL/CSA GREY 4 G 1,5 mm²

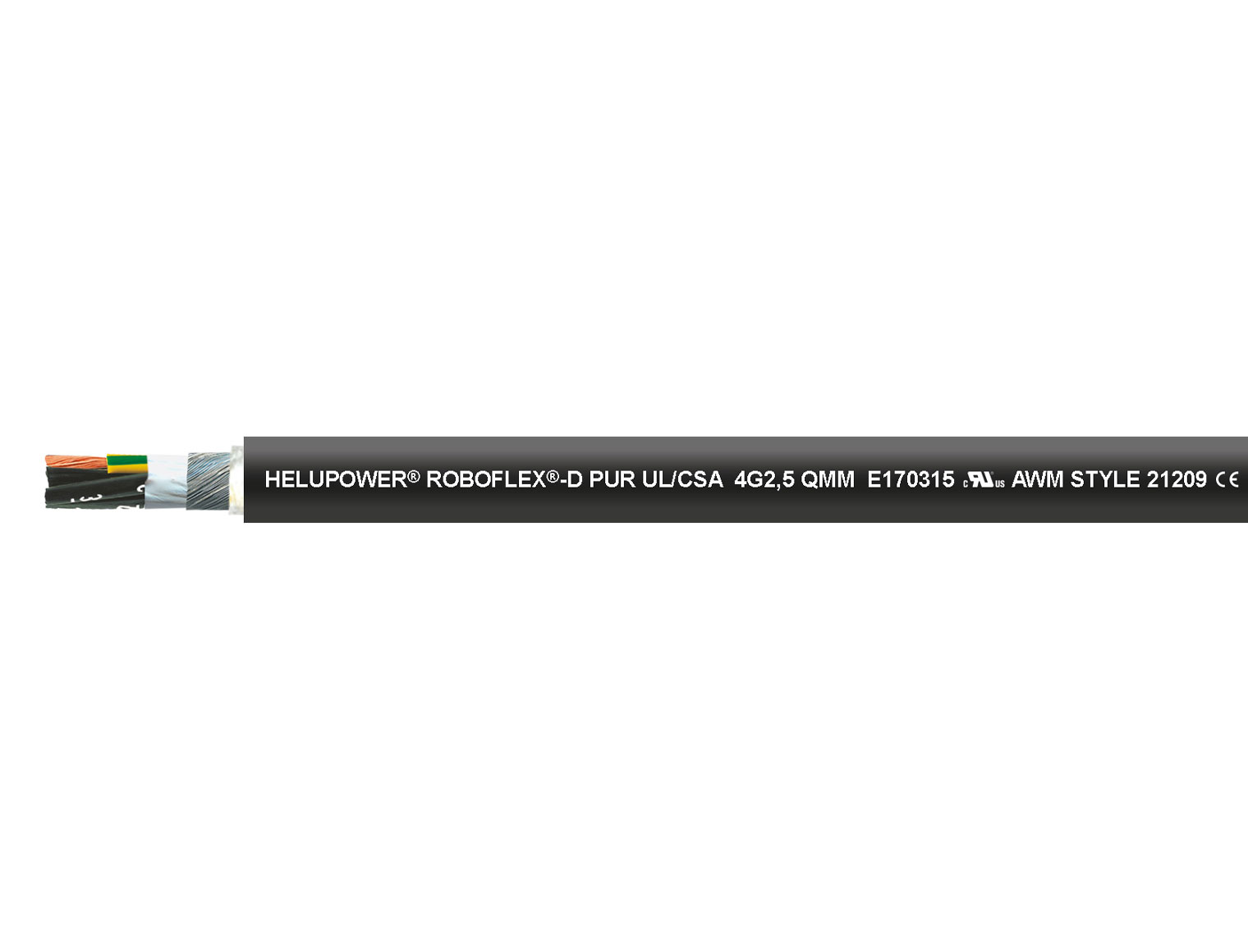

Illustrative product image. Check the selected configuration and technical specifications.

Price and availability on request

Tell us the required configuration and quantity. We will confirm the price and supply options in your quote.

PUR robot cable · EMC-preferred type

Request a quote

Request a quote with no obligation — no account needed.

HELUPOWER® ROBOFLEX®-D PUR UL/CSA GREY 4 G 1,5 mm²SKU: 11022459

At a glance

Part no.	11022459
Item description	HELUPOWER® ROBOFLEX®-D PUR UL/CSA GREY 4 G 1,5 mm²
Sheath colour	grey (RAL 7001)
AWG, approx.	16
Outer diameter, approx. (mm)	8,8
Copper factor per km	79,9
Weight, approx. (kg/km)	133,0
Metres per packaging unit	100, 500, 1000
Custom cut lengths available	yes
EAN / GTIN	4060892532153
Customs tariff number	85444995

PUR robot cable acc. to UL-Std. 758 (AWM) Style 21209, CSA-Std. C22.2 No. 210 - AWM I/II A/B

flexible -30°C to +90°C
fixed -40°C to +90°C

VDE AC U₀/U 600/1000 V
UL (AWM) AC 1000 V

3000 V

fixed 5x Outer-Ø
flexible: see properties

Cable Structure

Copper wire bare, extra finely stranded acc. to DIN VDE 0295 Class 6 / IEC 60228 Class 6
Core insulation: PP
Core identification acc. to DIN VDE 0293-334, black cores with consecutive labeling in white digits
G = with protective conductor GN-YE
Cores stranded with optimally matched lay lengths
Fleece wrapping
Screen: helically wound tinned copper wires, approx. coverage 90%
Fleece wrapping
Outer sheath: Special grade of full polyurethane
Sheath colour: see datasheet
Length marking: in metres

Properties

resistant to: oil, UV radiation, ozone, oxygen, weathering effects, hydrolysis, microbes, coolants, hydraulic fluids, acids, alkalis, greases, seawater and wastewater
highly abrasion-resistant, notch-resistant, tear-resistant, cut-resistant, wear-resistant, low adhesion
smooth, high-quality core insulation for eased sliding and optimized core stranding ensure long service-life within applications that request combined bending and torsion movements
for outdoor use
torsion rated
suitable for use in drag chains
Torsion parameters
Acceleration (max.): 60 °/s²
Velocity (max.): 180 °/s
Minimum bending radius: 10x Outer-Ø
Torsional stress up to +/- 180 °/m: 5 Mio. Cycles (min.)
Drag chain parameters
Acceleration (max.): 10 m/s²
Velocity (max.), unsupported: 3 m/s
Velocity (max.), gliding: 2 m/s
Traverse path (max.): 10 m
Minimum bending radius (Traverse path ≤ 3m): 10x Outer-Ø
Minimum bending radius (Traverse path > 3m): 12.5x Outer-Ø
Bending cycles (min.): 5 Mio.
halogen-free
the materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers

Tests

halogen-free acc. to DIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1
flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2, UL VW-1, CSA FT1
oil-resistant acc. to DIN VDE 0473-811-404 / DIN EN 60811-404 / IEC 60811-404
UV-resistant acc. to DIN EN ISO 4892-2
weather-resistant acc. to DIN EN ISO 4892-2

Notes

the conductor is metrically (mm²) constructed, AWG numbers are approximated, and are for reference only
for use in energy supply systems:
1) the assembly instructions must be observed
2) for special applications, we recommend contacting us and using our data entry form for energy supply systems

Application

Power supply cable designed for combined torsion and bending movements; for use in assembly and welding robots, in material handlings and automation centres, in transport and conveyor systems, on rotary and swivel tables and wherever a defined cable routing with only alternating bending movements is not applicable, but 3D-movements and torsional load have an impact on the cable; for applications with the highest requirements on mechanical, chemical and thermal resilience. EMC= Electromagnetic compatibility; to optimize the EMC features we recommend a large round contact of the D-screen on both ends.
