Article specifications
| Part no. | 17009722 |
|---|---|

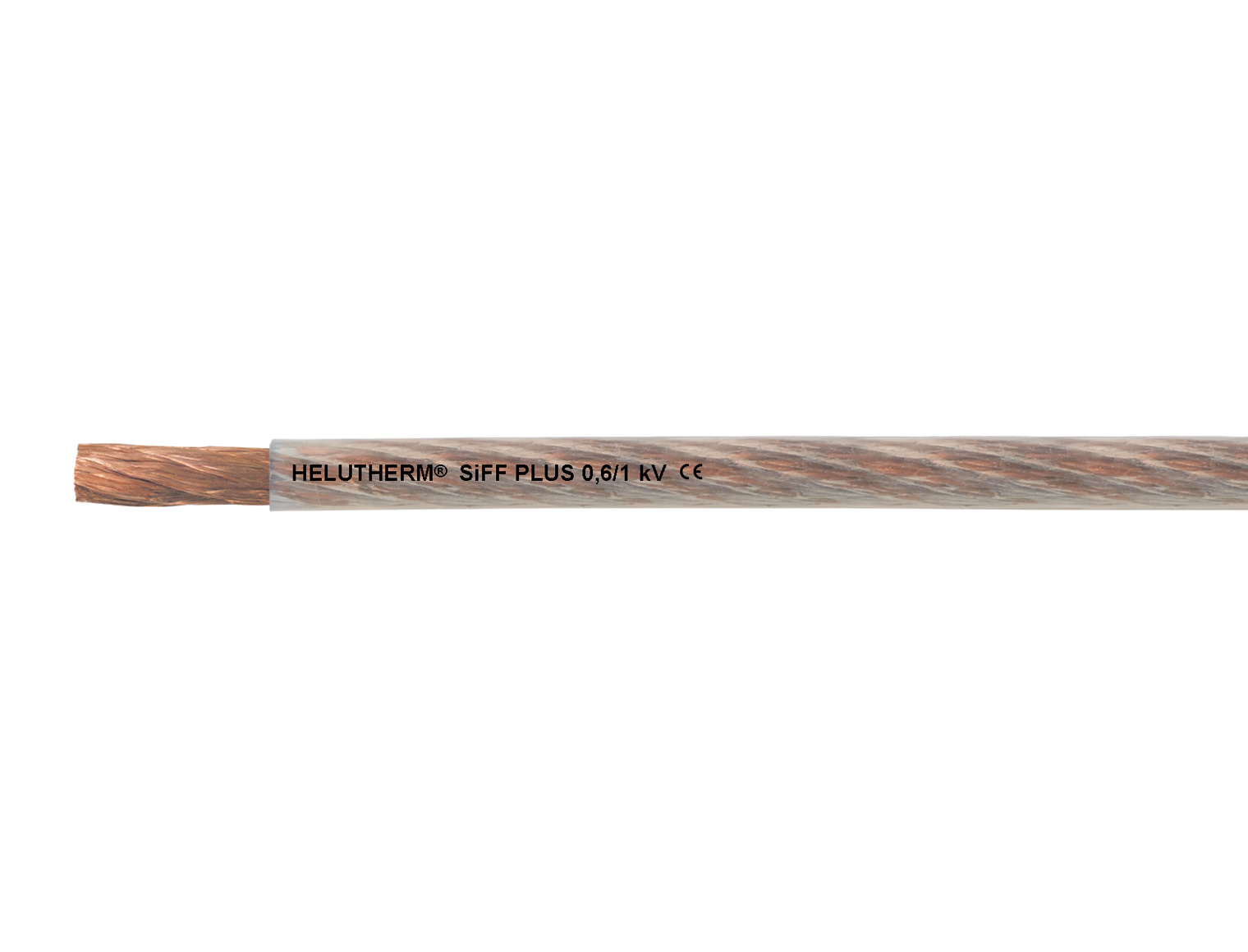

| Item description | HELUTHERM® SiFF PLUS 0,6/1 kV 1 x 10 mm² |
| AWG, approx. | 8 |
| Outer diameter, approx. (mm) | 7,6 |
| Copper factor per km | 96,0 |
| Weight, approx. (kg/km) | 132,0 |
| Metres per packaging unit | - |
| Custom cut lengths available | yes |
| EAN / GTIN | 4060892634109 |
| Customs tariff number | 85444995 |
Manufacturer technical information
Single core
Temperature range
fixed -60°C to +180°C
Short circuit temperature at the conductor
+350°C
Nominal voltage
AC U0/U 600/1000 V
Test voltage
3500 V
Minimum bending radius
flexible 6x Outer-Ø
fixed 3x Outer-Ø
fixed 3x Outer-Ø
Cable Structure
- Copper wire bare, super finely stranded acc. to DIN VDE 0295 Class 6 Col. 5 resp. 7 / IEC 60228 Class 6 Col. 5 resp. 7
- Core insulation: silicone
- Core identification: transparent
Properties
- halogen-free
Tests
- halogen-free acc. to DIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1
Notes
- the conductor is metrically (mm²) constructed, AWG numbers are approximated, and are for reference only
Application
- This extremely flexible, heat-resistant silicone single core is used in switchgear and distribution boards, in industrial furnaces, machine building as well as in railway, battery and earthing systems.
