Article specifications
| Part no. | 92781 |
|---|---|
| Item description | HELUTOP® HT NPT 1/2" grey (RAL 7035) (KD 6,0-12,0 mm) SW 24 |
| Thread type | NPT |
| Size | NPT 1/2" |
| Colour | grey (RAL 7035) |
| Cable diameter range (mm) | 6,0 - 12,0 |
| Thread length (mm) | 15,0 |
| Width across flats (mm) | 24 |
| Pieces per packaging unit | 50 |
| Individual quantities available | no |
| EAN / GTIN | 4060892348679 |
| Customs tariff number | 39269097 |
Manufacturer technical information

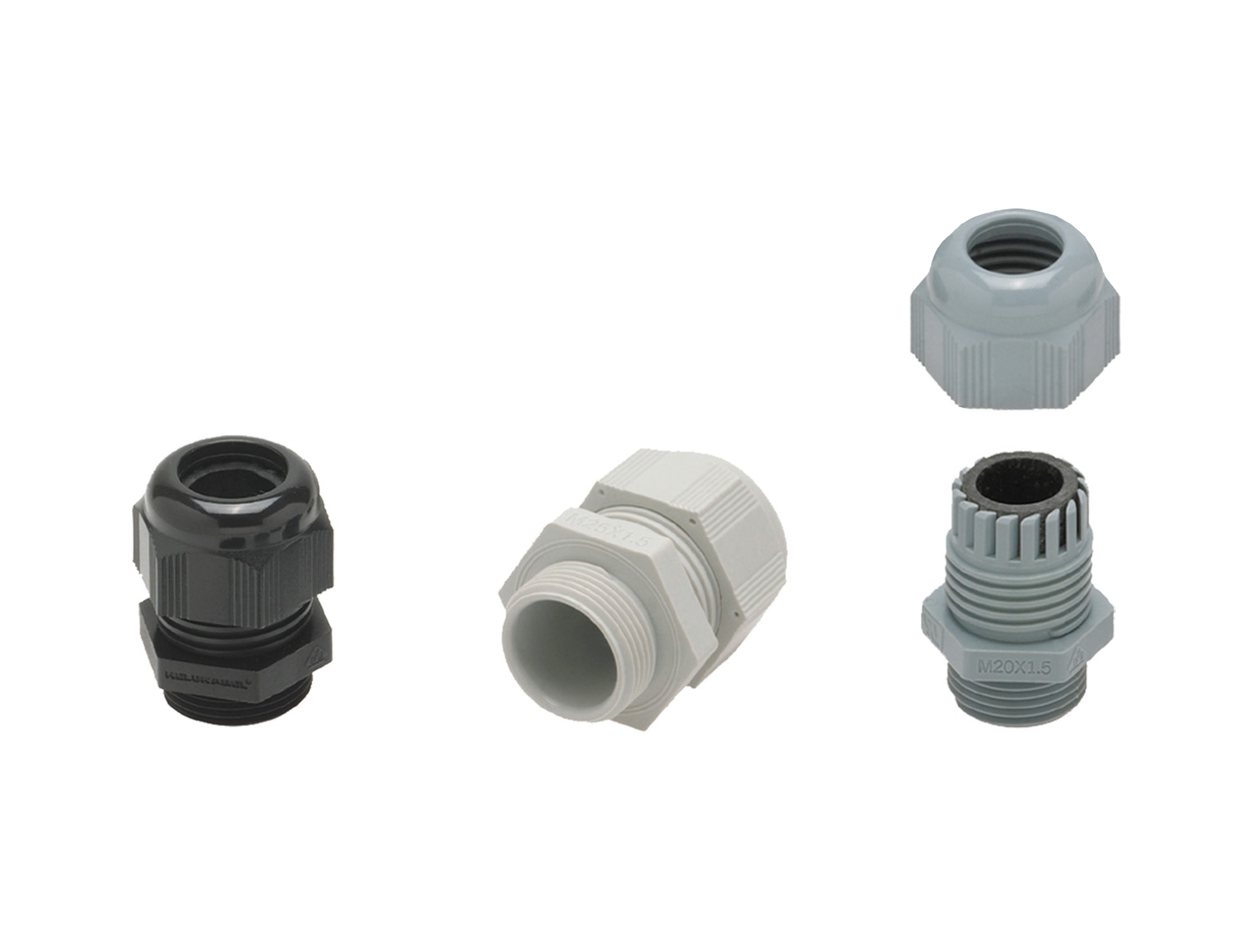

PA plastic cable gland
Temperature range
-20°C to +100°C
short term -30°C to +150°C
short term -30°C to +150°C
Protection class
IP 68 - 5 bar / IP 66
Structure
- Material: Polyamide (PA) 6
- Seal: Chloroprene rubber (CR)
Properties
- phosphor-free
- silicone-free
- cadmium-free
- optimum strain relief through clamping lamella
- easy to assemble, time and cost savings
- watertight, dust-tight
- large clamping areas
- with vibration protection
Tests
- Test standard EN 62444
Notes

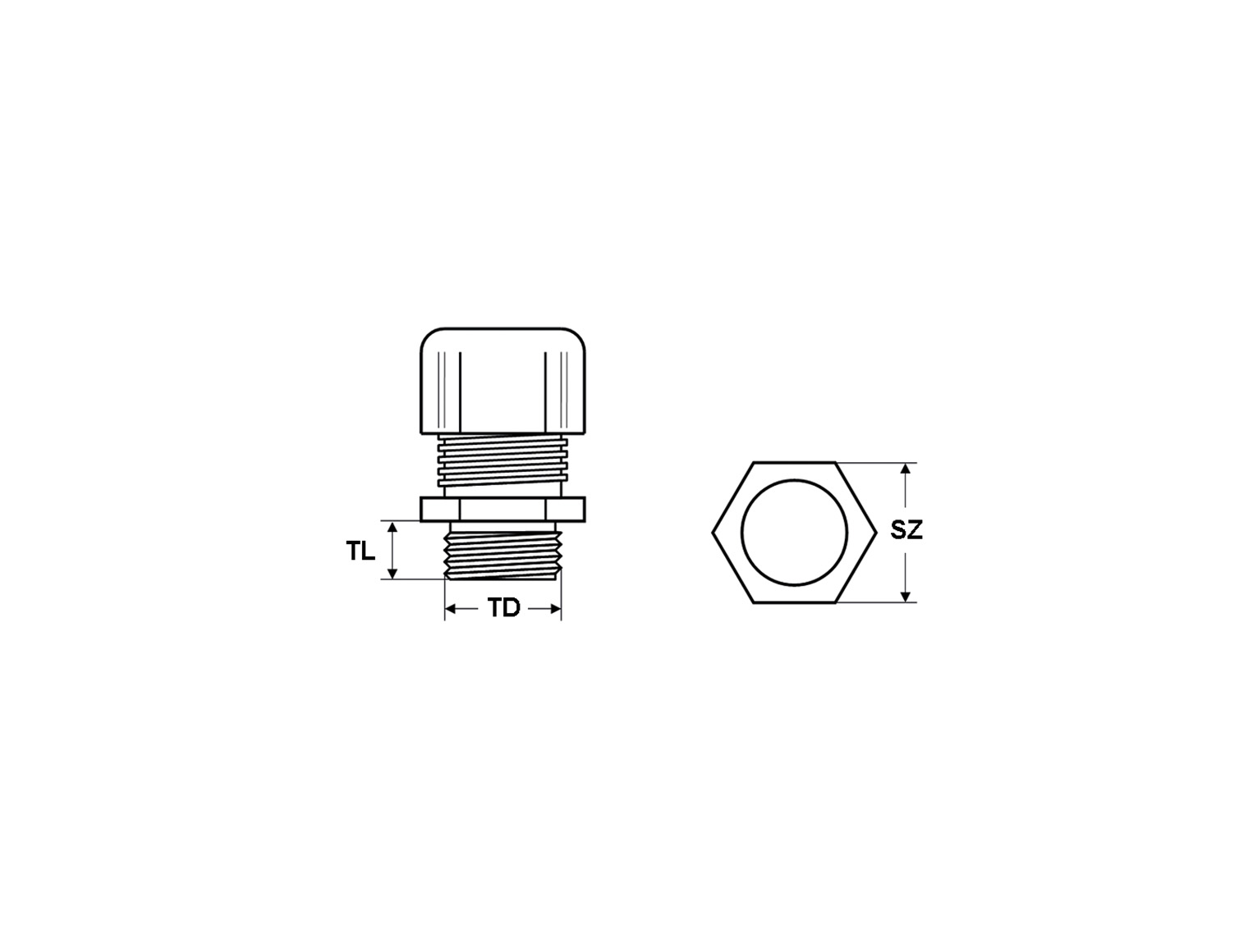

- Legend:
- Dimensions
- TD - Thread Diameter
- TL - Thread Length
- SZ - Spanner Size
Application
- Machine and plant construction
- Robotics
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
