Article specifications
| Part no. | 908102 |
|---|---|

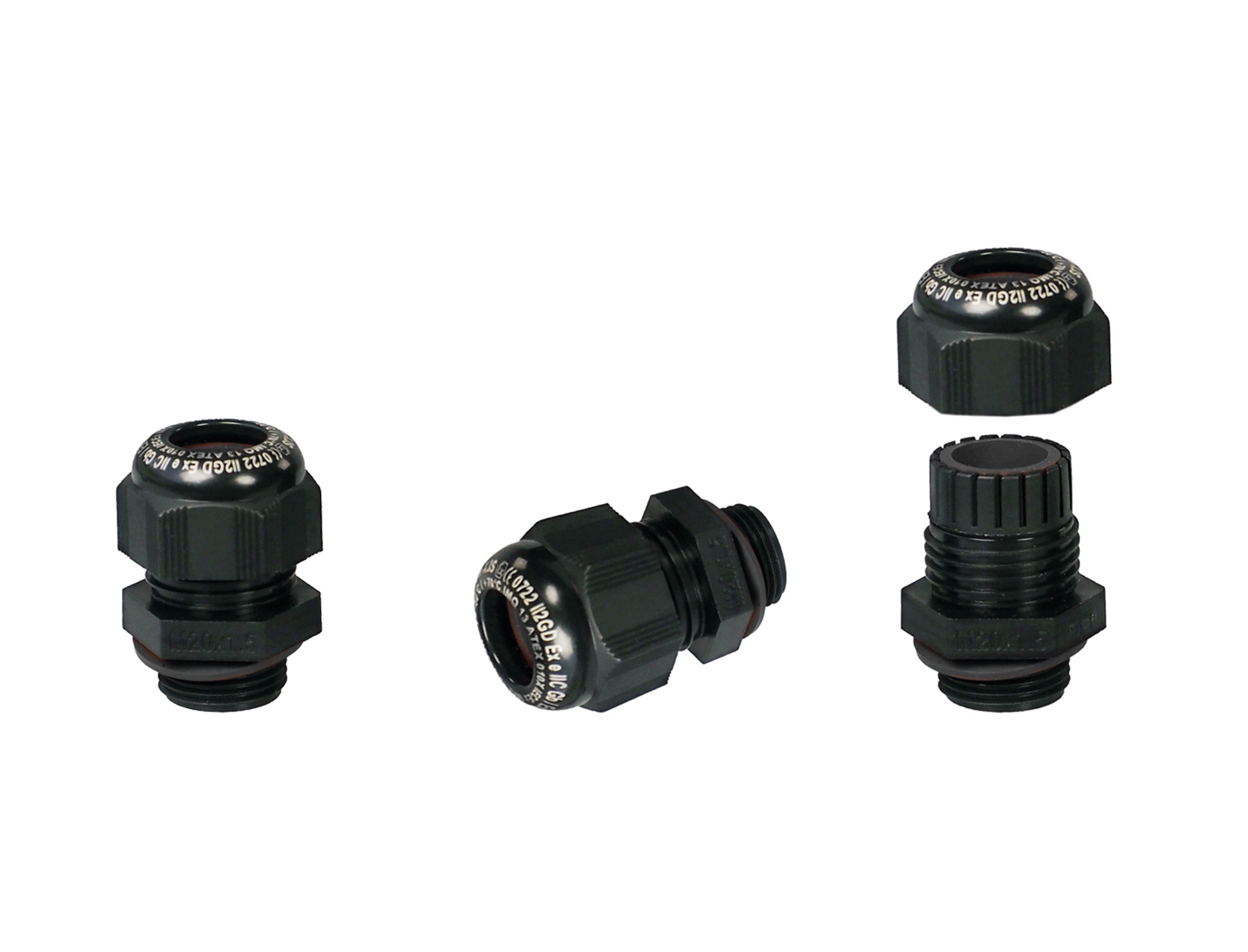

| Item description | HELUTOP® HT-PA-EX-Plus M40 x 1,5 black (KD 21,0 - 32,0 mm) SW 53 GL 18 |
| Thread type | metrisch |
| Size | M40 x 1,5 |
| Colour | black (RAL 9005) |
| Cable diameter range (mm) | 21,0 - 32,0 |
| Thread length (mm) | 18,0 |
| Width across flats (mm) | 53 |
| Height | 57,9 |
| mm | 10 |
| Pieces per packaging unit | no |
| Individual quantities available | 4060892350696 |
| EAN / GTIN | 39269097 |
Manufacturer technical information
PA EX cable gland
Temperature range
-40°C to +70°C
Protection class
IP 66 / IP 68
Impact-resistant
7 Joule
Structure
- Material: Polyamide (PA) 6
- Seal: Chloroprene rubber (CR)
- Flat seal: Chloroprene rubber (CR)
Properties
- phosphor-free
- silicone-free
- cadmium-free
- optimum strain relief through clamping lamella
- easy to assemble, time and cost savings
- watertight, dust-tight
- large clamping areas
Tests
- Test standard EN 60079-0:2012, EN 60079-7:2007, EN 60079-11:2012, EN 60079-31:2014, IEC 60079-0:2011, IEC 60079-7:2006, IEC 60079-11:2011, IEC 60079-31:2013
Notes
- For instrinsically safe area type "i", in blue on request.
- Certificate of Conformity: IMQ 13 ATEX 010 X
- IECEx IMQ 13.0003X
- Approval: EX II 2GD
- Ex e IIC Gb/Ex tb IIIC Db IP 66/68

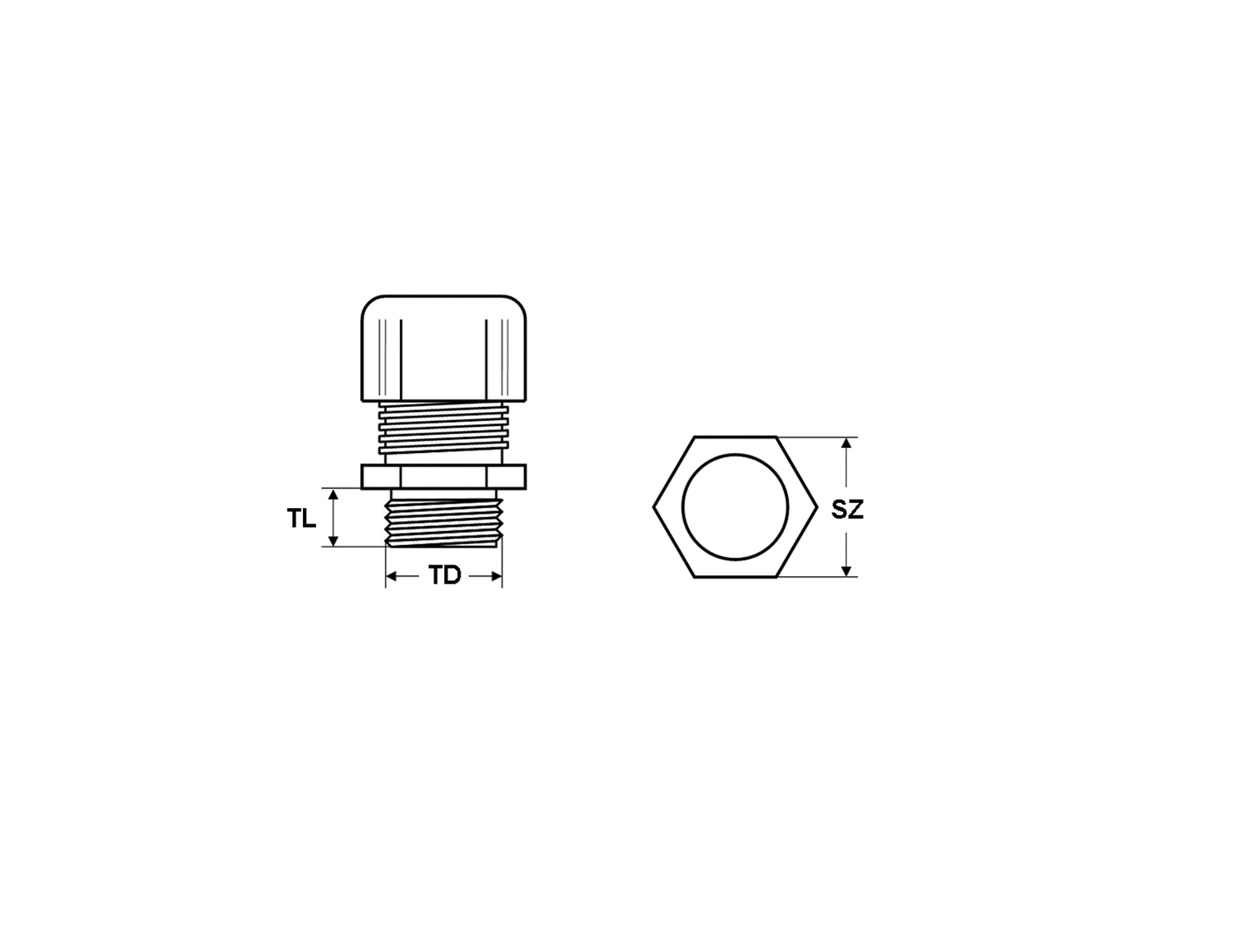

- Legend:
- Dimensions
- TD - Thread Diameter
- TL - Thread Length
- H - Height
- SZ - Spanner Size
Application
- Zone 1
- Zone 2
- Zone 21
- Zone 22
- IIA
- IIB
- IIC
