Article specifications
| Part no. | 93941 |
|---|---|

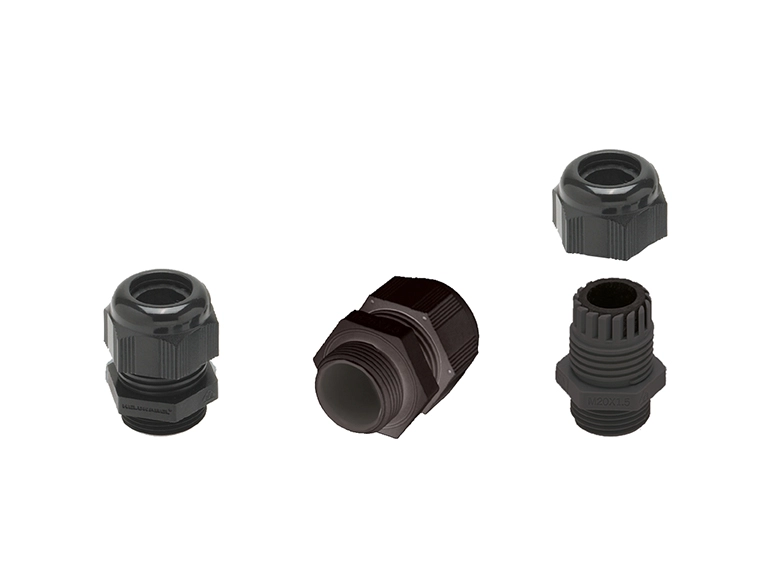

| Item description | HELUTOP® HT UV M32 x 1,5 black (KD 15,0-21,0 mm) SW 36 |
| Thread type | metrisch |
| Size | M32 x 1,5 |
| Colour | black (RAL 9005) |
| Cable diameter range (mm) | 15,0 - 21,0 |
| Thread length (mm) | 10,0 |
| Width across flats (mm) | 36 |
| Pieces per packaging unit | 25 |
| Individual quantities available | no |
| EAN / GTIN | 4060892348617 |
| Customs tariff number | 39269097 |
Manufacturer technical information
PA plastic cable gland
Temperature range
-20°C to +100°C
short term -30°C to +150°C
short term -30°C to +150°C
Protection class
IP 68 - 5 bar / IP 66
Structure
- Material: Polyamide (PA) 6
- Seal: Chloroprene rubber (CR)
Properties
- phosphor-free
- silicone-free
- cadmium-free
- optimum strain relief through clamping lamella
- easy to assemble, time and cost savings
- watertight, dust-tight
- large clamping areas
- with vibration protection
Tests
- Test standard EN 62444
Notes

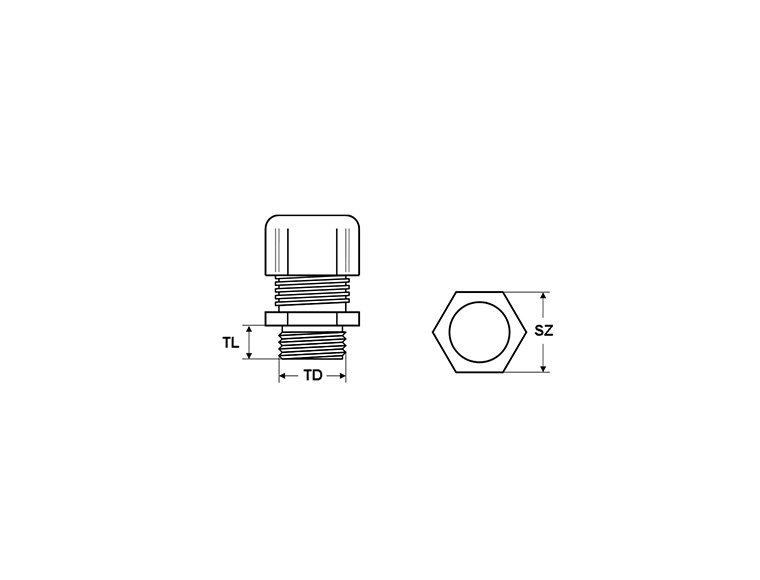

- Legend:
- Dimensions
- TD - Thread Diameter
- TL - Thread Length
- SZ - Spanner Size
Application
- Machine and plant construction
- Robotics
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
