Article specifications
| Part no. | 905183 |
|---|---|
| Item description | HELUTOP® MS-EP4 M20 x 1,5 (KD 6,0-12,0 mm) SW 22 GL 6 |
| Thread type | metrisch |
| Size | M20 x 1,5 |
| Cable diameter range (mm) | 6,0 - 12,0 |
| Thread length (mm) | 6,0 |
| Width across flats (mm) | 22 |
| Pieces per packaging unit | 50 |
| Individual quantities available | no |
| EAN / GTIN | 4060892352294 |
| Customs tariff number | 85369095 |
Manufacturer technical information

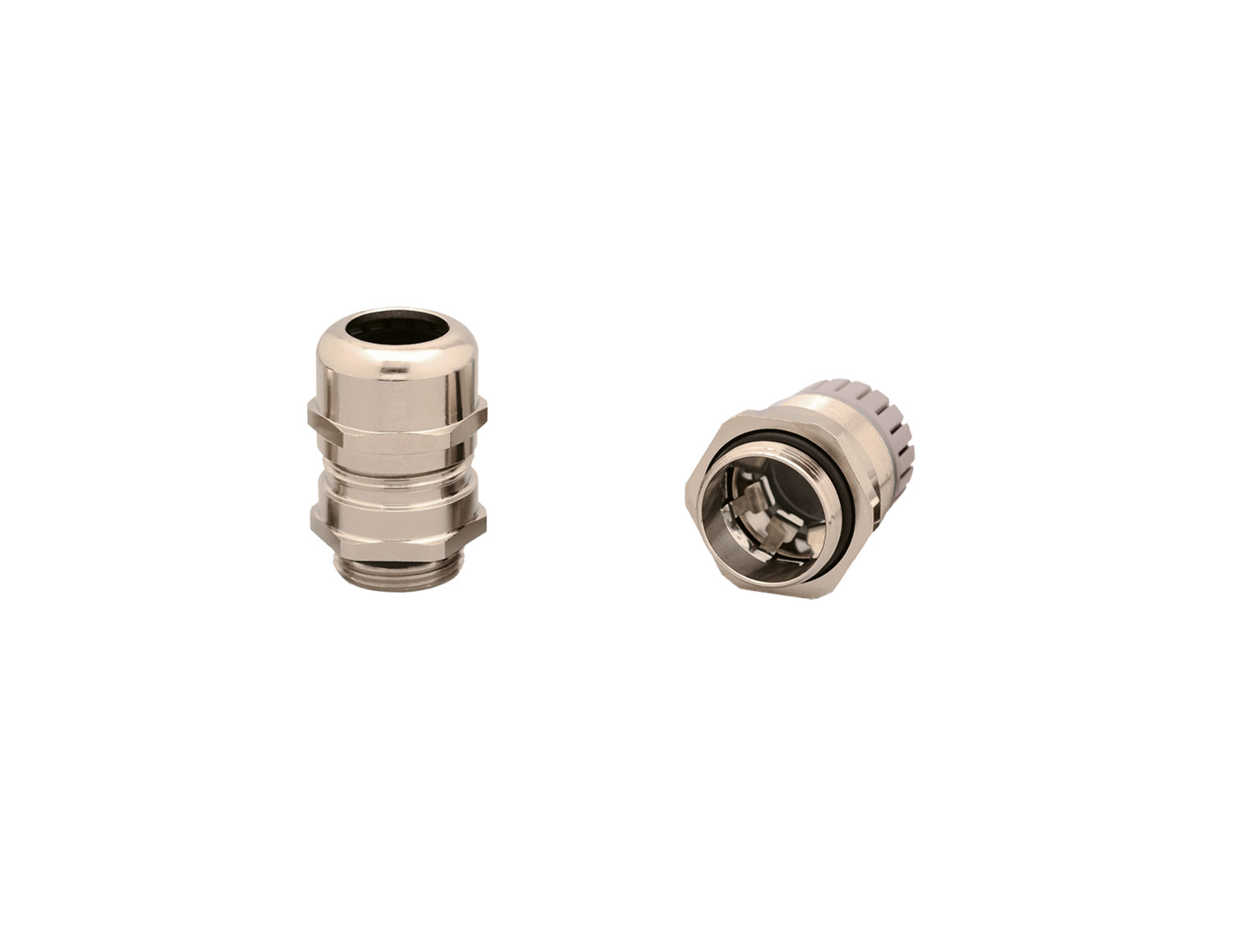

Nickel plated brass EMC cable gland
Temperature range
-20°C to +100°C
Protection class
IP 68 - 5 bar
Structure
- Material: Brass, nickel plated
- Contact system: Copper-Beryllium
- Clamp: Polyamide (PA) 6
- Seal: Chloroprene rubber (CR)
- O-ring: Nitrile butadiene rubber (NBR)
- with integrated contact system
Properties
- optimum strain relief through clamping lamella
- easy to assemble, time and cost savings
- watertight, dust-tight
- excellent vibration resistance
- large clamping areas
- automatic secure connection when closed
- excellent screening attenuation and current discharge
Tests
- Test standard EN 62444
Notes

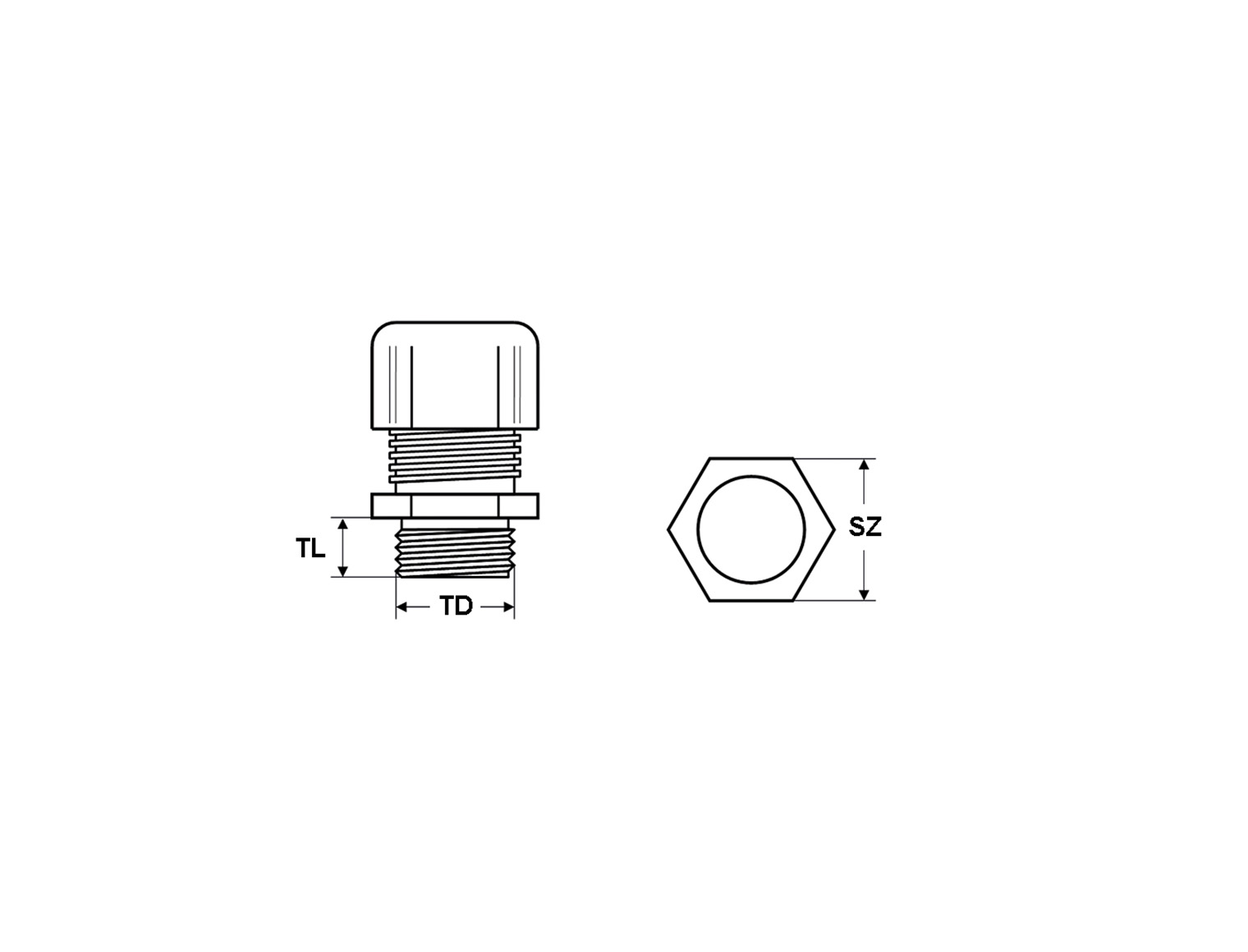

- Legend:
- Dimensions
- TD - Thread Diameter
- TL - Thread Length
- SZ - Spanner Size
Application
- Machine and plant construction
- Robotics
- Automation technology
- Vehicle construction and shipbuilding
- Railway technology
- Installation technology
- Control cabinet construction
