Article specifications
| Part no. | 707647 |
|---|---|

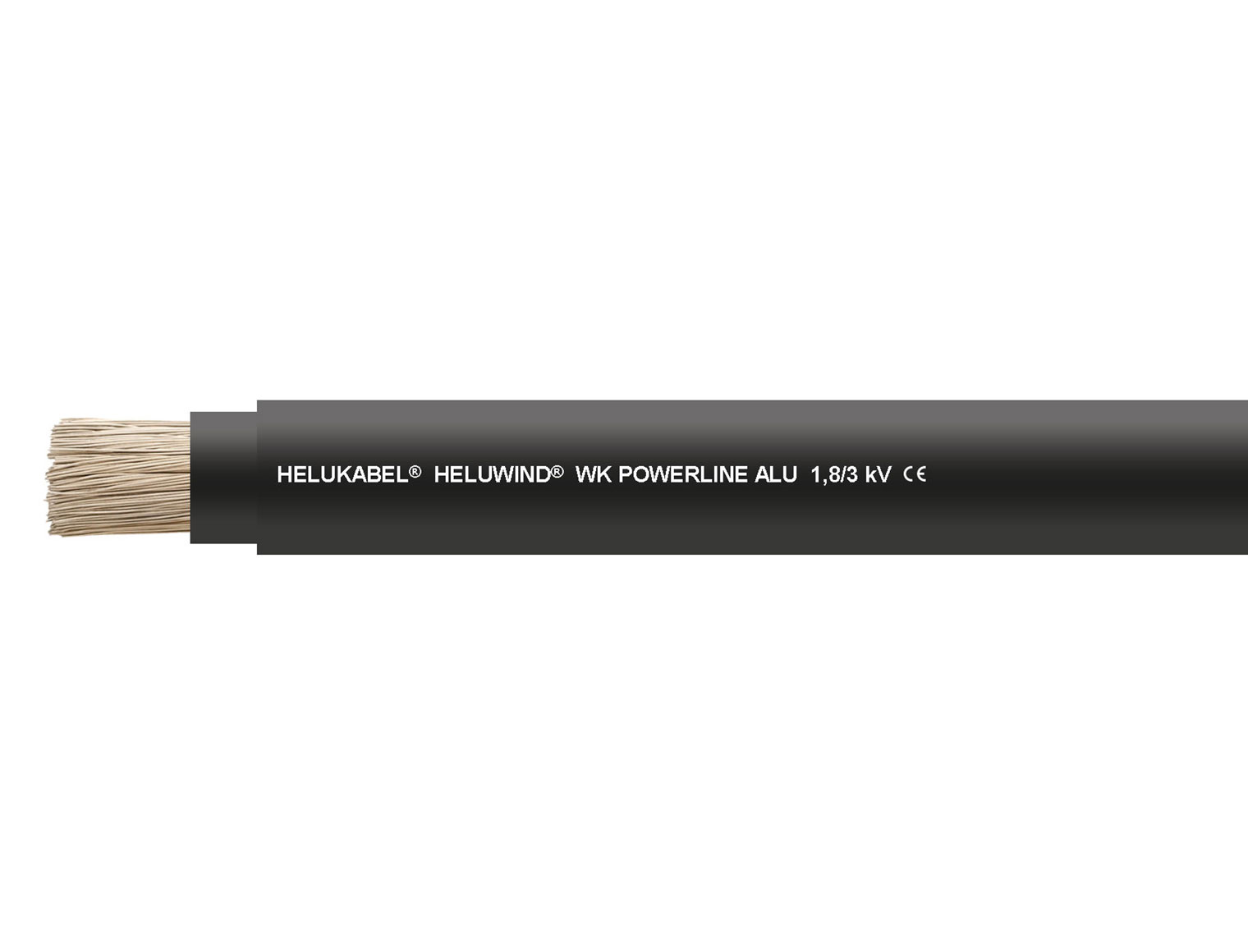

| Item description | HELUWIND® WK POWERLINE ALU 1,8/3 kV black 1 x 185 mm² |
| AWG, approx. | 350 kcmil |
| Outer diameter, approx. (mm) | 26 |
| Aluminium factor per km | 544,0 |
| Weight, approx. (kg/km) | 1020,0 |
| Metres per packaging unit | 500, 1000 |
| Custom cut lengths available | yes |
| EAN / GTIN | 4060892330377 |
| Customs tariff number | 85446090 |
Manufacturer technical information
Sheathed single core cable in alignment with DIN VDE 0250-813
Temperature range
flexible -20°C to +90°C
fixed -40°C to +90°C
fixed -40°C to +90°C
Permissible operating temperature of the conductor
+90°C
Nominal voltage
AC U0/U 1800/3000 V
Test voltage core/core
9000 V
Minimum bending radius
flexible 10x Outer-Ø
fixed 4x Outer-Ø
fixed 4x Outer-Ø
Cable Structure
- Al wire, finely stranded
- Core insulation: Special-PVC
- Core identification: black
- x = without protective conductor
- Outer sheath: Special-PVC
- Sheath colour: black
Properties
- resistant to: oil, UV radiation
- direct burial
- excellent flexibility allows for fast laying
- recyclable
Tests
- flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
Notes
- the conductor is metrically (mm²) constructed, AWG numbers are approximated, and are for reference only
- Further details, as well as information regarding custom solutions and suitable connection technology, can be found at [email protected]
Application
- Extremely flexible aluminium cable for use in many areas of energy and plant engineering. The high flexibility and low dead weight can significantly reduce labour time required for installation in the field. The HELUWIND® WK POWERLINE ALU 1,8/3 kV is also suitable for direct burial. This cable may only be handled using the certified HELUKABEL® C8 crimping method according to IEC 61238-1 Class A. The appropriate tools for this connection method are available for delivery (may also be rented).
