Article specifications
| Part no. | 97190 |
|---|---|
| Item description | HSK-PVDF PG 36 natural (KD 22,0-32,0 mm) |
| Thread type | PG |
| Size | PG 36 |
| Colour | natural |
| Cable diameter range (mm) | 22,0 - 32,0 |
| Thread length (mm) | 13,0 |
| Width across flats (mm) | 53 |
| Pieces per packaging unit | 10 |
| Individual quantities available | no |
| EAN / GTIN | 4060892364532 |
| Customs tariff number | 39269097 |
Manufacturer technical information

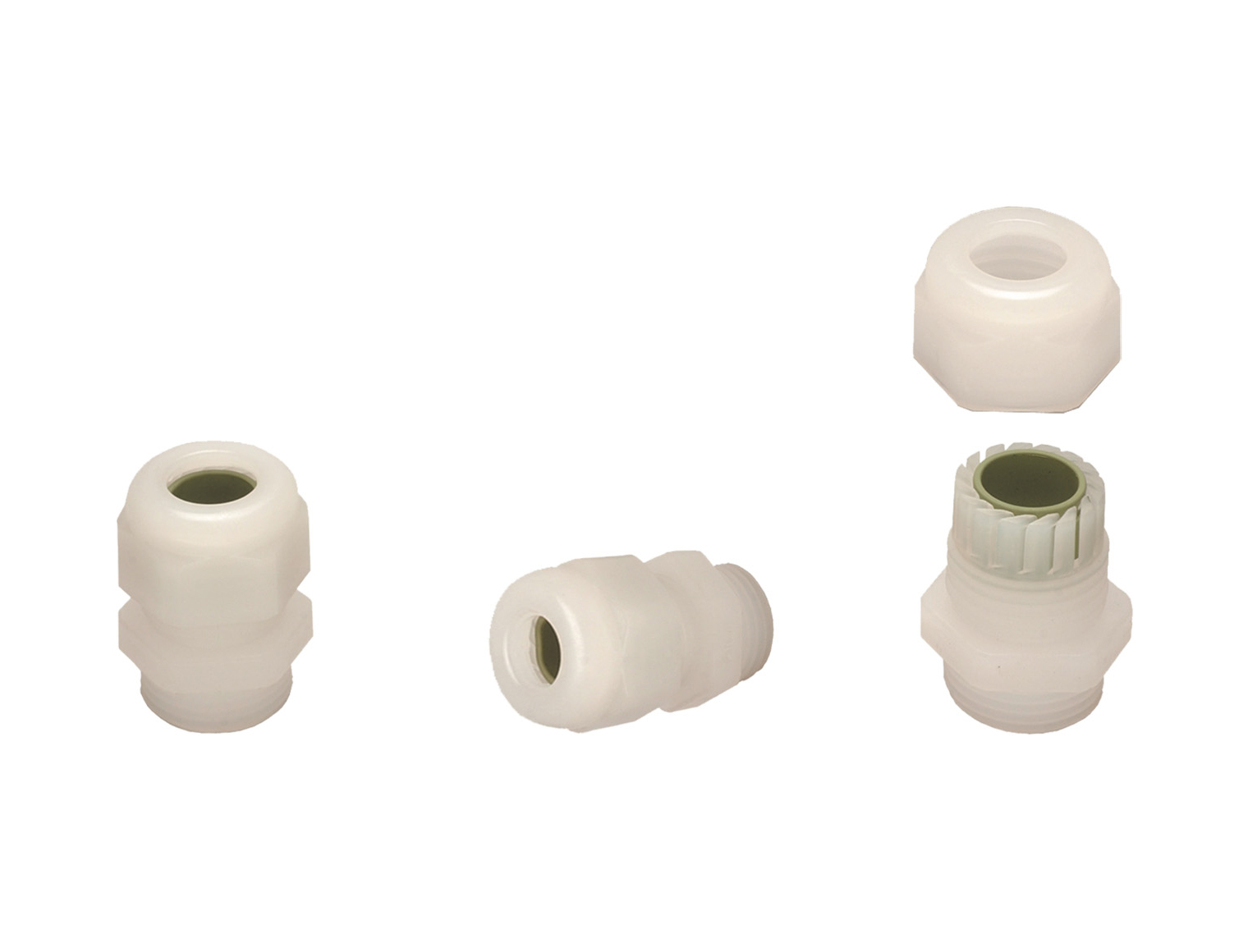

PVDF cable gland
Temperature range
-35°C to +150°C
Protection class
IP 68 - 10 bar / IP 69K - within the specific clamping range with additional o-ring
Structure
- Material: polyvinylidene fluoride (PVDF) V0 acc. to UL 94
- Clamp: polyvinylidene fluoride (PVDF)
- Seal: Fluoro rubber (FPM)
Properties
- phosphor-free
- silicone-free
- cadmium-free
- optimum strain relief through clamping lamella
- easy to assemble, time and cost savings
- watertight, dust-tight
- large temperature range
- large clamping areas
Tests
- Test standard EN 62444
- certifications and approvals:
- DNV
Notes

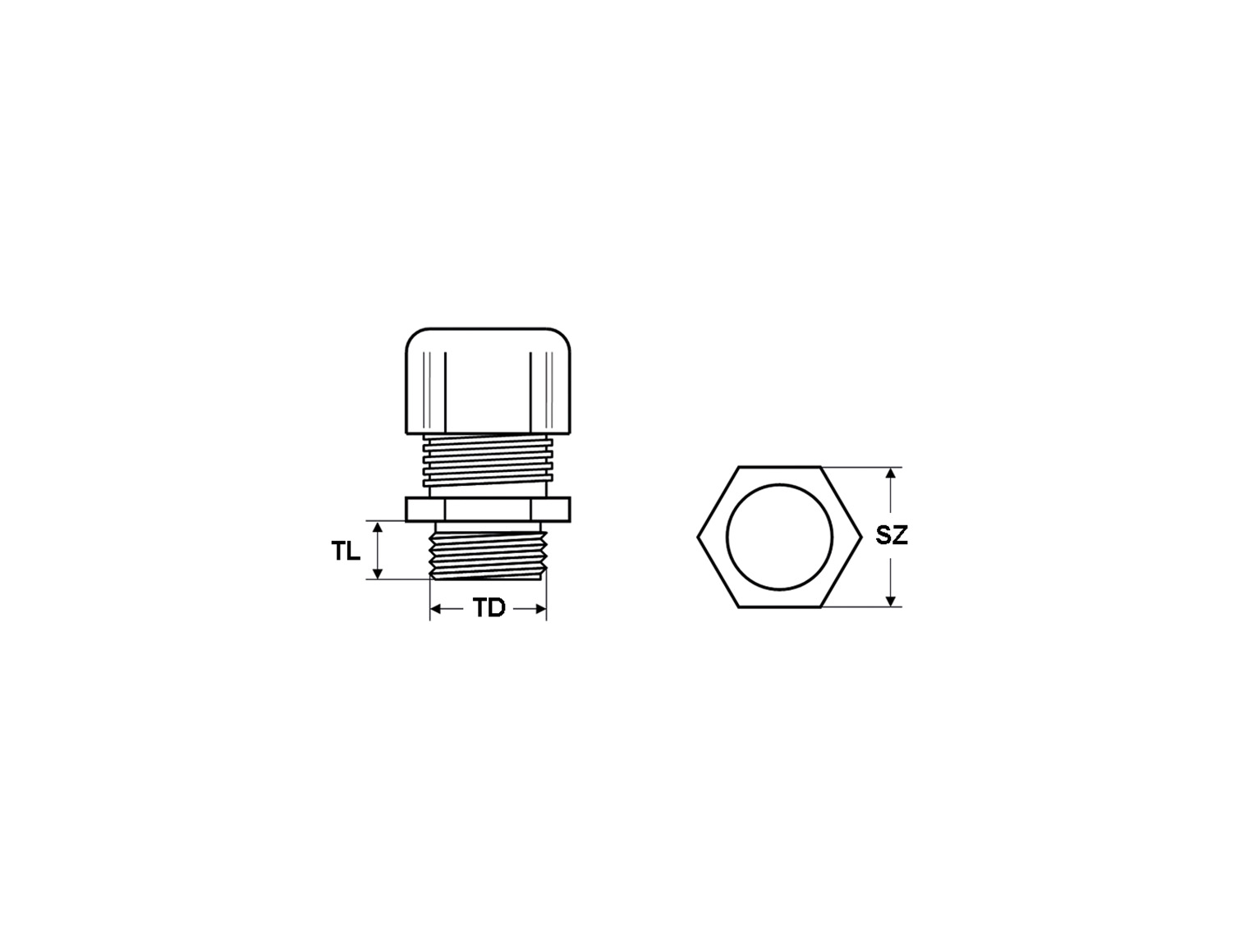

- Legend:
- Dimensions
- TD - Thread Diameter
- TL - Thread Length
- SZ - Spanner Size
Application
- For use in the chemical industry, at high temperatures, under long-term UV exposure. The cable gland to meet stringent requirements in technology.
