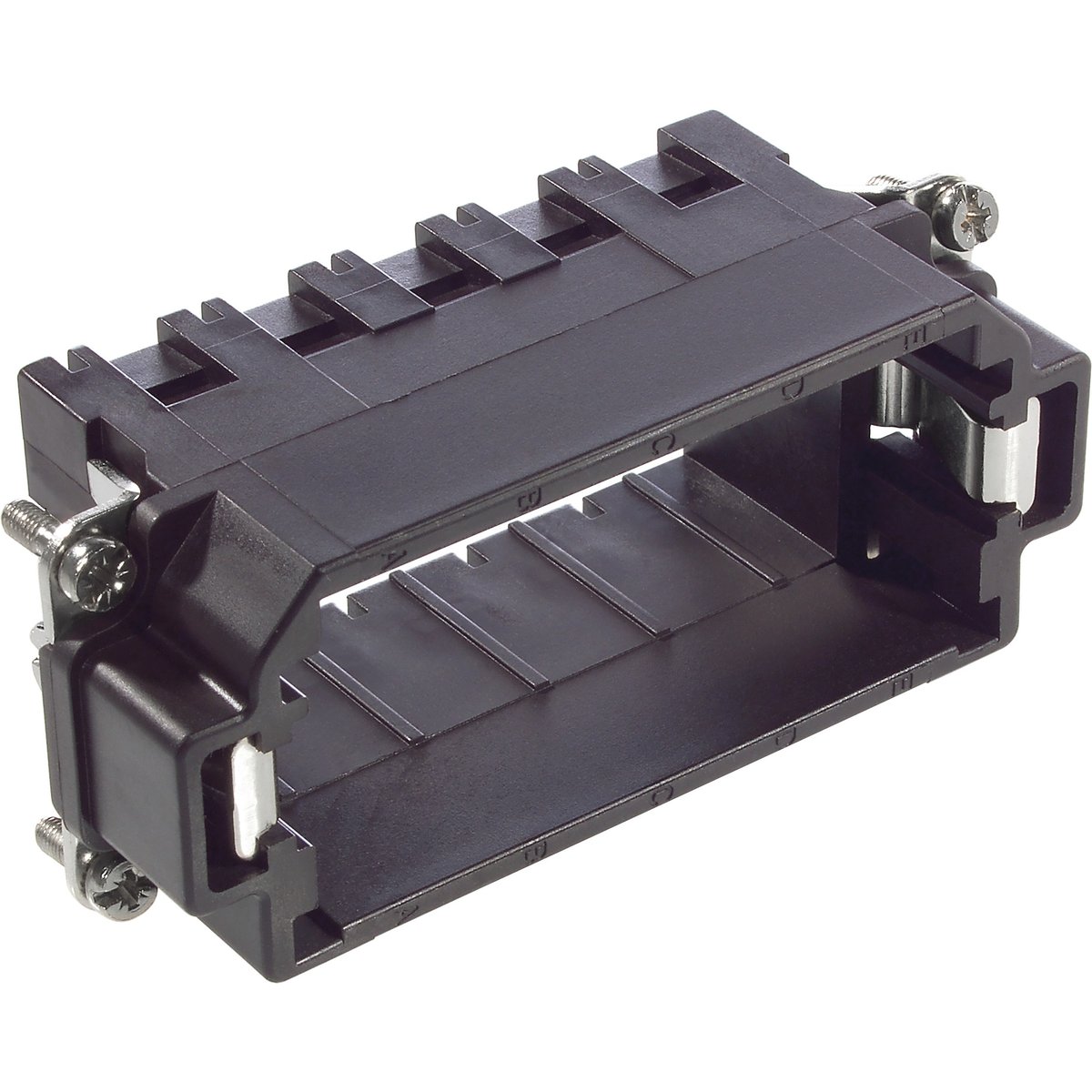

MC frame modular system; Number of contacts: 1; , With protective earth; Contacts included; Number of slots: 5;
Benefits
- Modular connectors offer a wide range of possible combinations and can be assembled flexibly – even to create hybrid connectors for different media.
- The module frame offers 5 slots for equipping with module inserts.
- With PE screw contact on the side to attach a protective earth by means of a ring eyelet. Connecting a protective earth via the module frame integrates the frame and the housing into the protective measures.
- Made of robust plastic (flammability class V-0 according to the UL94 testing procedure for the flammability of plastics).
- UL certification according to technical data enables the product to be used on the North American market.
Applications
- For the production of a modular connector.
- For use with the rectangular connector module inserts from the EPIC® MC series.
- For use with many EPIC® rectangular connector housings.
Technical specifications
General information
| Brand | EPIC® |
|---|---|
| Product type | MC frame modular system |
| Design size | 16B |
| Contacts included | Yes |
| Weight | 0.052 kg |
| Delivery Unit | 5 |
| Installation type | clip on |
| customs code | 85472000 |
Electrical parameters
| Protective earth integrated into insert | Yes |
|---|
Product design
| Number of contacts | 1 |
|---|---|
| Number of power contacts | 0 |
| Number of PE contacts | 1 |
| Number of signal contacts | 0 |
| Number of data contacts | 0 |
| Number of slots | 5 |
| Contact insert type | Plug |
| With wire protection | No |
| With protective earth | Yes |
| Premature PE contact | Yes |
| Shield contact | No |
| EMC shielding | No |
| Protective conductor contact type | Screw connection |
| Material | Polyamide |
| Material, short form | PA |
| Colour | black |
Product features
| Min. number of insertion cycles | 100 |
|---|---|
| Pollution degree | 3 |
| Short-term temperature peaks | 125 °C |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 100 °C |
| Flame-retardant | Yes |
| Flame retardance according to | UL 94 V-0 |
| Halogen-free | No |
Certifications and standards
| CE marking | No |
|---|---|
| UR recognised | Yes |
| UR certification | according to UL 1977 (e-file number: E75770) |
| UL category control number | ECBT2 |
| cUR recognised | Yes |
| cUR certification | according to CSA C22.2 No. 182.3 (e-file number: E75770) |
| cUR category control number | ECBT8 |
| CSA certified | No |
| VDE certified | Yes |
| VDE registration number | A870 |
| Product standard according to IEC | IEC 61984 |
| TÜV certified | No |
| Fire protection tested for railway vehicles | No |
Datasheets and certificates
Manufacturer notes
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
