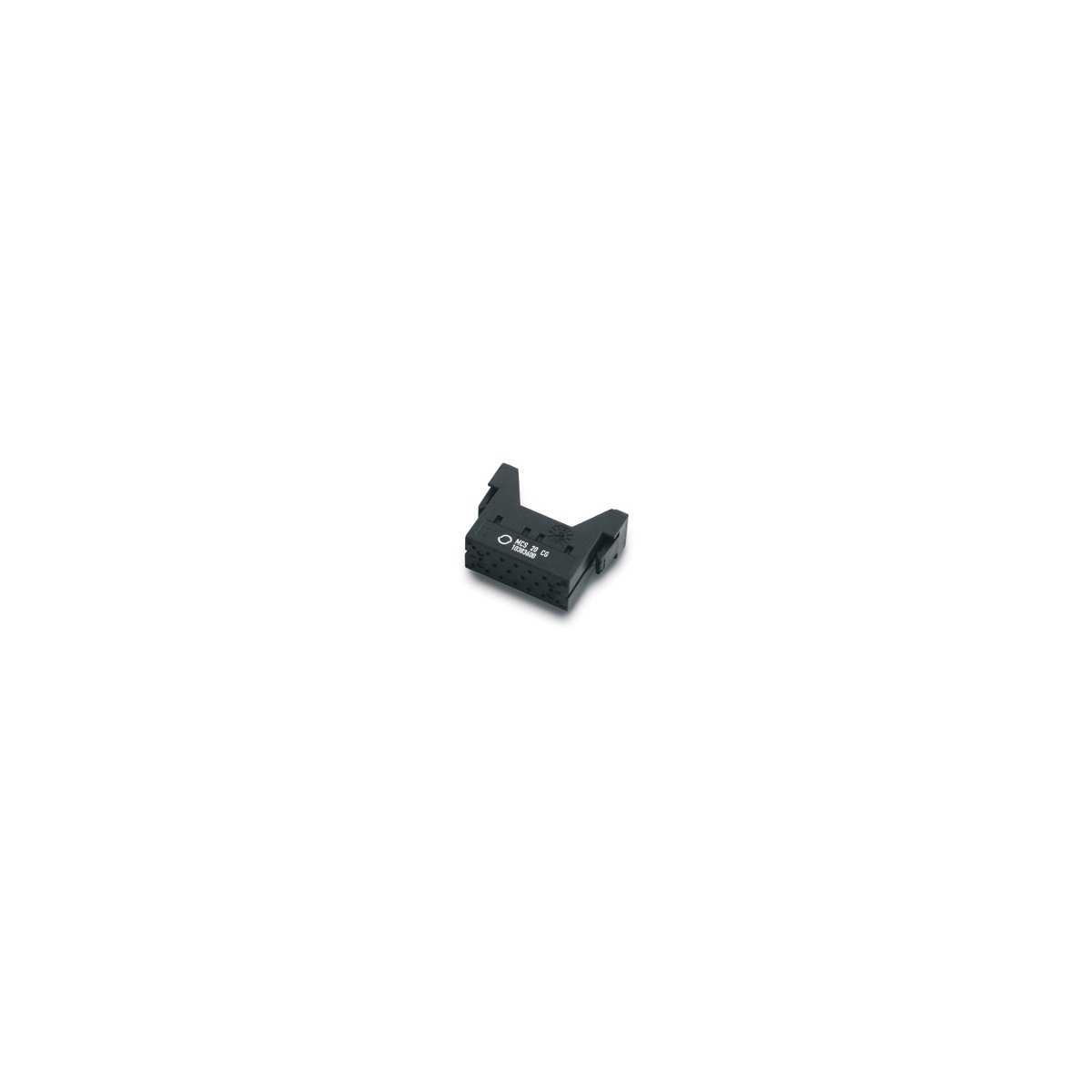

MC module modular system; Crimp termination; Number of contacts: 20; Required slots: 1; For cross-section (min./max.): 0.08mm² – 0.56mm²; 100 V AC rms / DC according to UL/CSA; 4 A according to IEC
Benefits
- Module for accomodating 20 signal contacts for transmissions up to 4 A.
- Modular connectors offer a wide range of possible combinations and can be assembled flexibly – even to create hybrid connectors for different media.
- Made of robust plastic (flammability class V-0 according to the UL94 testing procedure for the flammability of plastics).
- Snaps effortlessly into the matching module frame.
- Different crimp contacts available for different conductor cross-sections.
- UL certification according to technical data enables the product to be used on the North American market.
Applications
- For the production of a modular connector.
- Can be used universally at machine interfaces for many signal transmission applications.
- For use with the rectangular connector module frames of the EPIC® MC series.
- For use with many EPIC® rectangular connector housings.
Technical specifications
General information
| Brand | EPIC® |
|---|---|
| Product type | MC module modular system |
| Scope of delivery | Order contacts separately |
| Contacts included | No |
| Weight | 0.004 kg |
| Delivery Unit | 10 |
| Installation type | clip on |
| customs code | 85472000 |
Electrical parameters
| Rated voltage | 100 V AC rms / DC according to UL/CSA |
|---|---|
| Rated current | 4 A according to IEC |
| Protective earth integrated into insert | No |
Product design
| Number of contacts | 20 |
|---|---|
| Number of power contacts | 0 |
| Number of PE contacts | 0 |
| Number of signal contacts | 0 |
| Number of data contacts | 0 |
| Required slots | 1 |
| Contact insert type | Plug |
| With wire protection | No |
| With protective earth | No |
| Shield contact | No |
| EMC shielding | No |
| Conductor connection type | Crimp termination |
| Min. connectable conductor cross-section AWG | 28 AWG |
| Max. connectable conductor cross-section AWG | 20 AWG |
| Min. connectable conductor cross-section (mm2) | 0.08 mm² |
| Max. connectable conductor cross-section (mm2) | 0.56 mm² |
| Insert material | Polyamide |
| Colour | black |
Product features
| Min. number of insertion cycles | 50 |
|---|---|
| Pollution degree | 3 |
| Short-term temperature peaks | 125 °C |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 100 °C |
| Flame-retardant | Yes |
| Flame retardance according to | UL 94 V-0 |
| Halogen-free | No |
Certifications and standards
| CE marking | No |
|---|---|
| UR recognised | Yes |
| UR certification | according to UL 1977 (CCN: ECBT2 / e-file number: E75770) |
| UL category control number | ECBT2 |
| cUR recognised | Yes |
| cUR certification | according to CSA C22.2 No. 182.3 (CCN: ECBT8 / e-file number: E75770) |
| cUR category control number | PVVA 8 |
| CSA certified | No |
| VDE certified | No |
| Product standard according to IEC | IEC 61984 |
| TÜV certified | No |
| Fire protection tested for railway vehicles | No |
Datasheets and certificates
Manufacturer notes
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
LAPP product information and documents
Manufacturer nominal values; images are representative. The confirmed configuration, quantity and displayed total apply to the order.
