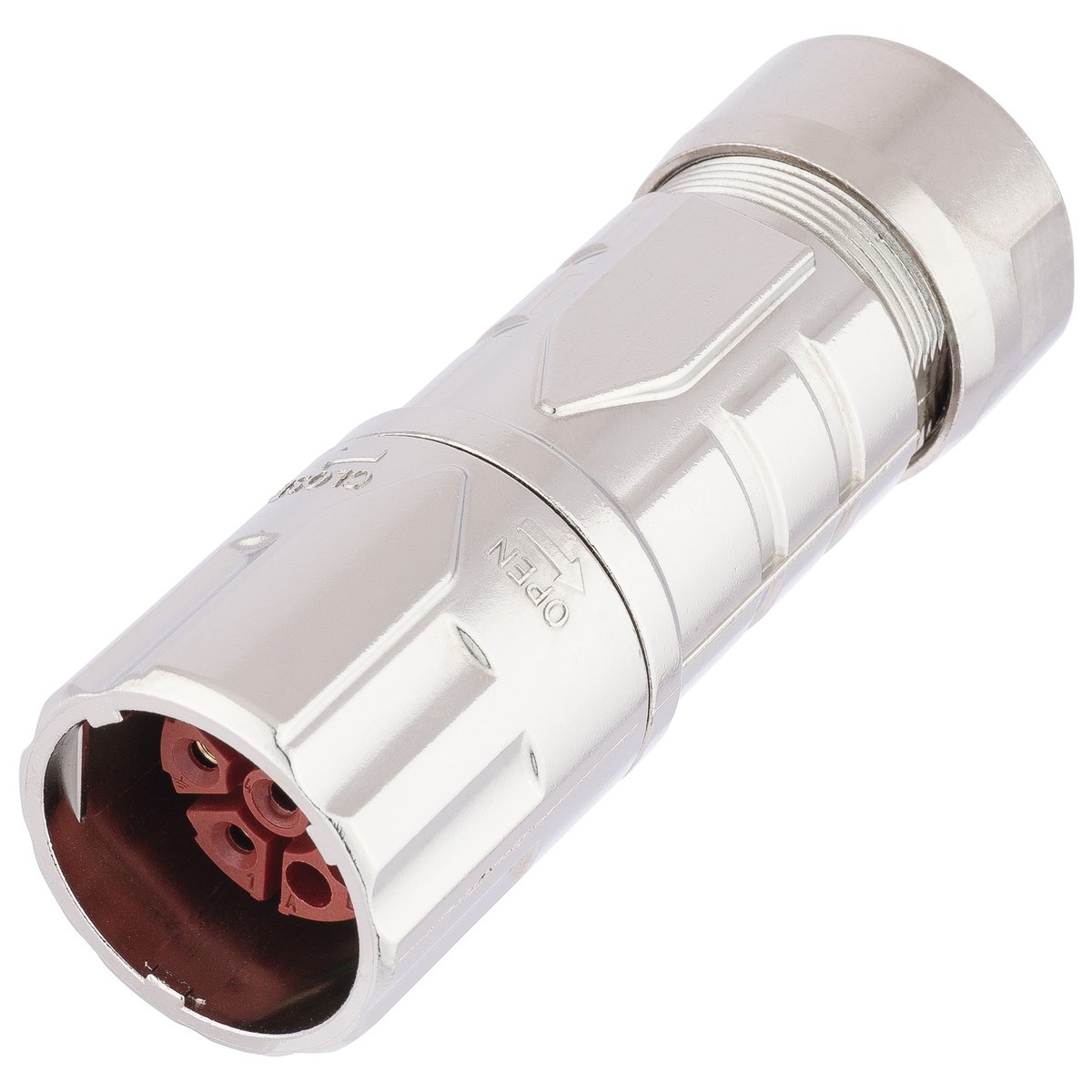

Cable connector; M 23 power; Socket; Number of contacts: 5+PE; Clamping range (min./max.): 7.5mm – 15.5mm
Benefits
- Pre-packed kits with compatible components
- Uncomplicated ordering
- No misplaced orders
- Made in Germany
Technical specifications
General information
| Brand | EPIC® |
|---|---|
| Product type | Cable connector |
| Scope of delivery | including contacts |
| Contacts included | Yes |
| Weight | 0.119 kg |
| Delivery Unit | 1 |
| Industry segment | Building Automation |
| customs code | 85366990 |
Electrical parameters
| Rated impulse voltage | 6 kV AC rms / DC according to IEC 61984 |
|---|---|
| Rated voltage | 600 V AC rms / DC according to UL; 600 V AC rms / DC according to CSA; 630 V AC rms / DC according to IEC |
| Rated current | 25 A according to UL; 25 A according to CSA; 25 A according to IEC |
| Overvoltage category | III |
| Max. contact resistance | 4 mΩ |
Product design
| Number of contacts | 5+PE |
|---|---|
| Number of power contacts | 5 |
| Number of PE contacts | 1 |
| Number of signal contacts | 0 |
| Locking type | Screw lock |
| Connector diameter | 28.4 mm |
| Total length | 83 mm |
| Contact variant | Socket |
| Connector housing design | Straight |
| Coded | No |
| With thread | Yes |
| With protective earth | Yes |
| Connector format | M 23 power |
| Connector type | Socket |
| Shield contact | Yes |
| EMC shielding | Yes |
| Min. cable clamping range | 7.5 mm |
| Max. cable clamping range | 15.5 mm |
| Conductor connection type | Crimp termination |
| PE connection type | Crimp termination |
| Screen contact type | Terminal connection |
| Stripping length, power contact | 8 mm |
| Stripping length of PE connection | 8 mm |
| Min. connectable conductor cross-section AWG | 22 AWG |
| Max. connectable conductor cross-section AWG | 14 AWG |
| Min. connectable conductor cross-section of power contacts (mm2) | 0.5 mm² |
| Max. connectable conductor cross-section of power contacts (mm2) | 2.5 mm² |
| Cable gland material | Fluorinated rubber |
| Cable gland material, short form | FKM |
| Housing base material | Zinc alloy |
| Housing base material, short form | Zn |
| Housing coating | Nickel-plated |
| Housing coating, short form | Ni |
| Insert material | Polyamide |
| Contact material | Brass |
| Contact material, short form | CuZn |
| Contact coating material | Gold-plated |
| Contact coating material, short form | Au |
| Material contact insert | Polyamide |
| Contact insert material, short form | PA |
| Seal type | Conduit sealing ring |
| Sealing material | Fluorinated rubber |
| Housing colour | silver |
Product features
| Min. number of insertion cycles | 500 |
|---|---|
| IP protection class plugged in | IP 68 – 1m (10h) |
| Pollution degree | 3 |
| Operating temperature min. | -25 °C |
| Operating temperature max. | 125 °C |
| Corrosion-resistant according to | DIN EN 60068-2-60, Ke 4 |
| Corrosion-resistant | Yes |
| Halogen-free | No |
| Impact-resistant | Yes |
| Vibration protection | Yes |
Certifications and standards
| CE marking | Yes |
|---|---|
| EAC-certified | Not required |
| EAC certification number | Отказное письмо № 39 |
| UR recognised | Yes |
| UR certification | according to UL 2238 (CCN: CYJV2 / e-file number: E249137) |
| UL category control number | CYJV2 |
| cUR recognised | Yes |
| cUR certification | according to CSA C22.2 No. 182.3 (CCN: CYJV8 / e-file number: E249137) |
| cUR category control number | CYJV8 |
| CSA certified | No |
| VDE certified | Yes |
| VDE registration number | B025 |
| Product standard according to IEC | IEC 61984 |
Datasheets and certificates
- Data sheet: DB75009690EN.pdf
- Operating instructions: l07300000de_en.pdf
- UL EPIC approval: UL-Confirmation-letter_assemblies_E249137_CYJV2_2020.pdf
- VDE EPIC approval: ZV44420058DE_EN.pdf
- CE declaration of conformity: CE73000000EN.pdf
Manufacturer notes
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
