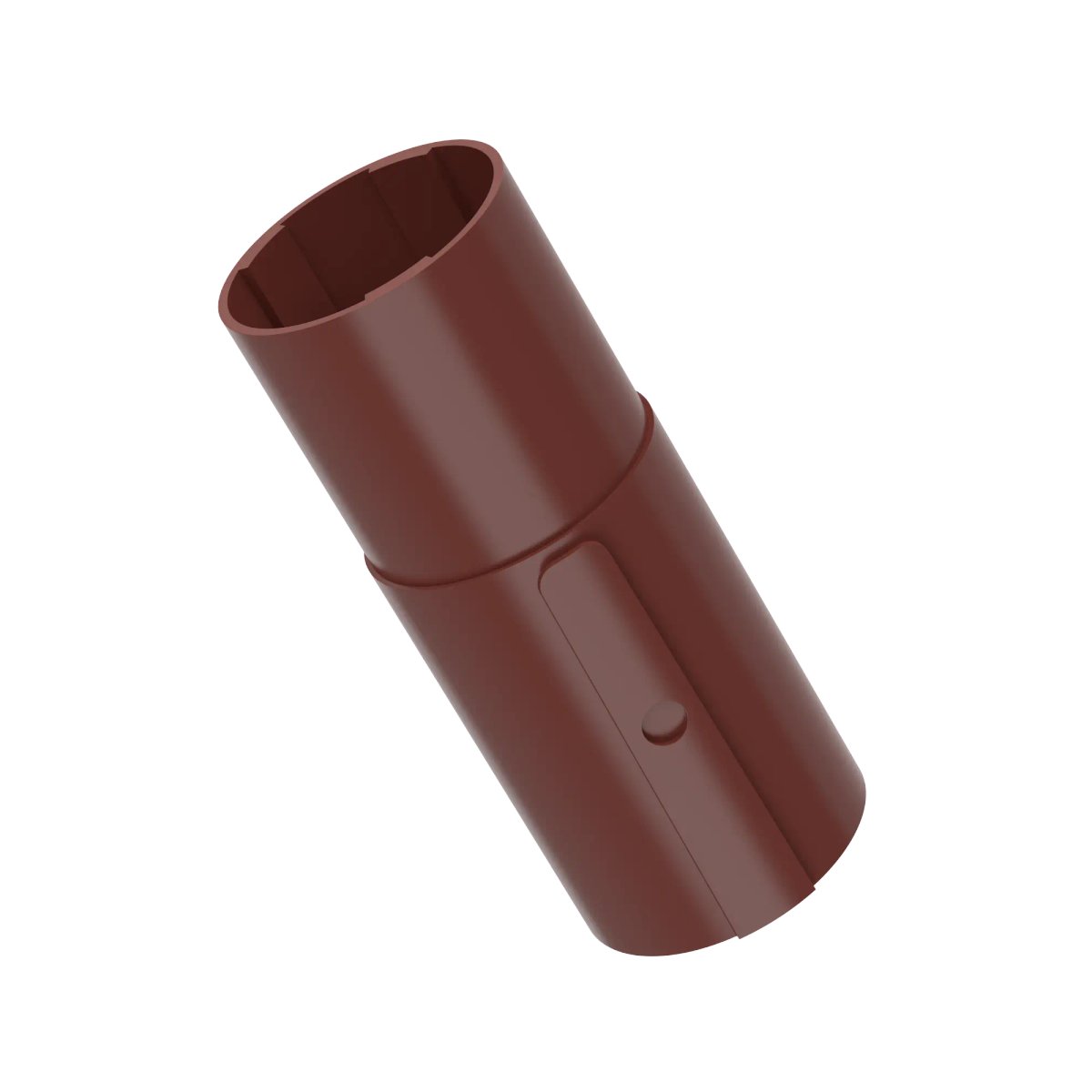

Insert; M 23 power; Pin; Number of contacts: 5+PE; For cross-section (min./max.): 0.5mm² – 4mm²;
Benefits
- For individual fitting with sockets or male contacts.
- Inserts for sockets and inserts for male contacts fit equally in D6 and F6 housings and can be exchanged as desired (housings available separately).
Applications
- For manufacturing an EPIC® POWER M23 circular connector.
- For use with housings of the EPIC® POWER M23 series.
Technical specifications
General information
| Brand | EPIC® |
|---|---|
| Product type | Insert |
| Scope of delivery | Order contacts separately |
| Contacts included | No |
| Weight | 0.011 kg |
| Delivery Unit | 20 |
| customs code | 85366990 |
Electrical parameters
| Overvoltage category | III |
|---|---|
| Max. contact resistance | 4 mΩ |
Product design
| Number of contacts | 5+PE |
|---|---|
| Number of power contacts | 5 |
| Number of PE contacts | 1 |
| Number of signal contacts | 0 |
| Contact variant | Pin |
| Connector housing design | Straight |
| Coded | No |
| With thread | No |
| With protective earth | Yes |
| Premature PE contact | Yes |
| Connector format | M 23 power |
| Connector type | Plug |
| Shield contact | No |
| Conductor connection type | Crimp termination |
| PE connection type | Crimp termination |
| Stripping length, power contact | 8 mm |
| Stripping length of PE connection | 8 mm |
| Min. connectable conductor cross-section AWG | 20 AWG |
| Max. connectable conductor cross-section AWG | 12 AWG |
| Min. connectable conductor cross-section (mm2) | 0.5 mm² |
| Max. connectable conductor cross-section (mm2) | 4 mm² |
| Insert material | Polyamide |
| Colour | red/brown |
Product features
| Min. number of insertion cycles | 500 |
|---|---|
| Halogen-free | No |
Certifications and standards
| CE marking | Yes |
|---|---|
| UR recognised | No |
| cUR recognised | No |
| CSA certified | No |
| VDE certified | No |
| Product standard according to IEC | IEC 61984 |
Datasheets and certificates
- Data sheet: DB24441169EN.pdf
- Operating instructions: EPIC LS1 AID.pdf
- Operating instructions: L99093021DE_EN.pdf
Manufacturer notes
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
