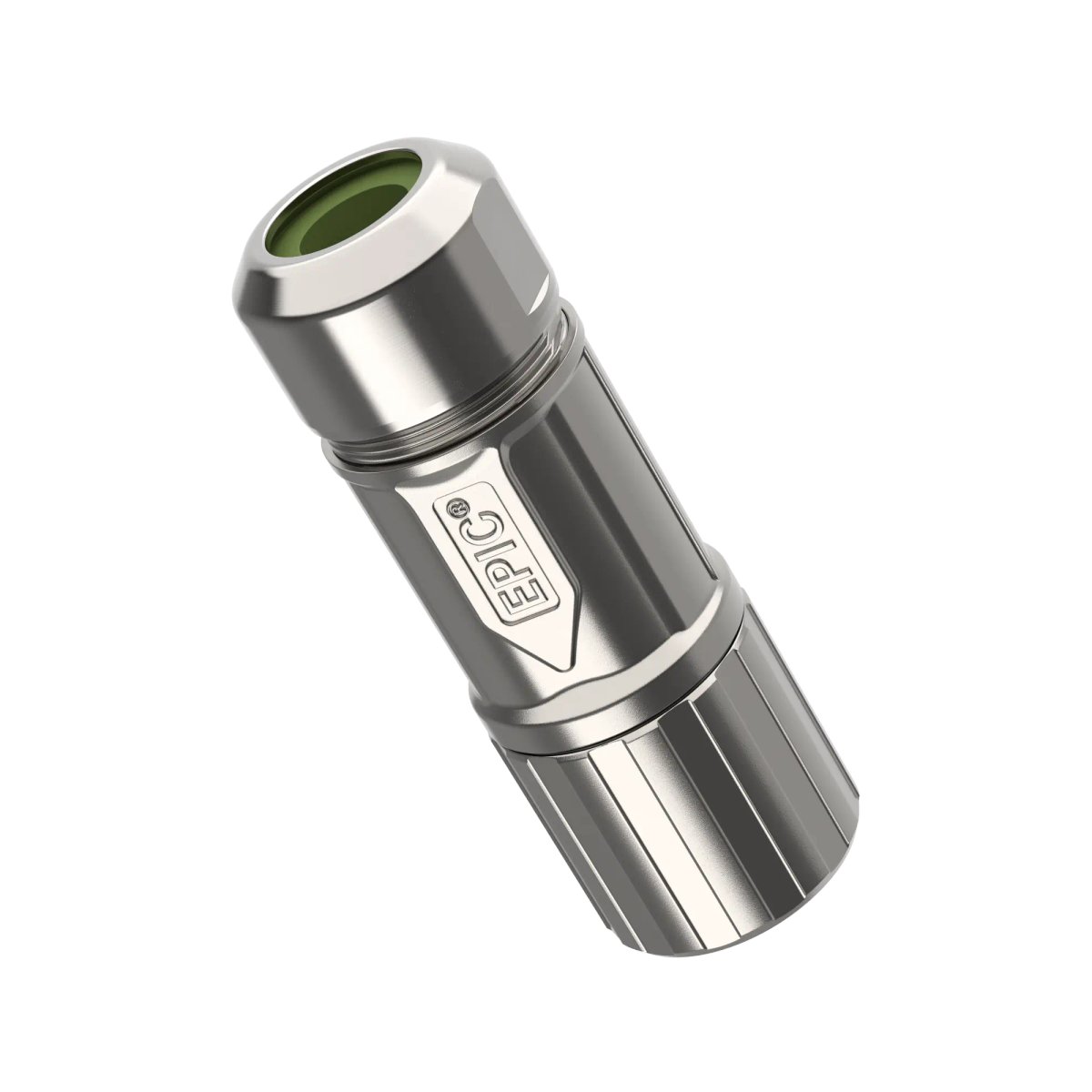

Cable connector; M 23 power; Socket; Number of contacts: 5+PE; Clamping range (min./max.): 8.5mm – 11mm
Benefits
- Particularly high power despite extremely space-saving design for very small devices.
- Stability thanks to die-cast zinc metal housing.
- Reliable protection against electromagnetic interference thanks to integrated EMC cable gland.
- Housing is available separately or including insert.
- The individual housing can be used with inserts for either sockets or male contacts (available separately).
Applications
- For connecting the power supply of devices and machines with higher voltages and currents.
- Typical areas of application are electric motors and servo drives.
- Especially for environments where electromagnetic compatibility (EMC) is required.
Technical specifications
General information
| Brand | EPIC® |
|---|---|
| Product type | Cable connector |
| Scope of delivery | including crimp contacts |
| Contacts included | Yes |
| Weight | 0.136 kg |
| customs code | 85366990 |
Electrical parameters
| Overvoltage category | III |
|---|---|
| Max. contact resistance | 4 mΩ |
Product design
| Number of contacts | 5+PE |
|---|---|
| Number of power contacts | 5 |
| Number of PE contacts | 1 |
| Number of signal contacts | 0 |
| Locking type | Screw lock |
| Connector diameter | 28.4 mm |
| Total length | 83 mm |
| Contact variant | Socket |
| Connector housing design | Straight |
| Coded | No |
| With thread | No |
| With protective earth | Yes |
| Premature PE contact | Yes |
| Connector format | M 23 power |
| Connector type | Socket |
| Shield contact | Yes |
| EMC shielding | Yes |
| Min. cable clamping range | 8.5 mm |
| Max. cable clamping range | 11 mm |
| Conductor connection type | Crimp termination |
| PE connection type | Crimp termination |
| Screen contact type | Terminal connection |
| Stripping length, power contact | 8 mm |
| Stripping length of the sheathing | 40 mm |
| Stripping length of PE connection | 8 mm |
| Min. connectable conductor cross-section AWG | 22 AWG |
| Max. connectable conductor cross-section AWG | 14 AWG |
| Min. connectable conductor cross-section of power contacts (mm2) | 0.5 mm² |
| Max. connectable conductor cross-section of power contacts (mm2) | 2.5 mm² |
| Cable gland material | Fluorinated rubber |
| Cable gland material, short form | FKM |
| Housing base material | Zinc alloy |
| Housing base material, short form | Zn |
| Housing coating | Nickel-plated |
| Housing coating, short form | Ni |
| Contact material | Brass |
| Contact material, short form | CuZn |
| Contact insert material, short form | PA |
| Seal type | Conduit sealing ring |
| Sealing material | Fluorinated rubber |
| Housing colour | silver |
Product features
| Min. number of insertion cycles | 500 |
|---|---|
| Protection class (IP), mounted | IP 2X |
| IP protection class plugged in | IP 68 – 1m (10h) |
| Pollution degree | 3 |
| Operating temperature min. static (no plugging or unplugging) | -40 °C |
| Operating temperature min. | -25 °C |
| Operating temperature max. | 125 °C |
| Corrosion-resistant | Yes |
| Halogen-free | No |
| Impact-resistant | Yes |
| Vibration protection | Yes |
Certifications and standards
| CE marking | Yes |
|---|---|
| UR recognised | No |
| cUR recognised | No |
| CSA certified | No |
| VDE certified | No |
| Product standard according to IEC | IEC 61984 |
Datasheets and certificates
Manufacturer notes
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
