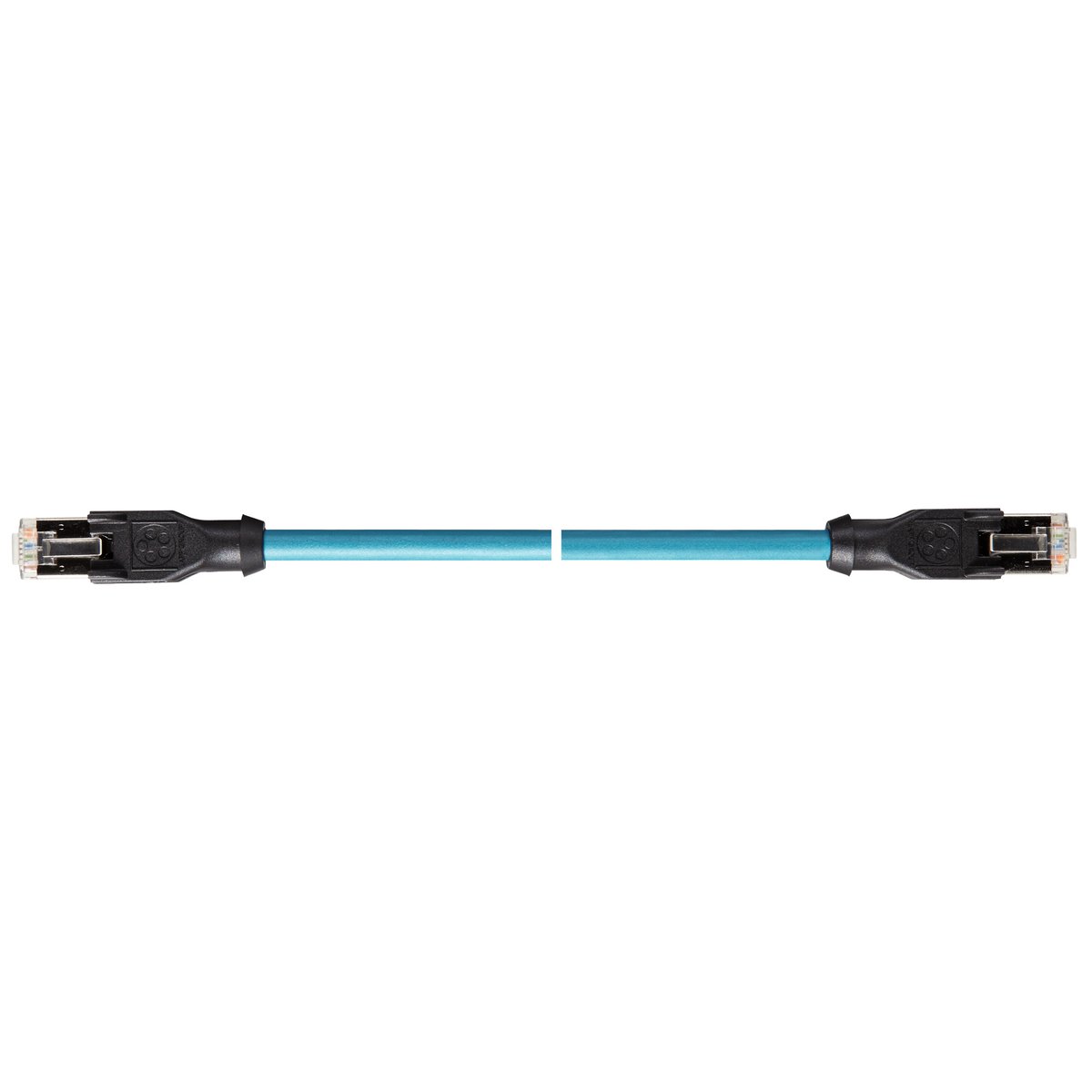

Pre-assembled Ethernet cable; Fixed installation, Flexible; ETHERNET/IP, EtherCAT, Ethernet; Cat.5e; SF/UTP; Halogen-free compound; 2×2; RJ 45, Plug, Straight (180 °); RJ 45, Plug, Straight (180 °); 0.5 m
Benefits
- Fast information exchange through Ethernet technology.
- Cat. 5e performance up to 100 Mbit/s.
- For transmission of analogue and digital signals in the frequency range up to 100 MHz.
- Available as a one-sided assembled cable for flexible selection of the cable length and free choice of further connection.
- Also available as a cable assembled on both sides to save time during installation.
- Available with RJ45 or M12 connectors. The slim RJ45 connector enables use in devices with a very high port density, while the integrated vibration protection of the M12 connector is useful in applications with shock and vibrations.
- Halogen-free core insulation and sheath compound to comply with special fire safety requirements.
- Ideal protection against electromagnetic interference thanks to double shielding made of aluminium-laminated foil and copper stranded shielding with high degree of coverage (SF/UTP).
Applications
- For structured building cabling according to EN 50173 and ISO/IEC 11801.
- Especially for environments where electromagnetic compatibility (EMC) is required.
- Suitable for all LAN networks and Ethernet applications up to 100Base-T.
- Also suitable for EtherCAT and EtherNet/IP applications.
- For fixed installation and occasional movement.
- Can be used in dry and damp spaces.
Technical specifications
General information
| Brand | ETHERLINE® |
|---|---|
| Product type | Pre-assembled Ethernet cable |
| Length | 0.5 m |
| Weight | 0.065 kg |
| Copper index | 0.01 kg/pce |
| Delivery Unit | 1 |
| Connector 1 | RJ 45; Plug; Straight; Number of contacts: 8 |
| Connector 2 | RJ 45; Plug; Straight; Number of contacts: 8 |
| valid fieldbus or Ethernet system | ETHERNET/IP; EtherCAT; Ethernet |
| customs code | 85444290 |
Product design
| Cable dimensions | 4X |
|---|---|
| Number of cores | 4 |
| Shielded | Yes |
| Basic material of outer sheath, short form | PUR |
| Outer sheath colour | blue |
Product features
| Application area | Flexible |
|---|---|
| Min. number of insertion cycles | 750 / 750 |
| IP protection rating | IP 20 |
| For use in hazardous areas | No |
| Installation temperature min. | -5 °C |
| Max. assembly temperature | 60 °C |
| Ethernet cable category | Cat.5e |
Certifications and standards
| CE marking | Yes |
|---|---|
| UL recognized | No |
| UL listed | No |
| cUR recognised | No |
| cUL listed | No |
| CSA certified | No |
| VDE certified | No |
| Product standard according to IEC | RJ45 according to IEC 60603-7-51 |
| DNV-certified | No |
| Ecolab certified | No |
Datasheets and certificates
- Data sheet: DB2171091EN.pdf
- Technical table: T6_Type designations_int.pdf
- CE declaration of conformity: CE2171085EN.pdf
Manufacturer notes
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
