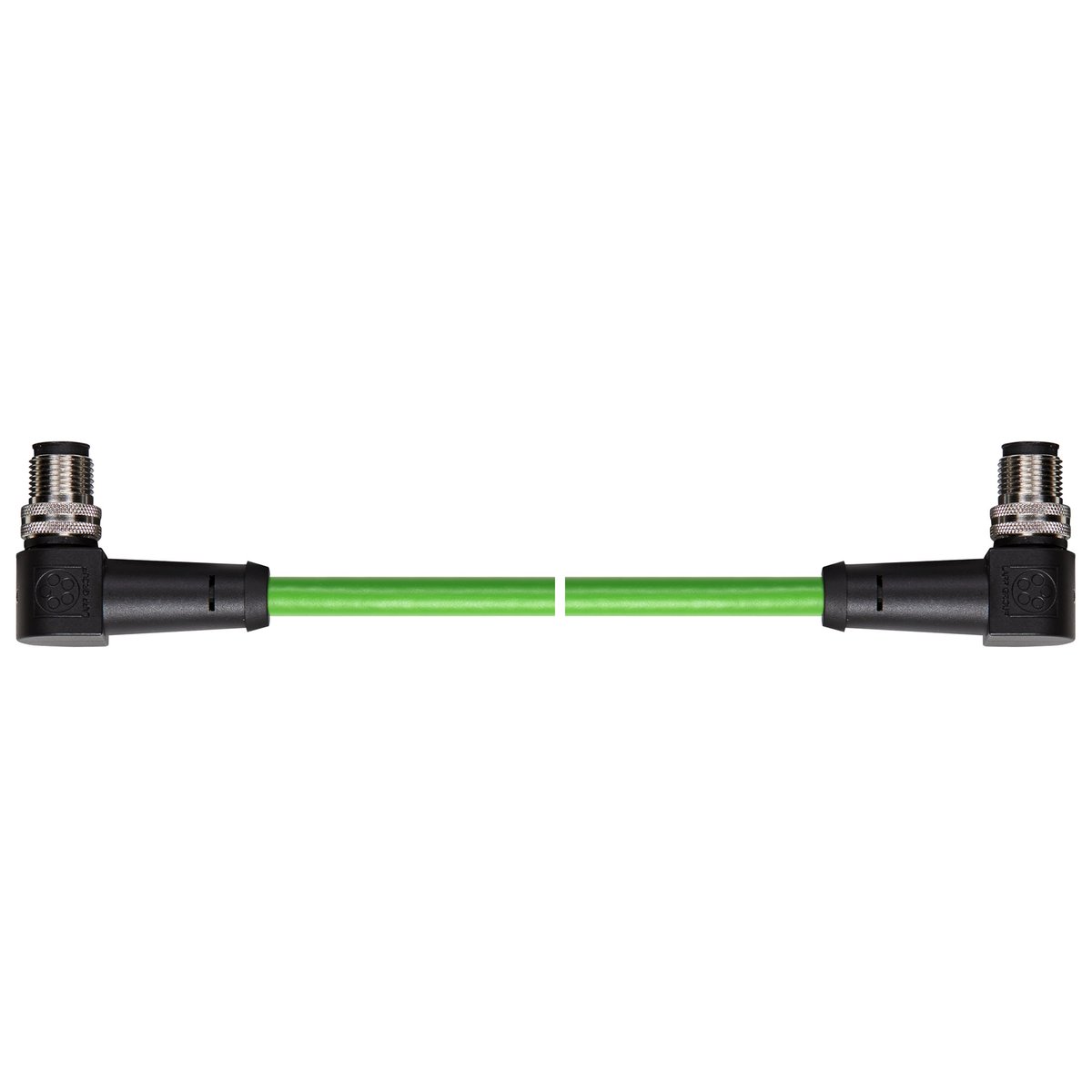

Pre-assembled Ethernet cable; Cable chain, Flexible; EtherCAT, ETHERNET/IP; Cat.5e; SF/UTP; Polyurethane; 2×2; M 12 (D-coded), Plug, Angled (90 °); M 12 (D-coded), Plug, Angled (90 °); 3 m
Benefits
- Cable assembled on one or both sides saves time during installation and reduces or eliminates the potential for errors during on-site assembly.
- High resistance to electromagnetic interference thanks to star quad stranding as well as double shielding made of aluminium-laminated foil and copper stranded shielding with a high degree of coverage (SF/UTP).
- Available with RJ45, M8 or M12D connectors. The slim RJ45 connector enables use in devices with a very high port density, while the integrated vibration protection of the M8/M12D connector is useful for applications with shock and vibrations.
- The angled shape of the connector is suitable for a space-saving cable outlet.
- Halogen-free core insulation and sheath compound to comply with special fire safety requirements.
- Cat. 5e performance up to 100 Mbit/s.
- For transmission of analogue and digital signals in the frequency range up to 100 MHz.
Applications
- Cable design allows highly flexible, continuously moving use in moving machine parts and in cable chains.
- Also suitable for EtherCAT and EtherNet/IP applications.
- Compliant with standards for use in buses (fire behaviour test according to UNECE-R 118 for vehicles of category M3 (II and III)).
- Can be used in dry and damp conditions, and especially in harsh and oily spaces.
- The PUR outer sheath and connectors withstand high mechanical stresses.
- The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals.
Technical specifications
General information
| Brand | ETHERLINE® |
|---|---|
| Product type | Pre-assembled Ethernet cable |
| Length | 3 m |
| Weight | 0.145 kg |
| Copper index | 0.06 kg/pce |
| Delivery Unit | 1 |
| Connector 1 | M 12; Plug; Angled; D-coded; Number of contacts: 4 |
| Connector 2 | M 12; Plug; Angled; D-coded; Number of contacts: 4 |
| valid fieldbus or Ethernet system | EtherCAT; Ethernet; ETHERNET/IP |
| Industry segment | Agricultural & Farm Machinery |
| customs code | 85444290 |
Product design
| Cable dimensions | 4X |
|---|---|
| Number of cores | 4 |
| Shielded | Yes |
| Coded | Yes |
| Coding type | D-coded |
| Basic material of outer sheath, short form | PUR |
Product features
| Application area | Cable chain |
|---|---|
| Min. number of insertion cycles | 100 / 100 |
| IP protection rating | IP 67; IP 69 |
| For use in hazardous areas | No |
| Installation temperature min. | -30 °C |
| Max. assembly temperature | 50 °C |
| Ethernet cable category | Cat.5e |
Certifications and standards
| CE marking | Yes |
|---|---|
| EAC-certified | Not required |
| EAC certification number | Отказное письмо № 40 |
| UL recognized | No |
| UL listed | No |
| cUR recognised | No |
| cUL listed | No |
| CSA certified | No |
| VDE certified | No |
| Product standard according to IEC | M12 according to IEC 61076-2-101 |
| DNV-certified | No |
| Flame retardance tested according to UN/ECE-R118 | Yes |
| Ecolab certified | No |
Datasheets and certificates
- Data sheet: DB2171906EN.pdf
- Technical table: T6_Type designations_int.pdf
- Selection table: A2_2_Data cables for use in drag chains_en.pdf
- CE declaration of conformity: CE2171778EN.pdf
Manufacturer notes
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
