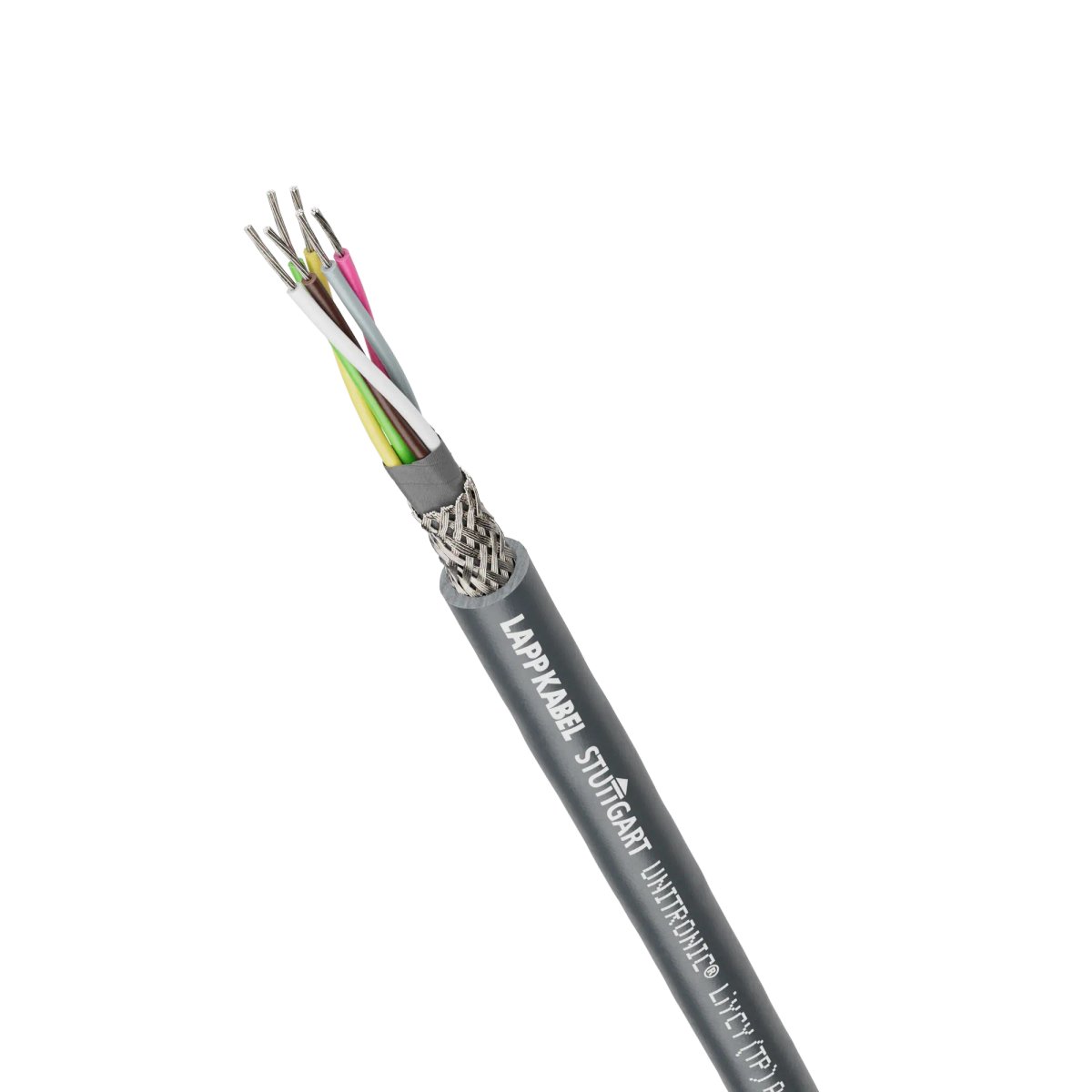

Low-frequency data cable; 5X2X24 AWG; Conductor colour code: DIN 47100 without colour repetition; PVC; Shielded; UL recognized; Flexible
Benefits
- UL/CSA certification according to technical data enables the product to be used in the North American market.
- Product with multiple certifications enables universal use and reduces the variety of parts, thus guaranteeing logistics savings.
- The conductor circuits are well decoupled thanks to the twin cabling (TP, Twisted Pair) with short lay lengths.
- Ideal protection against electromagnetic interference thanks to copper stranded shielding with a high degree of coverage.
- Compact design enables small outer diameters despite high number of cores.
- With robust, flexible and resistant PVC outer sheath.
Applications
- Can be used universally at machine interfaces for many applications for data and signal transmission in the low-frequency range.
- For use in control, regulation and measurement circuits.
- For fixed installation and occasional movement.
- Can be used in dry and damp spaces.
Technical specifications
General information
| Brand | UNITRONIC® |
|---|---|
| Product type | Low-frequency data cable |
| Weight | 91 kg/km |
| Copper index | 46.3 kg/km |
| Industry segment | Assembly Machines |
| customs code | 85444995 |
Electrical parameters
| Rated voltage | 300 V AC rms according to UL AWM; 300 V AC rms according to CSA AWM |
|---|---|
| Test voltage | 1.5 kV |
| Max. conductor resistance at 20°C | 94.2 Ω/km |
| Conductor/conductor operating capacitance (800Hz), approx. | 127 nF/km |
| Conductor/shielding operating capacitance (800Hz), approx. | 197 nF/km |
| Inductance (800 Hz), approx. | 0.671 mH/km |
Product design
| Li-stranded cables | LiYCY |
|---|---|
| Cable dimensions | 5X2X24 AWG |
| Nominal conductor cross-section (metric) | 0.23 mm² |
| Nominal conductor cross-section (AWG) | 24 AWG |
| Leading conductor cross-section | AWG |
| Conductor material | Tin-plated copper |
| Including protective earth | No |
| Number of pairs | 5 |
| Stranding type | Twisted-pair |
| Shielded | Yes |
| Type of overall screening | Tin-plated copper braiding |
| Nominal outer diameter | 7.5 mm |
| Cable shape | Round |
| Core insulation basic material | Polyvinylchloride |
| Core insulation basic material, short form | PVC |
| Basic material of outer sheath | Polyvinylchloride |
| Basic material of outer sheath, short form | PVC |
| Outer sheath colour | dark grey |
| Core identification | Colours |
| Conductor colour code | DIN 47100 without colour repetition |
Product features
| Application area | Flexible; Fixed installation |
|---|---|
| For torsional load | No |
| Minimum bending radius, stationary | 6 x outer diameter |
| Minimum bending radius in mm, fixed installation | 45 mm |
| Minimum bending radius, occasionally flexing | 15 x outer diameter |
| Minimum bending radius in mm, occasionally flexing | 112.5 mm |
| Temperature, fixed installation | -40 °C to 80 °C max. conductor temperature |
| Temperature, fixed installation max | 80 °C |
| Temperature, fixed installation min | -40 °C |
| max. conductor temperature, occasionally moved | -5 °C to 70 °C max. conductor temperature |
| Temperature, occasionally moved max | 70 °C |
| Temperature, occasionally moved min | -5 °C |
| Flame-retardant | Yes |
| Flame retardance according to | IEC 60332-1-2; CSA FT1; UL FT1; UL VW-1 |
| UV-resistant | No |
| Halogen-free | No |
| Oil-resistant | No |
| PWIS-free | Yes |
| PWIS-free according to | VDMA 24364-B2-L |
Certifications and standards
| CE marking | Yes |
|---|---|
| EAC-certified | Yes |
| EAC certification number | ЕАЭС N RU Д-DE.АЮ64.В.00130/20 |
| UL recognized | Yes |
| UL AWM certification | 2464 according to UL 758 (e-file number: E63634) |
| UL listed | No |
| cUR recognised | No |
| cUR certification | AWM I A according to CSA C22.2 No. 210 (e-file number: E63634); AWM I B according to CSA C22.2 No. 210 (e-file number: E63634); AWM II A according to CSA C22.2 No. 210 (e-file number: E63634); AWM II B according to CSA C22.2 No. 210 (e-file number: E63634) |
| cUL listed | No |
| CSA certified | Yes |
| CSA certification | AWM I A according to CSA C22.2 No. 210; AWM I B according to CSA C22.2 No. 210; AWM II A according to CSA C22.2 No. 210; AWM II B according to CSA C22.2 No. 210 |
| VDE certified | No |
| Flame retardance tested according to UN/ECE-R118 | No |
Datasheets and certificates
- Data sheet: DB0066202EN.pdf
- UL approval: ZUE63634.pdf
- Technical table: T9_Core ID code as per VDE colour code_int.pdf
- CE declaration of conformity: CE0066202EN.pdf
Manufacturer notes
- Inductance and operating capacitance are neither defined nor controlled electrical parameters. The specified values were determined by calculation and may deviate due to tolerances.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- The absence of PWIS raw materials does not protect against the potential risk of contamination with substances that interfere with the paint wetting during subsequent handling of the product(s) during transport, storage or further processing after delivery.
