Article specifications
| Part no. | 920380 |
|---|---|

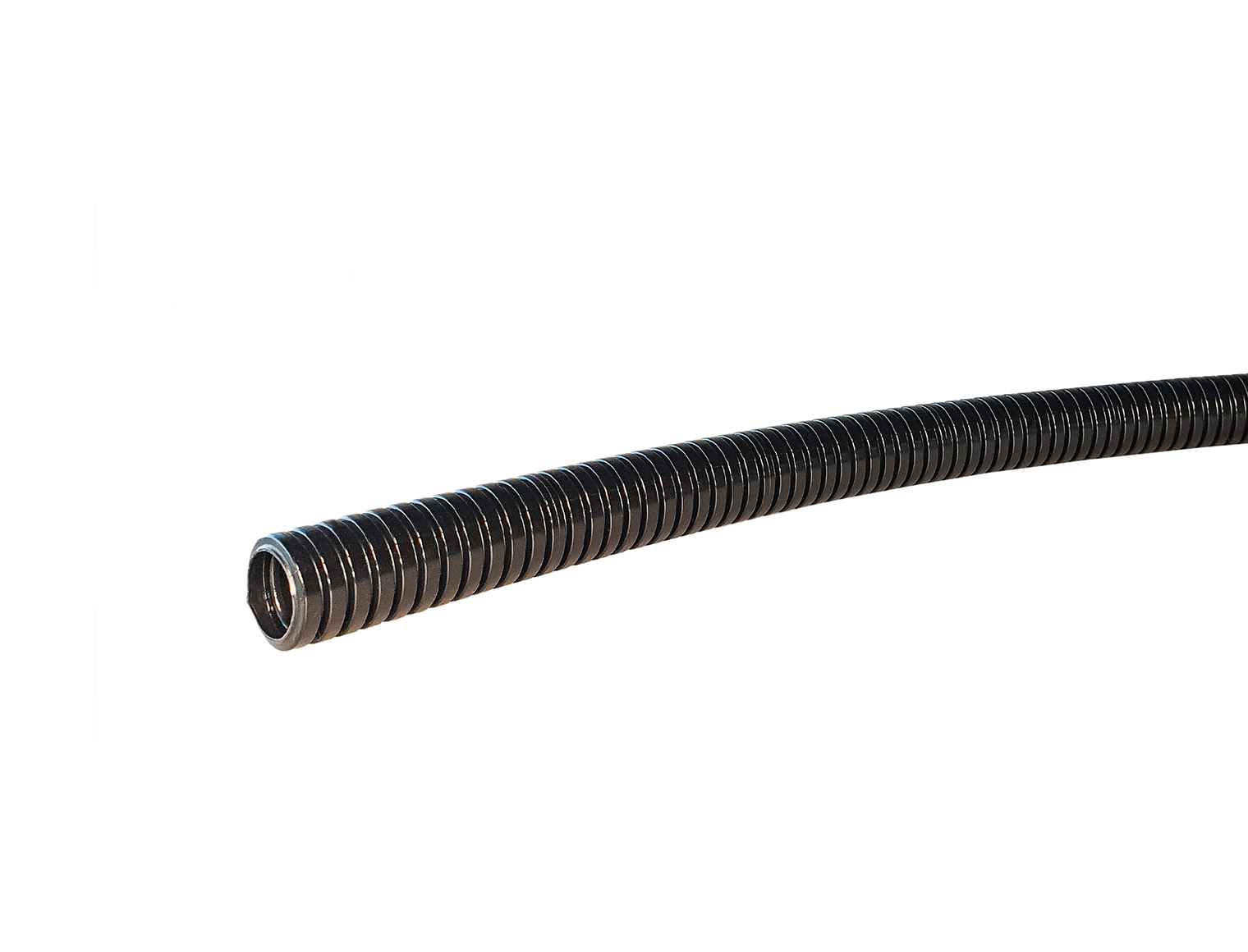

| Item description | PA-Wellschlauch JUMBO PA12 (70) black (10m) |
| Outer diameter, approx. (mm) | 79,2 |
| Colour | black |
| Suitable nominal diameter | 70,0 |
| Bending radius (mm) | 200,0 |
| Inner diameter (mm) | 66,5 |
| Metres per packaging unit | 10 |
| Custom cut lengths available | no |
| EAN / GTIN | 4060892380204 |
| Customs tariff number | 39173200 |
Manufacturer technical information
PA Corrugated tubes
Temperature range
-40°C to +120°C
short term up to +150°C
short term up to +150°C
Capacity/100mm
approx. 700, 800 N
Structure
- Material: modified Polyamide (PA) 12
- Flammability acc. to UL 94 (V0)
Properties
- halogen-free
- cadmium-free
- resistant to: fuels, mineral oils, greases, weak bases, weak acids
Notes
- Suitable connection glands:
- JUMBO gland
Application
- Robotics
- Handling systems
- Vehicle construction
- Drag chains
- Oversize corrugated tubes
- Cable protection tube for heavy-duty applications
