Article specifications
| Part no. | 920159 |
|---|---|
| Item description | PA-Wellschlauch PA12-B 21 grey (50,0m) |
| Outer diameter, approx. (mm) | 28,5 |
| Colour | grey |
| Inner diameter (mm) | 22,0 |
| Nominal diameter (mm) | 21,0 |
| Metres per packaging unit | 50 |
| Custom cut lengths available | no |
| EAN / GTIN | 4060892379994 |
| Customs tariff number | 39173200 |
Manufacturer technical information

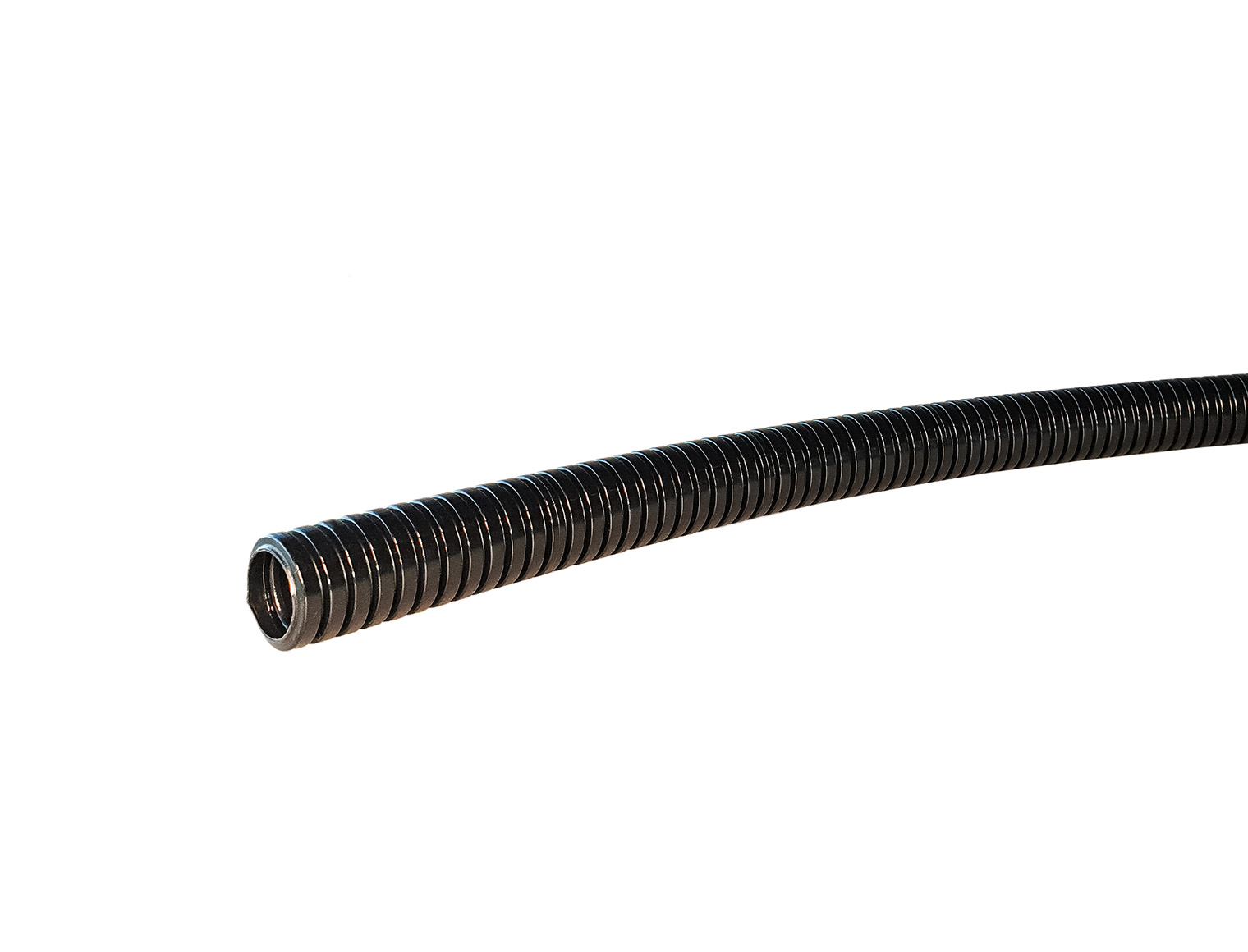

PA Corrugated tubes
Temperature range
-40°C to +120°C
short term up to +150°C
short term up to +150°C
Capacity/100mm
approx. 350 N (NW: 17)
Structure
- Material: modified Polyamide (PA) 12
- Flammability acc. to UL 94 (HB)
Properties
- halogen-free
- cadmium-free
- resistant to: fuels, mineral oils, greases, weak bases, weak acids
Notes
- Fine or coarse profile. Suitable connection glands: HELUquick, HSSV.
Application
- Machine and plant construction
- Robotics
- Automation technology
- Railway technology
- Installation technology
- Cable protection tube for heavy-duty applications.
- High flexible and high load rating
