Article specifications
| Part no. | 11024689 |
|---|---|

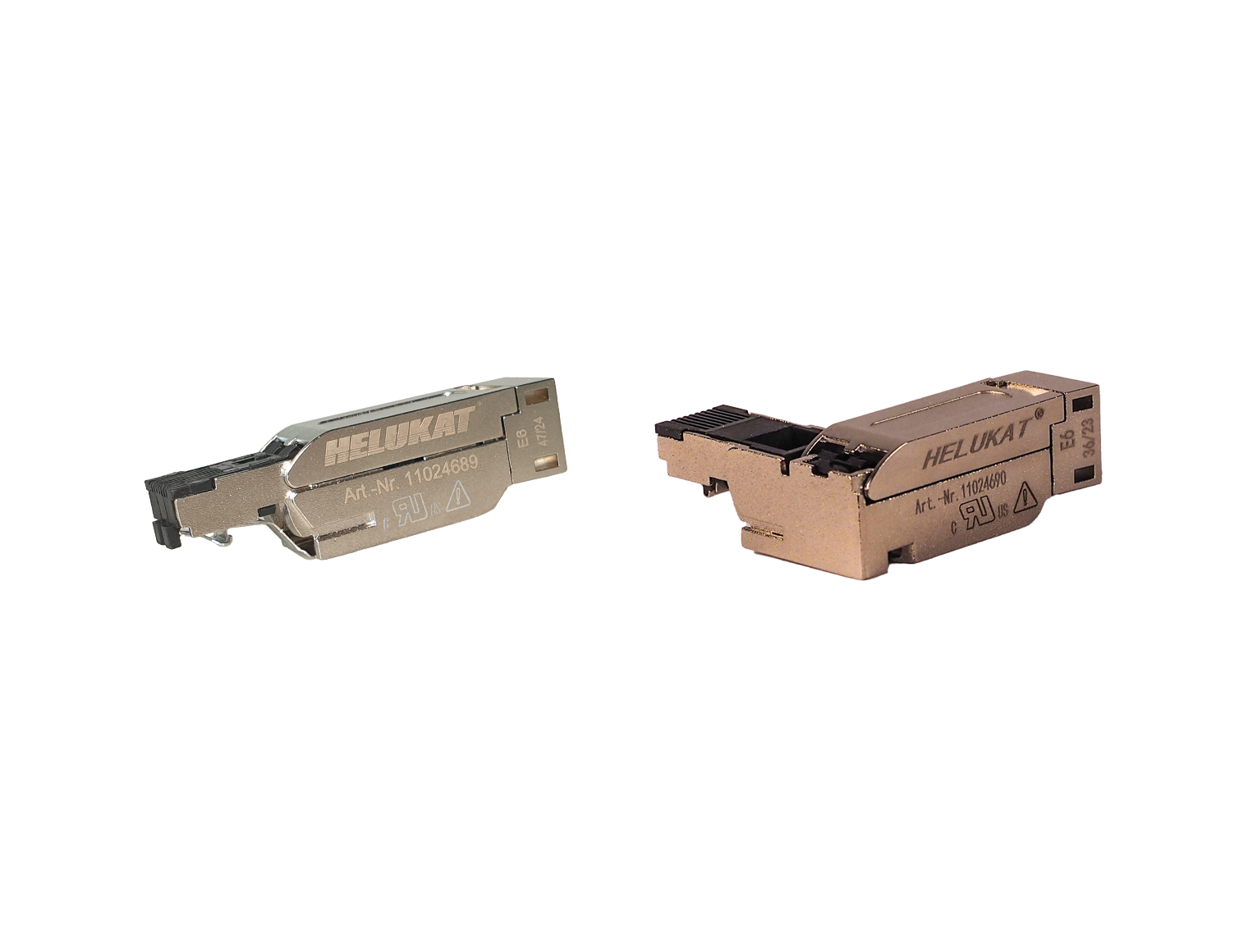

| Item description | PROFINET® Schnellkontakt (SK) RJ45 plug 180° metall IP20 Kat5 |
| Weight, approx. (kg/km) | 24,0 |
| Pieces per packaging unit | 1 |
| Individual quantities available | no |
| EAN / GTIN | 4060892535192 |
| Customs tariff number | 85366990 |
Manufacturer technical information
Connector RJ45
Transmission Rate
max. 100Mbit/s
Environmental Temperature
-30C° bis 85C°
Relative Humidity
95 % r.H.without condensation
Rated Voltage
60 V max.
Rated Current
2.4 A max
Cable Structure
- RJ45 Plug
- Quick contact SK with IDC clamps
- Cable exit straight or angled
- Colour coded contact elements
- no individual parts, that can be lost
- tool-free assembly
Properties
- suitable for cable dimensions 24 AWG oder 22 AWG, solid or stranded
Tests
- Protection Class IP20
Application
- The field assembly RJ45 connector for PROFINET and EtherCAT is quick and easy to install. With a PROFINET cable of up to 100 m length, Ethernet components can be interconnected with each other. In addition, the RJ45 connectors have IP20 protection and are designed for transmission rates of up to 100 Mbit/s.
