Article specifications
| Part no. | 907429 |
|---|---|
| Item description | Rohrkabelschuh HELU-S-RK-F-CU 50-6 |
| Nominal cross-section, approx. (mm²) | 50 |
| Copper factor (MK) per 1000 pcs | 32.5 |
| Bore (M) | 6 |
| Hole diameter (a), mm | 6,4 |
| Conductor entry diameter (d), mm | 11,2 |
| Flange width (b), mm | 22,0 |
| Length (l), mm | 42,0 |
| Weight (kg/1000 pcs) | 32,5 |
| Pieces per packaging unit | 100 |
| Individual quantities available | no |
| EAN / GTIN | 4060892424175 |
| Customs tariff number | 85369010 |
Manufacturer technical information

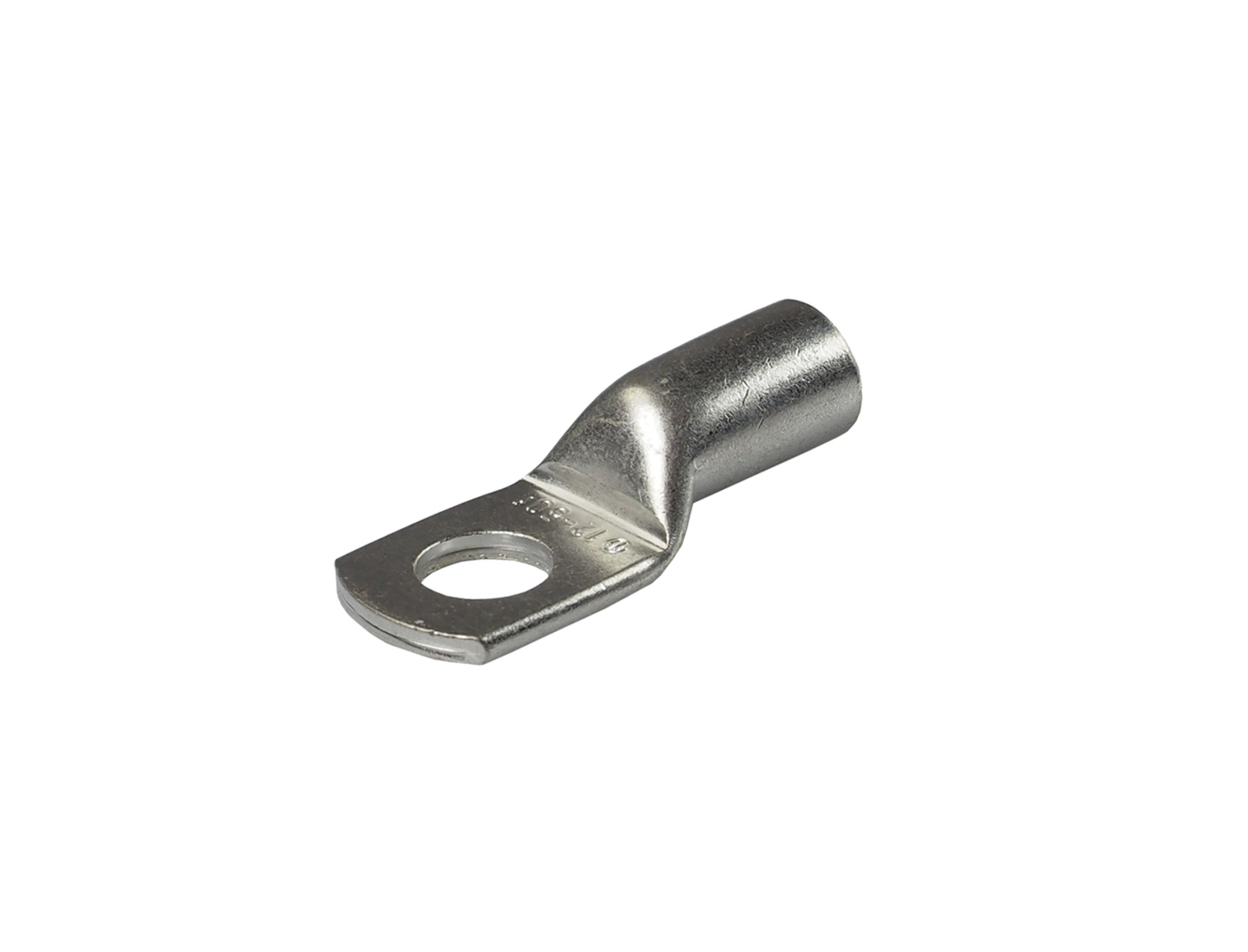

Tubular cable lug
Flange shape
Ring shape
Connecting angle
180° (horizontal)
Temperature range
up to +120°C
Structure
- Material: copper acc. to DIN EN 13600
- Surface: galvanic tin plated
- uninsulated
- without Inspection hole
Properties
- for finely stranded conductors
- widened shaft; allows easy and safe insertion of conductor
Notes
- Recommended pressing method: WM pressing

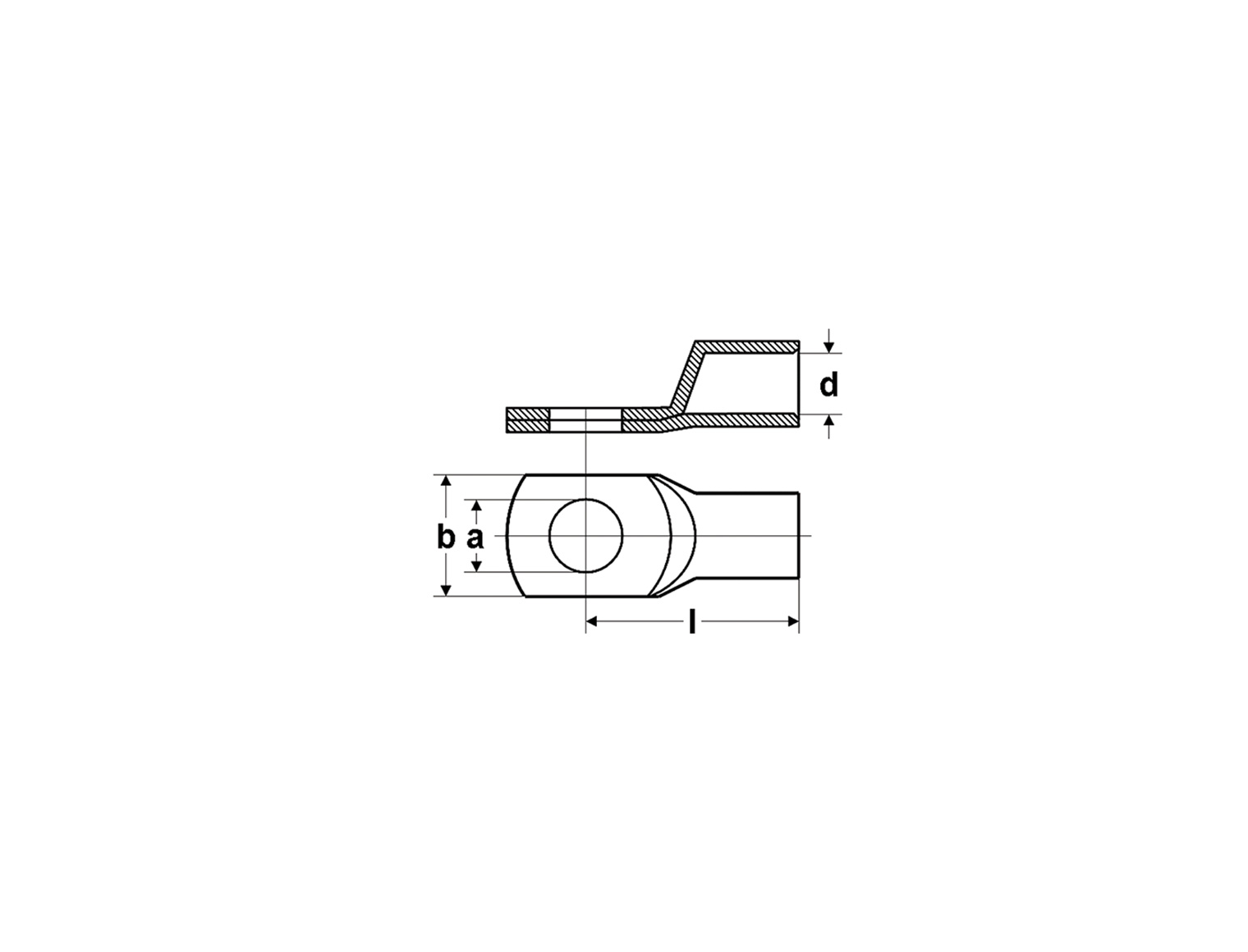

- Legend:
- a - Diameter of stud hole
- b - Width of flange
- d - Inner diameter of wire receptable
- l - Length to centre of hole
