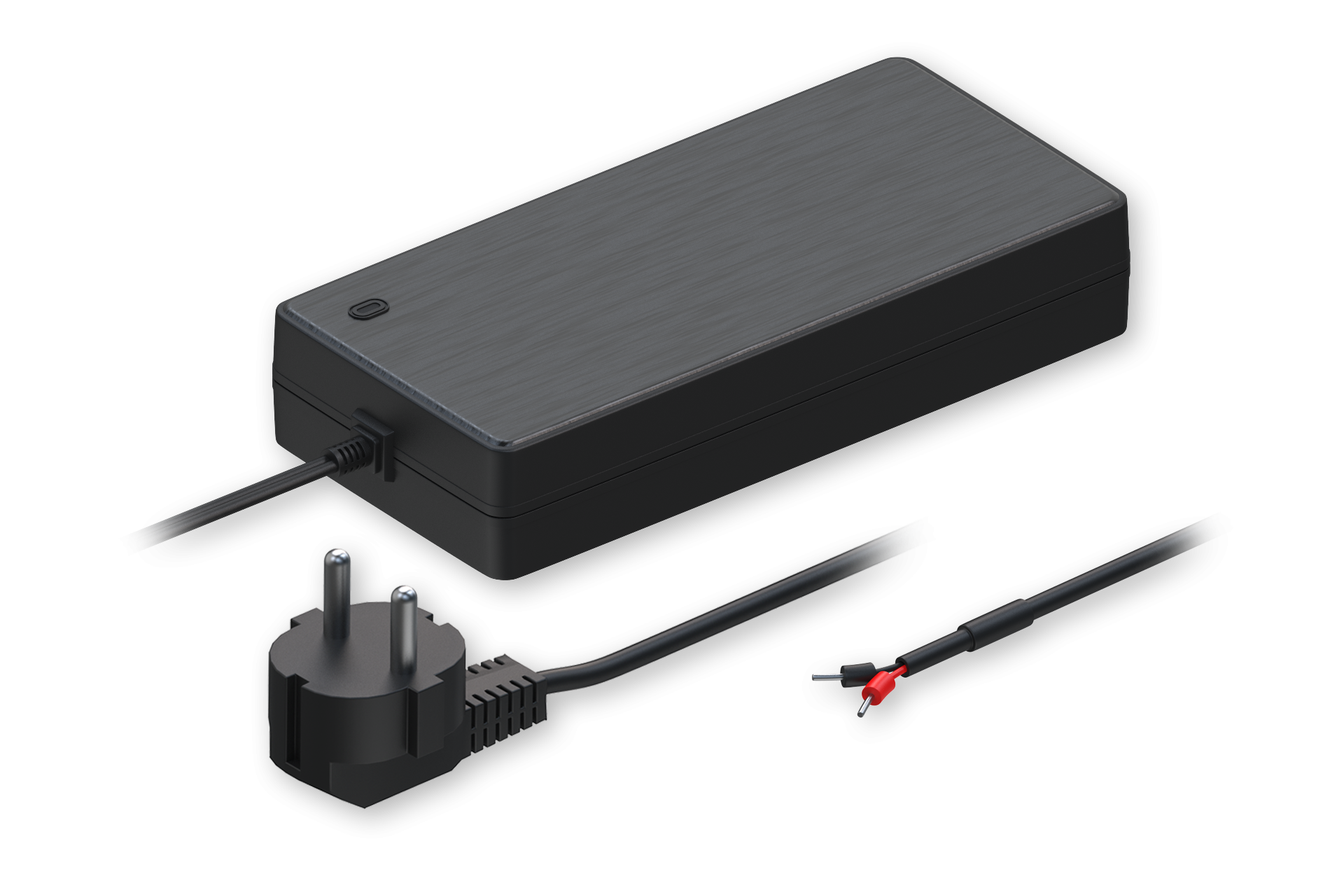

Teltonika PR320EUA – EU 2-poliges Netzteil, 250 W

AC/DC power adapters

Teltonika PR320EUA – EU 2-Pin Power Supply, 250 W

Price on request

Teltonika PR320EUA – EU 2-Pin Power Supply, 250 W. Key specifications for your installation:

Output voltage: 54 VDC
Input voltage range: 90 – 264 VAC
Input voltage: 100 – 240 VAC

View all specifications and documents ↓

SKU: TN-PR320EUA Category: AC/DC power adapters Brand:

Delivery time: 5–7 business days

Request a quote →

Delivery time and availability will be confirmed in your quote.

For longer lengths or custom cable lengths, please contact us.
Contact us / Request a quote ↗Product details are filled in automatically. Tell us the quantity or length you need.

Request a quote for this product

Request a quote with no obligation — no account needed.

Teltonika PR320EUA – EU 2-Pin Power Supply, 250 W

Teltonika PR320EUA – EU 2-Pin Power Supply, 250 WSKU: TN-PR320EUA

Please include the model or order code, quantity and required regional version. We will confirm price, availability and delivery with your quote.

Teltonika PR320EUA – EU 2-Pin Power Supply, 250 W

Manufacturer order code: PR320EUA

Technical specifications

Technical Data

Input voltage	100 – 240 VAC
Input frequency	50 / 60 Hz
Input current	3.9 A
Input connector	EU (Type F)
Output voltage	54 VDC
Output current	4.62 A
Output connector	2-pin, with cord end terminals
Weight	1080 g

Input voltage range	90 – 264 VAC
Input frequency range	47 – 63 Hz
Maximum input inrush current	60 A
Output voltage maximum deviation	51.3 – 56.7 VDC
Short circuit protection	✓
HIPOT (dielectric withstand test)	Primary to Secondary: 1500 VAC
Certification	Safety: IEC62368-1 (CB Scheme) EMC: EN 55032:2015, EN IEC 61000-3-2:2019, EN 61000-3-3:2013, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014, EN 61000-4-6:2014, EN 61000-4-8:2010, EN 61000-4-11:2004

Compatible models listed by the manufacturer

TSW040, TSW200, TSW202

Documentation and downloads

Manufacturer page, datasheet and downloads

Manufacturer technical information checked on 17 October 2026. Check compatibility, connectors, electrical limits, package contents and the complete order code before selection. Price and availability are confirmed on enquiry.

Manufacturer	Teltonika Networks
Manufacturer order code	PR320EUA
Feature 1	Power: 250 W
Feature 2	Regional version: EU
Input voltage	100 – 240 VAC
Input frequency	50 / 60 Hz
Input current	3.9 A
Input connector	EU (Type F)
Output voltage	54 VDC
Output current	4.62 A
Output connector	2-pin, with cord end terminals
Weight	1080 g
Input voltage range	90 – 264 VAC
Input frequency range	47 – 63 Hz
Maximum input inrush current	60 A
Output voltage maximum deviation	51.3 – 56.7 VDC
Short circuit protection	✓
HIPOT (dielectric withstand test)	Primary to Secondary: 1500 VAC
Certification	Safety: IEC62368-1 (CB Scheme) EMC: EN 55032:2015, EN IEC 61000-3-2:2019, EN 61000-3-3:2013, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014, EN 61000-4-6:2014, EN 61000-4-8:2010, EN 61000-4-11:2004
