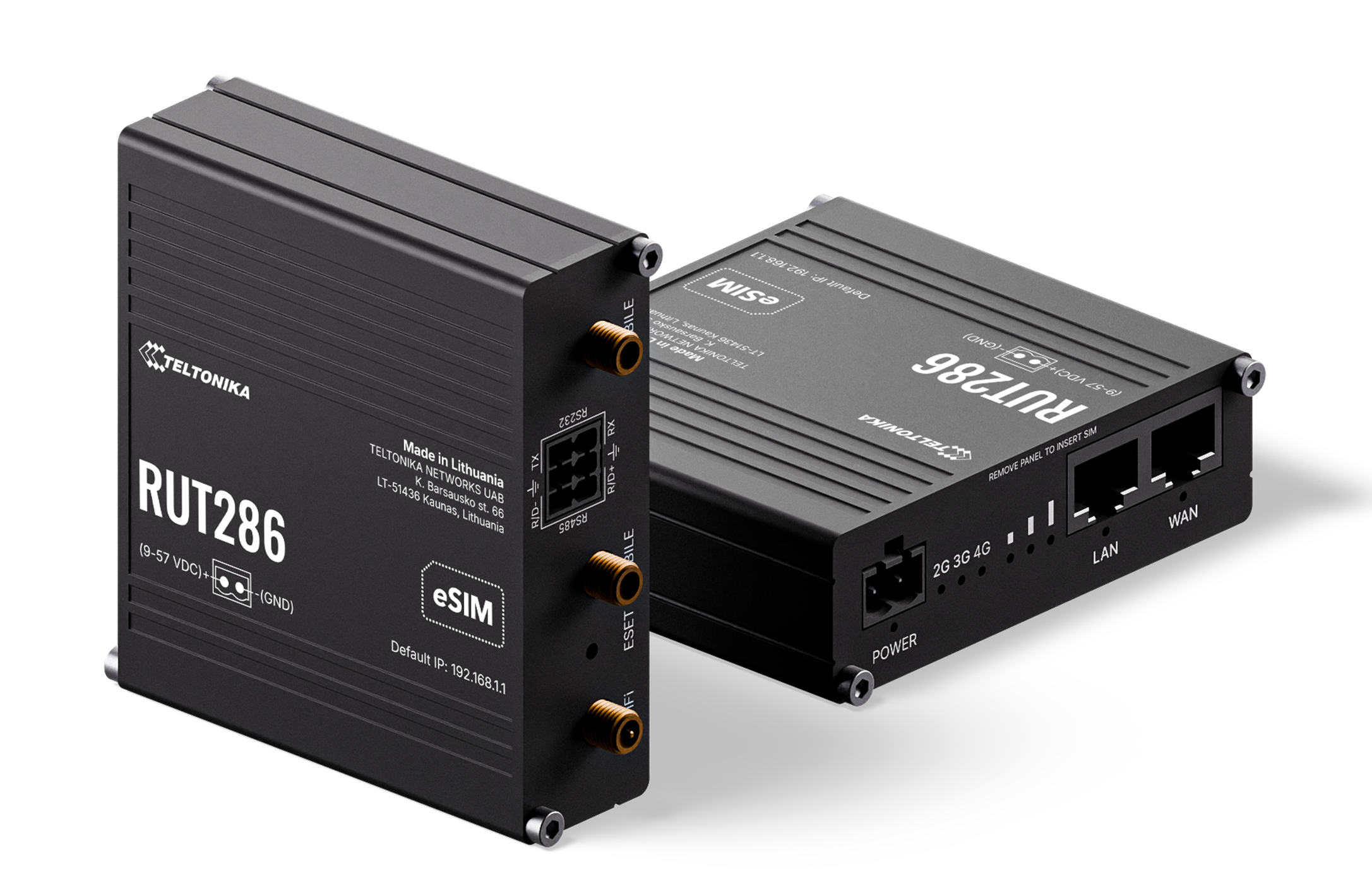

Teltonika RUT286 – router
- Mobile module: 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/ 5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL Kbps
- Wireless mode: 802.11b/g/n (Wi-Fi 4) Access Point (AP), Client (STA), Mesh (802.11s), Multi-AP
- Input voltage range: 9 - 57 VDC, reverse polarity protection, surge protection >58V @10us min
- Dimensions (W x H x D): 83 x 25 x 83 mm
- Operating temperature: -40 °C to 65 °C
Technical specifications
Mobile
| Mobile module | 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/ 5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL Kbps |
|---|---|
| 3GPP Release | Release 10 |
| eSIM | Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans |
| SIM switch | 2 x 2FF SIM and 1 x eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail |
| Status | IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, mobile signal graphs, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC |
| SMS | SMS status/configuration; email, HTTP and SMS forwarding; scheduling, automatic replies and SMPP. |
| USSD | Send and read USSD messages. |
| Block/Allow list | Operator or country based block/allow lists. |
| Multiple PDN | Multiple PDNs for separate network connections and services. |
| Band management | Band locking and active-band display. |
| SIM idle protection service | Periodically connect through the unused SIM to reduce inactivity-related SIM blocking. |
| SIM PIN code management | Set, change or disable the SIM PIN. |
| APN | Auto APN |
| Bridge | Bridge the cellular provider connection to a LAN device. |
| Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
Wireless
| Wireless mode | 802.11b/g/n (Wi-Fi 4) Access Point (AP), Client (STA), Mesh (802.11s), Multi-AP |
|---|---|
| Wi-Fi security | WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) |
| SSID/ESSID | SSID stealth mode and access control based on MAC address |
| Wi-Fi users | Up to 50 simultaneous connections |
| Wireless Connectivity Features | Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) |
| Wireless MAC filter | Allowlist, blocklist |
| Wireless QR code generator | Join Wi-Fi by scanning a QR code. |
| TravelMate | Forward Wi-Fi hotspot landing page to a subsequent connected device |
Ethernet
| WAN | 1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
|---|---|
| LAN | 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
System Characteristics
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
|---|---|
| RAM | 128 MB, DDR2 |
| FLASH storage | 32 MB, NOR Flash |
Power
| Connector | 2-pin industrial DC power socket |
|---|---|
| Input voltage range | 9 - 57 VDC, reverse polarity protection, surge protection >58V @10us min |
| PoE (passive) | Passive PoE mode A/B 1,2,4,5 (+) / 3,6,7,8 (-) through LAN port. Passive PoE voltage: 16 - 57 VDC |
| Power consumption | Idle: < 2 W, Max: < 6.5 W |
Physical Interfaces
| Ethernet | 2 x RJ45 ports, 10/100 Mbps |
|---|---|
| Status LEDs | 3 x Connection type status LEDs, 3 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED |
| SIM | 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, double stacked SIM tray |
| Power | 1 x 2-pin power connector |
| Antennas | 2 x SMA for Mobile, 1 x RP-SMA for Wi-Fi |
| RS232, RS485 | 1 x 6-pin terminal block |
| Reset | Reboot/User default reset/Factory reset button |
Physical Specification
| Casing material | Anodised aluminium housing and panels |
|---|---|
| Dimensions (W x H x D) | 83 x 25 x 83 mm |
| Weight | 132 g |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
Operating Environment
| Operating temperature | -40 °C to 65 °C |
|---|---|
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
Network
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
|---|---|
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP(S), SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN |
| Connection monitoring | Ping/Wget and periodic reboot; LCP/ICMP link checks. |
| Firewall | Port forwarding, traffic/custom rules and adjustable TTL targets. |
| Firewall status page | Firewall rules, counters and statistics in the status view. |
| Port management | Enable/disable ports; configure speed and auto-negotiation. |
| Network topology | Topology view of connected network devices. |
| DHCP | Static/dynamic allocation, DHCP relay/server, status and static MAC leases with wildcards. |
| QoS / Smart Queue Management (SQM) | Priority queues by source/destination, service, protocol or port; WMM and 802.11e. |
| DNS over HTTPS | DNS proxy using HTTPS for encrypted DNS queries. |
| DDNS | More than 77 preconfigured providers; additional providers configurable manually. |
| Network backup | Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover |
| Load balancing | Balance Internet traffic over multiple WAN connections |
| Hotspot | Captive portal with internal/external RADIUS, RADIUS MAC, SMS and SSO authentication; internal/external landing page, walled garden, scripts, URL parameters, users/groups and limits; 9 editable themes with theme import/export. |
| Hotspot 2.0 | Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks |
| SSHFS | Mount remote file systems through SSH. |
| VRF support | Initial virtual routing and forwarding (VRF) support |
| Traffic Management | Live traffic monitoring, radio-signal charts and usage history. |
| IGMP Proxy | Possibility to relay multicast membership messages between hosts and a router, enabling multicast traffic to flow across different network segments |
Security
| Authentication | PSK, digital/X.509 certificates, TACACS+ and internal/external RADIUS; IP/login blocking, timed lockouts and random password generation. |
|---|---|
| Firewall | WebUI presets and CLI configuration; DMZ, NAT, NAT-T and NAT64. |
| Attack prevention | DDOS prevention, SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention, port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port based and tagged VLAN separation. |
| Mobile quota control | Cellular data limits with period, start time, warning threshold and notification number. |
| WEB filter | Website blocklists and allowlists. |
| Access control | Access rules for SSH, WebUI, CLI and Telnet. |
| Certificate Manager | Create CA, server/client, Let’s Encrypt and SCEP certificates. |
| 802.1x | Port-based network access control client and server support |
VPN
| OpenVPN | Simultaneous server and multiple clients; 27 encryption options. |
|---|---|
| OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
| IPsec | XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
| GRE | GRE and GRE over IPsec tunnels. |
| PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support, IPv6 support |
| Stunnel | TLS proxy for existing client/server applications. |
| DMVPN | Scalable IPsec VPN: phase 2, phase 3 and dual-hub operation. |
| SSTP | SSTP client. |
| ZeroTier | ZeroTier client. |
| WireGuard | WireGuard client and server. |
| Tinc | Tinc client/server with encryption, authentication and compression. |
| EoIP | Ethernet over IP (EoIP) tunnelling is a protocol based on GRE RFC 1701 that creates an Ethernet tunnel between two routers on top of an IP connection |
| OpenConnect | Cross-platform multi-protocol SSL VPN client which supports a number of VPN protocols |
BacNET
| Supported modes | Router |
|---|---|
| Supported connection types | IP, RTU (RS485) |
| Configuration options | Multiple BACnet/IP interfaces, network-number assignment and preset BDT entries for BBMD. |
OPC UA
| Supported modes | Client, Server |
|---|---|
| Supported connection types | TCP |
MODBUS
| Supported modes | Server, Client |
|---|---|
| Supported connection types | RTU (RS232, RS485), TCP |
| Custom registers | File backed custom Modbus TCP register blocks for read/write requests. |
| Supported data formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
Data to Server
| Protocol | HTTP(S), MQTT, Azure MQTT |
|---|---|
| Data to server | Collect parameters across sources/protocols and transmit to one server; custom Lua scripts supported. |
Modbus MQTT GATEWAY
| Modbus MQTT Gateway | Read Modbus-server data and send commands through an MQTT broker. |
|---|
DNP3
| Supported modes | Station, Outstation |
|---|---|
| Supported connection types | RTU(RS232), RTU(RS485), TCP |
DLMS/COSEM
| DLMS Support | Utility-meter data exchange using DLMS. |
|---|---|
| Supported modes | Client |
| Supported connection types | RTU(RS232), RTU(RS485), TCP |
API
| Teltonika Networks Web API (beta) support | Configurable API endpoints to read/change device data; developer documentation available. |
|---|
Site Manager
| Supported modes | Manager |
|---|---|
| Functionalities | Manage TAP access points and Teltonika managed switches: pairing/grouping, FOTA, status, scheduled reboot with ping/Wget checks, SSIDs and VLANs. |
Monitoring & Management
| WEB UI | HTTP/HTTPS administration: status, settings, firmware, CLI, diagnostics, remote/event/system/kernel logs and update notifications. |
|---|---|
| FOTA | Server based firmware updates with notifications. |
| SSH | SSH (v1, v2) |
| SMS | Status and configuration by SMS. |
| Call | Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off |
| Receive email message status alerts of various services | |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap, Brute force protection |
| JSON-RPC | Management API through HTTP/HTTPS. |
| RMS | Teltonika Remote Management System (RMS) |
IoT Platforms
| ThingWorx | Monitor WAN type/IP, operator, cellular signal and network type. |
|---|---|
| Cumulocity - Cloud of Things | Monitor device/revision/serial, WAN, cell ID, ICCID/IMEI, connection, operator and signal; remote reboot and firmware updates. |
| Azure IoT Hub | Cloud telemetry through Data to Server; RutOS API direct methods; Plug and Play with Device Provisioning Service. |
| AWS IoT Core | AWS IoT integration with device API calls through AWS Jobs. |
Firmware/Configuration
| WEB UI | Local/server firmware update, configuration profiles and backups. |
|---|---|
| FOTA | Firmware update. |
| RMS | Batch firmware/configuration updates for multiple devices. |
| Keep settings | Retain configuration during firmware updates. |
| Factory settings reset | Restore manufacturer defaults, including IP, PIN and user data settings. |
FIRMWARE CUSTOMISATION
| Operating system | RutOS (OpenWrt based Linux OS) |
|---|---|
| Supported languages | Busybox shell, Lua, C, C++ |
| Development tools | SDK with build environment. |
| GPL customization | Customize firmware branding, colours, logos and web applications. |
| Package Manager | Install additional software packages on the device. |
Serial
| RS232 | RS232 interface without flow control signals |
|---|---|
| RS485 | Half duplex (2-wire) RS485 interface |
| Serial functions | Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client |
SD CARD
| Physical size | Micro SD (internal) |
|---|---|
| Applications | Samba share |
| Capacity | Up to 2 TB |
| Storage formats | FAT32, NTFS, ext2, ext3, ext4 |
POE IN
| PoE IN ports | 1 x PoE In |
|---|---|
| PoE standards | Active PoE input 802.3af on LAN port |
Accessories with manufacturer-listed compatibility
Check connector, regional version and any limitations on the accessory page.
- Teltonika PR322UK7 – UK Single Port Gigabit PoE Injector, 15 W
- Teltonika PR322EU7 – EU Single Port Gigabit PoE Injector, 15 W
- Teltonika PR325EUB – EU Single Port Gigabit PoE Injector, 30 W
- Teltonika PR323EUB – EU Single Port 10/100 Mbps Passive PoE Injector, 19 W
- Teltonika PR3PDNP0 – DIN Rail Power Supply, 20 W, 12 V
- Teltonika BAT120000000 – Bat120 – Uninterruptible Power Supply
- Teltonika PR2VM20M – SMA Cable Extension
- Teltonika PR1KCL25 – Combo MIMO Mobile Roof SMA Antenna
- Teltonika PR1URF51 – Wi-Fi SMA Antenna
- Teltonika PR1KRF30 – Wi-Fi Magnetic SMA Antenna
- Teltonika PR1AS420 – Mobile Adhesive SMA Antenna
- Teltonika PR1US450 – Angled Compact Mobile SMA Antenna
- Teltonika PR1CS450 – Straight Compact Mobile SMA Antenna
- Teltonika PR1US440 – Mobile SMA Antenna
- Teltonika PR1KS210 – Mobile Magnetic SMA Antenna
- Teltonika PR5MEC23 – DIN Rail Kit Adapter
- Teltonika PR5MEC12 – Surface Mounting Kit
- Teltonika PR5MEC00 – DIN Rail Kit
- Teltonika PR5MEC11 – Compact DIN Rail Kit
- Teltonika PR5MEC32 – RJ45 Dust Covers
- Teltonika PR5MEC19 – Sim Adapter Kit
- Teltonika PR2LA15B – Ethernet Cable 1.5M
Documentation and downloads
Technical information checked against the linked manufacturer page on 17 October 2026. Radio bands, approvals and package contents can depend on the full order code and region. Software features depend on firmware, configuration and any additional packages or licences. Price and availability are confirmed on enquiry.
