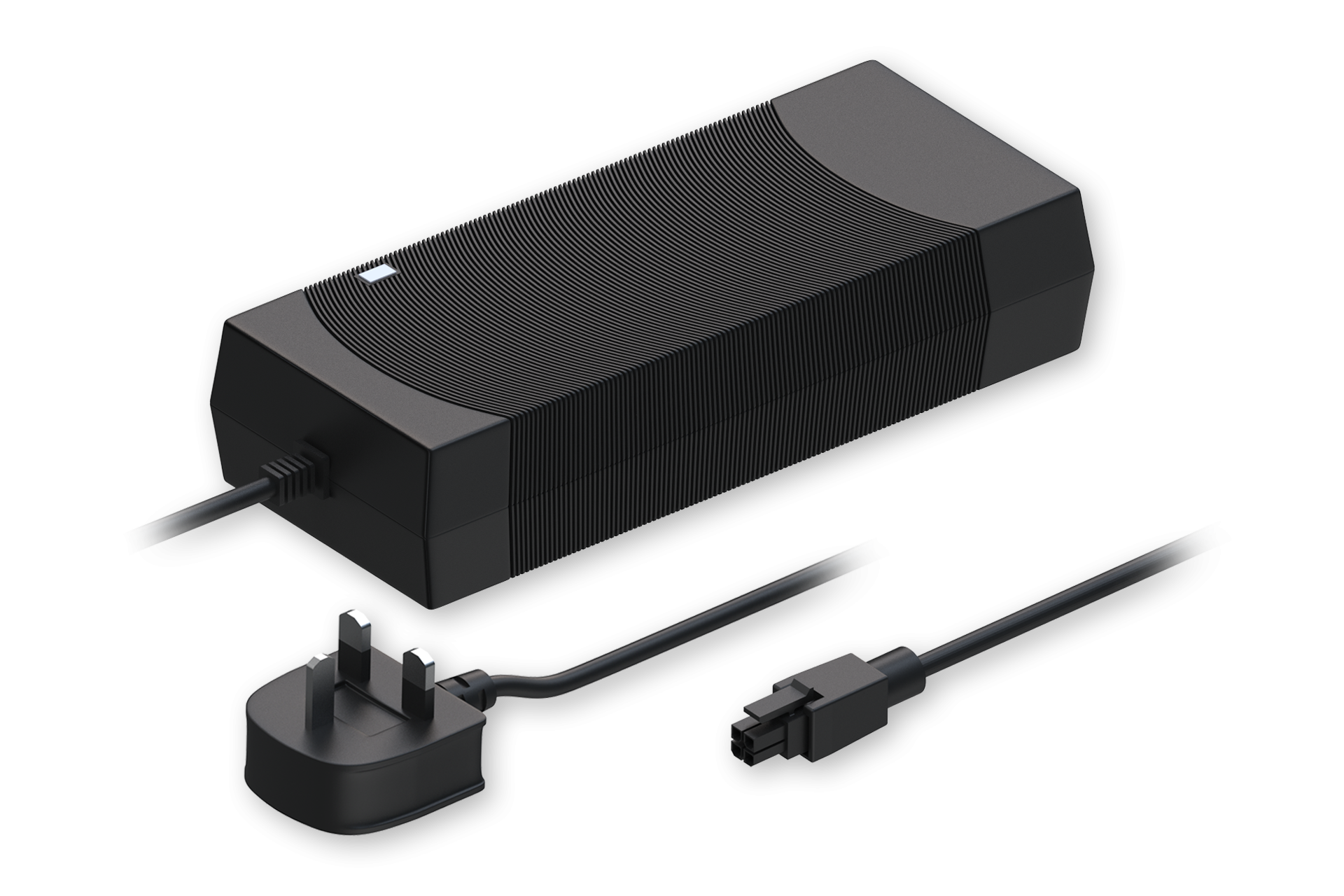

Teltonika PR313UK3 – UK Power Supply, 130 W
Manufacturer order code: PR313UK3
Technical specifications
Technical Data
| Input voltage | 100 – 240 VAC |
|---|---|
| Input frequency | 50 / 60 Hz |
| Input current | 2.5 A |
| Input connector | UK (Type G) |
| Output voltage | 50 VDC |
| Output current | 2.6 A |
| Output connector | 4-pin, 3 mm pitch |
| Weight | 660 g |
| Input voltage range | 90 – 264 VAC |
|---|---|
| Input frequency range | 47 – 63 Hz |
| Maximum input inrush current | 50 A |
| Output voltage maximum deviation | 47.5 – 52.5 VDC |
| Short circuit protection | ✓ |
| HIPOT (dielectric withstand test) | Primary to Secondary: 4242 VDC |
| MTBF | 50000 h |
| PSU efficiency standard | DoE Level VI |
| Certification | Safety: EN 60335-1:2012+A11:2014+A13:2017, EN 60335-2-29:2004+A2:2010+A11:2018, EN 62233:2008 EMC: EN 55014-1:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55014-2:2015 (IEC 61000-4-2:2008, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004+A1:2017) |
Compatible models listed by the manufacturer
Documentation and downloads
Manufacturer technical information checked on 17 October 2026. Check compatibility, connectors, electrical limits, package contents and the complete order code before selection. Price and availability are confirmed on enquiry.
