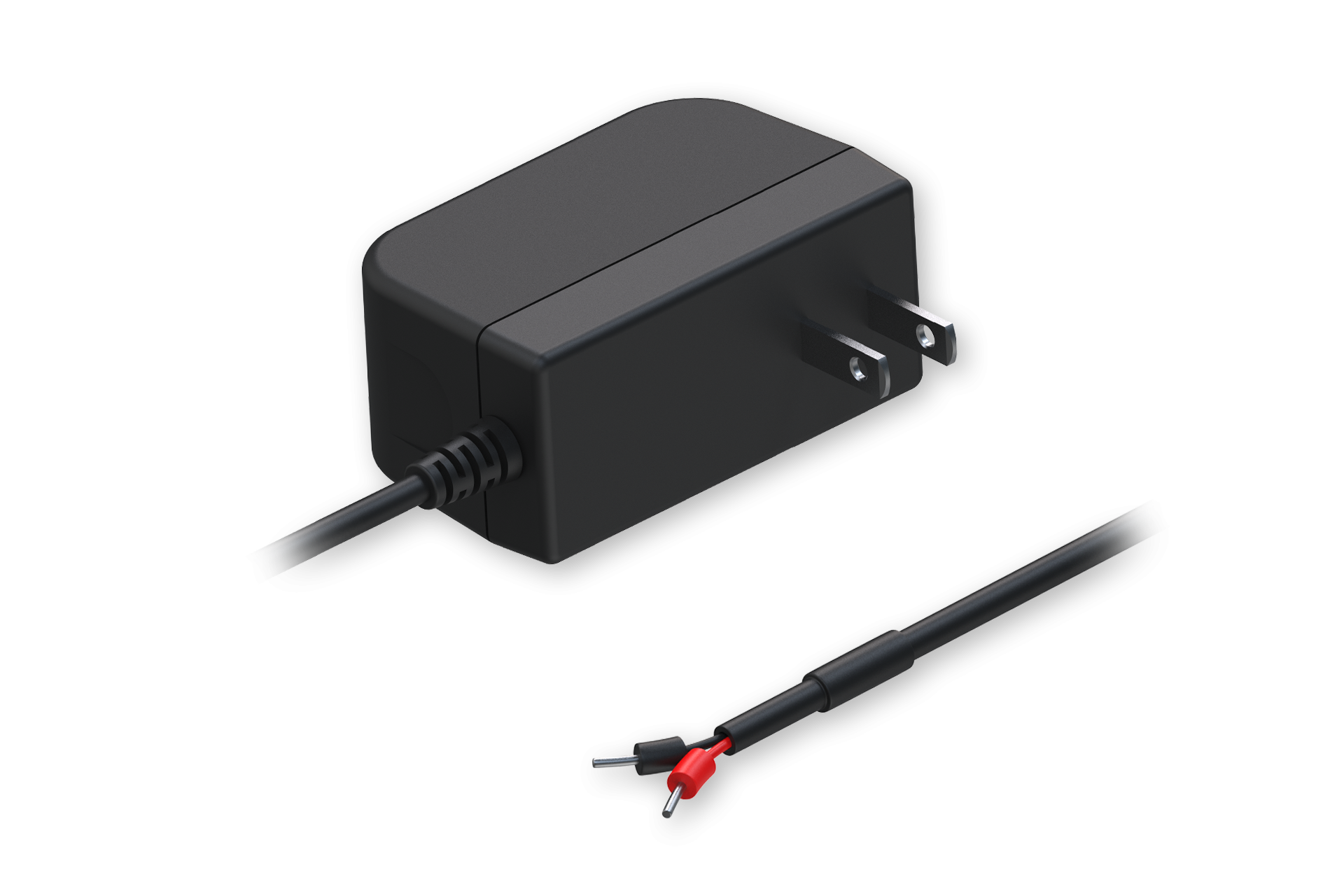

Teltonika PR315USA – US 2-Pin Power Supply, 18 W

Price on request

Teltonika PR315USA – US 2-Pin Power Supply, 18 W. Key specifications for your installation:

Output voltage: 12 VDC
Input voltage: 100 – 240 VAC
Input frequency: 50 / 60 Hz

View all specifications and documents ↓

SKU: TN-PR315USA Category: AC/DC power adapters Brand:

Delivery time: 5–7 business days

Request a quote →

Delivery time and availability will be confirmed in your quote.

For longer lengths or custom cable lengths, please contact us.
Contact us / Request a quote ↗Product details are filled in automatically. Tell us the quantity or length you need.

Request a quote for this product

Request a quote with no obligation — no account needed.

Teltonika PR315USA – US 2-Pin Power Supply, 18 W

Teltonika PR315USA – US 2-Pin Power Supply, 18 WSKU: TN-PR315USA

Please include the model or order code, quantity and required regional version. We will confirm price, availability and delivery with your quote.

Teltonika PR315USA – US 2-Pin Power Supply, 18 W

Manufacturer order code: PR315USA

Technical specifications

Input voltage	100 – 240 VAC
Input frequency	50 / 60 Hz
Input current	0.6 A
Output voltage	12 VDC
Output current	1.5 A
Input voltage absolute maximum	90 – 264 VAC
Input frequency absolute maximum	47 – 63 Hz
Inrush current	60 A
Output voltage absolute maximum	11.4 – 12.6 VDC
Short circuit protection	✓
HIPOT (dielectric withstand test)	Primary to Secondary: 4242 VDC
MTBF	50000 h
Input connector	US (Type A)
Output connector	2-pin, with cord end terminals
Weight	106 g
Certification	Safety: CSA C22.2 No. 62368-1-14, 2nd Ed. EMC: FCC Part 15, Subpart B: 2023, ANSI C63.4:2014 ammended as per ANSI C63.4:2017

Compatible models listed by the manufacturer

RUTM55, TSW030, TSW101, TSW210, TSW212

Documentation and downloads

Manufacturer page, datasheet and downloads

Manufacturer technical information checked on 17 October 2026. Check compatibility, connectors, electrical limits, package contents and the complete order code before selection. Price and availability are confirmed on enquiry.

Manufacturer	Teltonika Networks
Manufacturer order code	PR315USA
Feature 1	Power: 18 W
Feature 2	Regional version: US
Input voltage	100 – 240 VAC
Input frequency	50 / 60 Hz
Input current	0.6 A
Output voltage	12 VDC
Output current	1.5 A
Input voltage absolute maximum	90 – 264 VAC
Input frequency absolute maximum	47 – 63 Hz
Inrush current	60 A
Output voltage absolute maximum	11.4 – 12.6 VDC
Short circuit protection	✓
HIPOT (dielectric withstand test)	Primary to Secondary: 4242 VDC
MTBF	50000 h
Input connector	US (Type A)
Output connector	2-pin, with cord end terminals
Weight	106 g
Certification	Safety: CSA C22.2 No. 62368-1-14, 2nd Ed. EMC: FCC Part 15, Subpart B: 2023, ANSI C63.4:2014 ammended as per ANSI C63.4:2017
