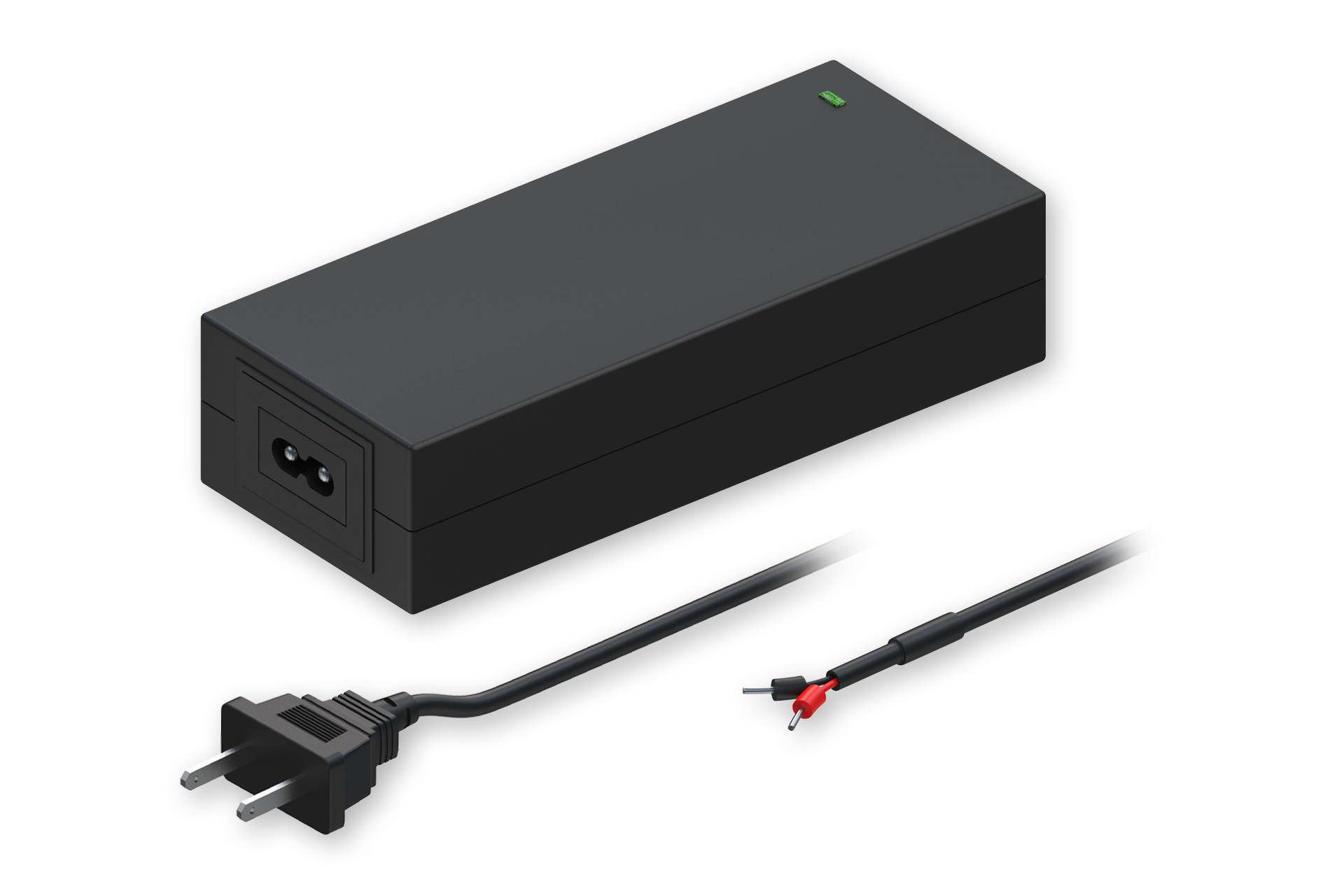

Teltonika PR317USA – US 2-Pin Power Supply, 62 W
Manufacturer order code: PR317USA
Technical specifications
Technical Data
| Input voltage | 100 – 240 VAC |
|---|---|
| Input frequency | 50 / 60 Hz |
| Input current | 1.5 A |
| Input connector | US (Type A) |
| Output voltage | 48 VDC |
| Output current | 1.3 A |
| Output connector | 2-pin, with cord end terminals |
| Weight | 297 g |
| Input voltage range | 90 – 264 VAC |
|---|---|
| Input frequency range | 47 – 63 Hz |
| Maximum input inrush current | 50 A |
| Output voltage maximum deviation | 45.6 – 50.4 VDC |
| Short circuit protection | ✓ |
| HIPOT (dielectric withstand test) | Primary to Secondary: 4000 VDC |
| MTBF | 50000 h |
| Certification | Safety: UL 60950-1, CAN/CSA C22.2 No. 60950-1-07 EMC: 47 CFR FCC Part 15 Subpart B: 2016, ANSI C63.4:2014 |
Compatible models listed by the manufacturer
RUTM20, TSW040, TSW200, TSW202, TSW210, TSW212
Documentation and downloads
Manufacturer technical information checked on 17 October 2026. Check compatibility, connectors, electrical limits, package contents and the complete order code before selection. Price and availability are confirmed on enquiry.
