ELITRONIC LIYY 4X0,14 – DIN47100, GREY RAL 7001
Manufacturer article number: 0500202 · TKD
Article specifications
| Variant | ELITRONIC LIYY |
|---|---|
| Dimension | 4 X 0,14 |
| Outer-Ø [mm] nom. | 3,5 |
| Cu Index [kg/km] | 5.4 |
| Weight [kg/1.000] | 16.0 |
Series information: ELITRONIC® LIYY
Application
data transmission cable, control and connecting cable predominantly for transmission of analog and digital signals in process controlled facilities in measurement and control technology. For fixed laying and flexible applications with undefined cable routing and without tensile stress. Suitable for use in dry and humid rooms. Outdoor use only with UV-protection, no laying underground.
SPECIAL FEATURES
- largely resistant to acids, alkalis and certain oils.
- LABS-free/silicone-free (during production)
- Flame retardant & tested according to UN/ECE-R 118.02
REMARKS
- RoHS compliant
- Compliant with the 2014/35/EU Directive (“Low Voltage Directive“) CE
- Special versions, other dimensions, cross-sections, wire and sheath colors are available on request
DESIGN
| Conductor material | bare copper strand |
|---|---|
| Conductor class | acc. to IEC 60228 cl. 5; exception: 0,34 mm², stranded (7 x 0,25 mm) |
| Core insulation | PVC |
| Core identification | acc. to DIN 47100 different colours |
| Stranding | stranded in layers |
| Outer sheath material | PVC |
| Sheath colour | grey, RAL 7001 |
ELECTRICAL PROPERTIES
| Rated voltage AC IEC | Uo/U: 250 V; peak-voltage on 0,14 mm² 350 V; > 0,14 mm² 500 V |
|---|---|
| Testing voltage | on 0,14 mm² core/core: 1,2 kV; > 0,14 mm²: core/core: 1,5 kV |
| Conductor resistance | acc. to IEC 60228 cl. 5 |
| Insulation resistance | min. 20 MΩ x km |
| Current carrying capacity | acc. to DIN VDE, see Technical Guidelines |
| Capacity | ca. 120 nF/km |
MECHANICAL & DYNAMIC PROPERTIES
| Min. bending radius fixed | up to 12 mm Ø 5 x d; up to 20 mm Ø 7,5 x d; > 20 mm Ø 10 x d |
|---|---|
| Min. bending radius moved | up to 12 mm Ø 10 x d; up to 20 mm Ø 15 x d; > 20 mm Ø 20 x d |
THERMAL PROPERTIES
| Operat. temp. fixed min./max. [°C] | -30 °C / +80 °C |
|---|---|
| Operat. temp. moved min/max [°C] | -5 °C / +70 °C |
STANDARDS & APPROVALS
| Standard | similar to VDE 0812 |
|---|---|
| Approvals | UN/ECE-R 118.02: DEKRA TR 202460180 |
Manufacturer documents

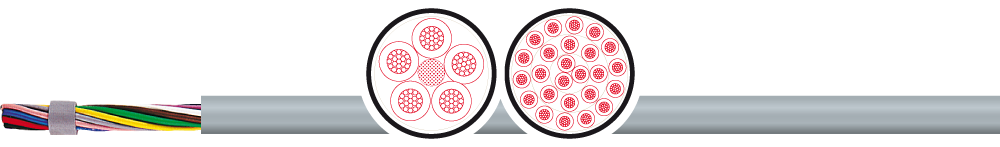

Series illustration. Dimensions and execution follow the article specifications.
