H07Z-K 1X35 - LIGHTBLUE, HALOGEN-FREE

H07Z-K 1X35 - LIGHTBLUE, HALOGEN-FREE

Manufacturer article number: 0502452 · TKD

Article specifications

Variant	H07Z-K
Dimension	1 X 35
Outer-Ø [mm] nom.	9,7 - 12,1
Cu Index [kg/km]	336.0
Weight [kg/1.000]	348.0
Single core color	light blue

Series information: LIHvz, H05Z-K, H07Z-K

Application

LIHvz halogen-free switching strand for wiring telecommunication units and electrical modules as well as tele- communication facilities. H05Z-K and H07Z-K as halogen-free and environmentally single core for internal wiring of devices as well as protected laying within and on shiners. Laying within pipes on-wall and in-wall permitted for signal facilities.

SPECIAL FEATURES

• largely resistant to acids, bases and specified types of oil
• halogen-free and flame-retardant
• no direct laying on pallets, in channels or trays (exceptional as potential compensation)
• all usual standard colours available

REMARKS

• RoHS compliant
• Compliant with the 2014/35/EU Directive (''Low Voltage Directive'') CE
• LABS-free / silicone-free (during production)
• Special versions, other dimensions, cross-sections, wire and sheath colors are available on request

DESIGN

Conductor material	LIHvz: copper strand tinned; H05Z-K, H07Z-K: bare copper strand.
Conductor class	acc. to IEC 60228 class 5
Core insulation	halogen-free special compound
Core identification	different colours

ELECTRICAL PROPERTIES

Rated voltage AC IEC	H05Z-K: 300/500 V; H07Z-K: 450/750 V peak voltage LiHvz: 500 V (0,14mm²), 900 V (0,25mm²)
Testing voltage	LiHvz: 1,2kV (0,14mm²) 2,5kV (0,25mm²) H05Z-K: 2kV; H07Z-K: 2,5kV
Conductor resistance	at +20 °C LiHvz acc. to VDE 0812; H05Z-K and H07Z-K acc. to IEC 60228
Current carrying capacity	acc. to. DIN VDE, see Technical Guidelines

MECHANICAL & DYNAMIC PROPERTIES

Min. bending radius fixed	4 x d
Min. bending radius moved	15 x d

PROPERTIES IN CASE OF FIRE

Halogen-free	acc. to IEC 60754
Smoke density	acc. to IEC 61034
Burning behavior	self-extinguishing and flame-retardant acc. to IEC 60332-1-2

STANDARDS & APPROVALS

Standard	LiHvz similar to VDE0812; H05Z-K and H07Z-K acc. to EN 50525-3-41
Approvals	H05Z-K und H07Z-K: HAR

Manufacturer documents

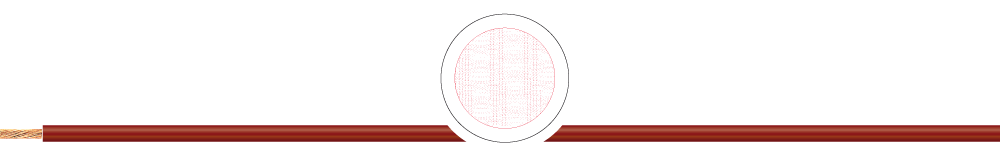

Series illustration. Dimensions and execution follow the article specifications.
