PAARTRONIC-CH LIHCH (TP) 20X2X0,14 – DIN47100, GREY RAL 7032
Manufacturer article number: 0507053 · TKD
Article specifications
| Variant | PAARTRONIC-CH LIHCH (TP) |
|---|---|
| Dimension | 20 X 2 X 0,14 |
| Outer-Ø [mm] nom. | 10,3 |
| Cu Index [kg/km] | 97.0 |
| Weight [kg/1.000] | 184.0 |
Series information: PAARTRONIC®-CH LIHCH (TP)
Application
halogen-free and environmentally data transmission cable, control and connecting cable predominantly for transmission of analog and digital signals in process controlled facilities in measurement and control technology, in fire vulnerable areas and facilities with high concentration of people and property values, for lossless transmission of datas and signals. For fixed laying and flexible applications with undefined cable routing and without tensile stress. Suitable for use in dry and humid rooms. Outdoor use only with UV-protection, no laying underground.
SPECIAL FEATURES
- twisted pairs
- free from lacquer damaging substances and silicone (during production)
- FRNC (Flame Retardant, Non Corrosive)
- LSF 0H (Low smoke in fume, zero halogen)
- recommended for EMC-applications
REMARKS
- RoHS compliant
- compliant with the 2014/35/EU Directive (“Low Voltage Directive“) CE
- also available as unshielded version PAARTRONIC® LIHH (TP)
- Special versions, other dimensions, cross-sections, core and sheath colors are available on request.
DESIGN
| Conductor material | bare copper strand |
|---|---|
| Conductor class | acc. to IEC 60228 cl. 5; exception: 0,34 mm², stranded (7 x 0,25 mm) |
| Core insulation | special halogen-free compound |
| Core identification | acc. to DIN 47100 different colours |
| Stranding | 2 cores twisted to a pair; pairs stranded in layers |
| Protection against contact | plastic foil |
| Overall shield | copper braid tinned; coverage approx. 85% |
| Outer sheath material | special halogen-free compound |
| Sheath colour | grey, RAL 7032 |
ELECTRICAL PROPERTIES
| Rated voltage AC IEC | 250 V; peak-voltage on 0,14 mm²: 350 V; > 0,14 mm²: 500 V |
|---|---|
| Testing voltage | on 0,14 mm²: core/core: 1.2 kV; core/shield: 1 kV > 0,14 mm²: core/core: 1.5 kV; core/shield: 1 kV |
| Conductor resistance | acc. to IEC 60228 cl. 5 |
| Insulation resistance | min. 20 MΩ xkm |
| Current carrying capacity | acc. to DIN VDE, s. Techn. Guidelines |
| Capacity | core/core ca. 120 nF/km; core/shield ca. 160 nF/km |
MECHANICAL & DYNAMIC PROPERTIES
| Min. bending radius fixed | up to 20 mm Ø 7,5 x d; > 20 mm Ø 10 x d |
|---|---|
| Min. bending radius moved | up to 20 mm Ø 15 x d; > 20 mm Ø: 20 x d |
THERMAL PROPERTIES
| Operat. temp. fixed min./max. [°C] | -30 °C / +80 °C |
|---|---|
| Operat. temp. moved min/max [°C] | -5 °C / +70 °C |
PROPERTIES IN CASE OF FIRE
| Halogen-free | acc. to IEC 60754-2 |
|---|---|
| Burning behavior | flame-retardant acc. to IEC 60332-3-24 (Cat. 24) |
Manufacturer documents

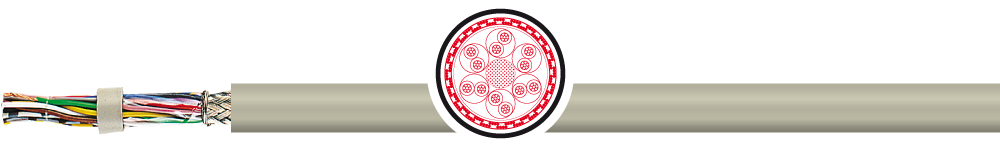

Series illustration. Dimensions and execution follow the article specifications.
