MULTINORM-OZ H05VV5-F 2X0,5 (AWG21) – HAR/UL/CSA, GREY RAL 7001
Manufacturer article number: 1000013 · TKD
Article specifications
| Variant | MULTINORM H05VV5-F HAR/UL/CSA |
|---|---|
| Dimension | 2 X 0,5 (AWG 21) |
| Outer-Ø [mm] nom. | 5,8 |
| Cu Index [kg/km] | 9.6 |
| Weight [kg/1.000] | 46.0 |
Series information: MULTINORM H05VV5-F HAR/UL/CSA 2-NORM (H)05VV5-F UL/CSA
Application
power, control and connecting cable in electrical facilities, for fixed laying and casually movement without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms (also water-oil mixture). Outdoor use only with UV-protection, no laying underground.
SPECIAL FEATURES
- increased resistance to oil by special PVC outer sheath, largely resitant to acids and bases acc. to EN 50363-4-1 & UL 1581 T50.182
- due to UL/CSA approval up to 600 V parallel laying with other cables with identical current voltage is permitted
- international approvals (HAR/UL/CSA)
REMARKS
- RoHS compliant
- Compliant with the 2014/35/EU Directive (“Low Voltage Directive“) CE
- LABS/silicon-free (during production)
- up to and including 2.5 mm²: MULTINORM H05VV5-F HAR/UL/CSA from 4 mm²: 2-NORM (H)05VV5-F UL/CSA
- Special versions, other dimensions, cross-sections, core and sheath colors according to your specifications on request
DESIGN
| Conductor material | bare copper strand |
|---|---|
| Conductor class | acc. to IEC 60228 cl. 5 |
| Core insulation | PVC |
| Core identification | acc. to DIN VDE 0293 black cores with white numerals; G = with GNYE |
| Stranding | stranded in layers |
| Outer sheath material | PVC |
| Sheath colour | grey, RAL 7001 |
ELECTRICAL PROPERTIES
| Rated voltage AC IEC | Uo/U: HAR 300/500 V; UL/CSA 600 V |
|---|---|
| Testing voltage | 3 kV |
| Conductor resistance | acc. to IEC 60228 cl. 5 |
| Insulation resistance | min. 20 MΩ x km |
| Current carrying capacity | acc. to DIN VDE, see technical Guidelines |
MECHANICAL & DYNAMIC PROPERTIES
| Min. bending radius fixed | 4 x d |
|---|---|
| Min. bending radius moved | 12,5 x d |
THERMAL PROPERTIES
| Operat. temp. fixed min./max. [°C] | HAR: -40 °C / +70 °C; UL/CSA: -40 °C / +90 °C |
|---|---|
| Operat. temp. moved min/max [°C] | HAR: -5 °C / +70 °C; UL/CSA: -5 °C / +90 °C |
| Temp. at conductor in operation max [°C] | +70 °C in operation; +150 °C in case of short-circuit |
STANDARDS & APPROVALS
| Standard | EN 50525-2-51 / VDE 0285-525-2-51; UL-Style 2517/2587 und CSA C22.2 No. 210.2-M90 AWM I A/B II A/B |
|---|---|
| Approvals | HAR: 300/500 V – 70 °C | UL/CSA 600 V – 90 °C |
Manufacturer documents

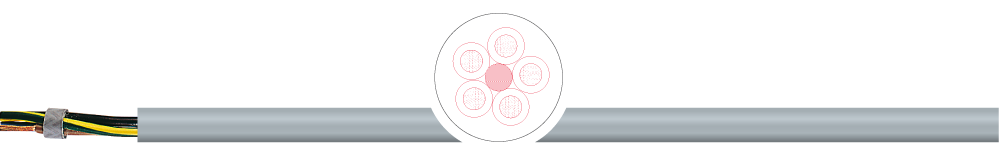

Series illustration. Dimensions and execution follow the article specifications.
