H05VVC4V5-K 34G0,75 – 300/500 V, GREY RAL 7001
Manufacturer article number: 1000222 · TKD
Article specifications
| Variant | H05VVC4V5-K |
|---|---|
| Dimension | 34 G 0,75 |
| Outer-Ø [mm] nom. | 21,4 – 26,2 |
| Cu Index [kg/km] | 340.0 |
| Weight [kg/1.000] | 821.0 |
Series information: H05VVC4V5-K HAR
Application
power, control and connecting cable in electrical facilities for lossless data and signal transmission, fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid, wet rooms (also water-oil mixture). Outdoor use only with UV-protection, no laying underground.
SPECIAL FEATURES
- increased resistance to oil by special PVC outer sheath, largely resistant to acids and bases acc. to EN 50363-4-1
- additional mechanical protection by inner sheath
- EMC compliant shielding
- HAR-approval for Europe
REMARKS
- RoHS compliant
- Compliant with the 2014/35/EU Directive (“Low Voltage Directive“) CE
- LABS-free/silicone-free (during production)
- Special versions, other dimensions, cross-sections, wire and sheath colors are available on request.
DESIGN
| Conductor material | bare copper strand |
|---|---|
| Conductor class | acc. to IEC 60228 cl. 5 |
| Core insulation | PVC |
| Core identification | acc. to DIN VDE 0293 black cores with white numerals; G = with GNYE |
| Stranding | stranded in layers |
| Inner sheath material | PVC |
| Overall shield | copper braid tinned, coverage approx. 85 % |
| Outer sheath material | PVC |
| Sheath colour | grey, RAL 7001 |
ELECTRICAL PROPERTIES
| Rated voltage AC IEC | Uo/U: 300/500 V |
|---|---|
| Testing voltage | 3 kV |
| Conductor resistance | acc. to IEC 60228 cl. 5 |
| Insulation resistance | min. 20 MΩ x km |
| Current carrying capacity | acc. to DIN VDE |
MECHANICAL & DYNAMIC PROPERTIES
| Min. bending radius fixed | 6 x d |
|---|---|
| Min. bending radius moved | 12,5 x d |
THERMAL PROPERTIES
| Operat. temp. fixed min./max. [°C] | -40 °C / +70 °C |
|---|---|
| Operat. temp. moved min/max [°C] | -5 °C / +70 °C |
| Temp. at conductor in operation max [°C] | +70 °C in operation; +150 °C in case of short-circuit |
STANDARDS & APPROVALS
| Standard | EN 50525-2-51 / VDE 0285-525-2-51 |
|---|---|
| Approvals | HAR |
Manufacturer documents

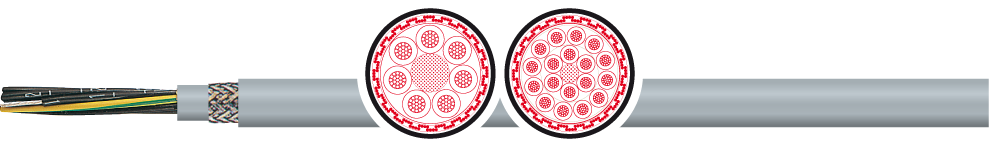

Series illustration. Dimensions and execution follow the article specifications.
