ÖPVC-JB-YCY 5G2,5 – 300/500 V, TRANSPARENT
Manufacturer article number: 1000420 · TKD
Article specifications
| Variant | ÖPVC-JB/OB-YCY 300/500 V |
|---|---|
| Dimension | 5 G 2,5 |
| Outer-Ø [mm] nom. | 12,5 |
| Cu Index [kg/km] | 200.0 |
| Weight [kg/1.000] | 319.0 |
Series information: ÖPVC-JB/OB-YCY
Application
power, control and connecting cable in electrical facilities for lossless data and signal transmission, fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use only with UV-protection, no laying underground.
SPECIAL FEATURES
- largely resistant to acids, bases and specified types of oil
- additional mechanical protection by inner sheath
- EMC compliant shielding
REMARKS
- RoHS compliant
- Compliant with the 2014/35/EU Directive (“Low Voltage Directive“) CE
- LABS/silicon-free (during production)
- Special versions, other dimensions, cross-sections, wire and sheath colors are available on request.
DESIGN
| Conductor material | bare copper strand |
|---|---|
| Conductor class | acc. to IEC 60228 cl. 5 |
| Core insulation | PVC |
| Core identification | coloured: up to 5 cores acc. to DIN VDE 0293-308; from 6 cores TKD colour code (see technical guideline); G: with GNYE |
| Stranding | stranded in layers |
| Inner sheath material | PVC |
| Overall shield | copper braid tinned, coverage approx. 85 % |
| Outer sheath material | PVC |
| Sheath colour | transparent |
ELECTRICAL PROPERTIES
| Rated voltage AC IEC | Uo/U: up to 16mm² 300/500V,from 25mm² 0,6/1kV |
|---|---|
| Testing voltage | 4 kV |
| Conductor resistance | acc. to IEC 60228 cl. 5 |
| Insulation resistance | min. 20 MΩ x km |
| Current carrying capacity | acc. to DIN VDE, see technical Guidelines |
MECHANICAL & DYNAMIC PROPERTIES
| Min. bending radius fixed | 6 x d |
|---|---|
| Min. bending radius moved | 15 x d |
THERMAL PROPERTIES
| Operat. temp. fixed min./max. [°C] | -40 °C / +80 °C |
|---|---|
| Operat. temp. moved min/max [°C] | -15 °C / +70 °C |
| Temp. at conductor in operation max [°C] | +70 °C in operation; +150 °C in case of short-circuit |
Manufacturer documents

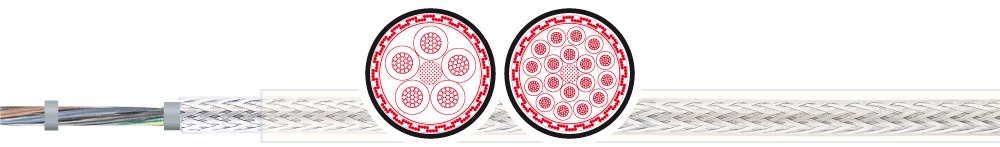

Series illustration. Dimensions and execution follow the article specifications.
