2YSL(ST)CYK-J 0,6/1KV EMC-UV 4G120 – BLACK RAL 9005
Manufacturer article number: 1002746 · TKD
Article specifications
| Variant | 2YSL(ST)CYK-J 0,6/1 kV EMV-UV schwarz/black |
|---|---|
| Dimension | 4 G 120 |
| Outer-Ø [mm] nom. | 52,1 |
| Cu Index [kg/km] | 5,435.0 |
| Weight [kg/1.000] | 5,699.0 |
Series information: KAWEFLEX® SERVO 2YSL(St)CY… & 2YSL(St)CYK… 0,6/1 kV EMV
Application
power, control and connecting cable for drive systems with frequency converter technology, for fixed laying and casually movement without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use (black colour), but no laying underground.
SPECIAL FEATURES
- largely resistant to acids, bases and specified types of oil
- max. perm. current carrying capacity at 30 ° C ambient temperature.
- black version with UV-resistant outer sheath
- enables trouble-free operation of frequency converters through optimum EMC compliant shielding
REMARKS
- RoHS compliant.
- Compliant with the 2014/35/EU Directive (“Low Voltage Directive“) CE
- LABS/silicon-free (during production)
- Special versions, other dimensions, cross-sections, wire and sheath colors are available on request.
DESIGN
| Conductor material | bare copper strand |
|---|---|
| Conductor class | acc. to IEC 60228 cl. 5 |
| Core insulation | PE |
| Core identification | acc. to DIN VDE 0293-308 coloured cores with GNYE |
| Stranding | stranded in layers |
| Overall shield | alu-lamin. polyester foil, metal side outside, cover. 100% under copper braid tinned |
| Outer sheath material | PVC |
| Sheath colour | black RAL 9005 |
ELECTRICAL PROPERTIES
| Rated voltage AC IEC | Uo/U 0,6/1 kV – highest permissible operating voltage Single phase and three-phase: 700/1200 V, DC operation: 900/1800 V |
|---|---|
| Testing voltage | 4 kV |
| Conductor resistance | acc. to IEC 60228 cl. 5 |
| Insulation resistance | min. 20 MΩ x km |
| Current carrying capacity | look at the table on the right side |
| Capacity | look at the table on the right side |
MECHANICAL & DYNAMIC PROPERTIES
| Min. bending radius fixed | up to 12 mm Ø: 5 x d; up to 20 mm Ø: 7,5 x d; > 20 mm Ø: 10 x d |
|---|---|
| Min. bending radius moved | up to 12 mm Ø: 10 x d; up to 20 mm Ø: 15 x d; > 20 mm Ø: 20 x d |
THERMAL PROPERTIES
| Operat. temp. fixed min./max. [°C] | -40 °C / +80 °C |
|---|---|
| Operat. temp. moved min/max [°C] | – 5 °C / +70 °C |
| Temp. at conductor in operation max [°C] | +70 °C in operation; +160 °C in case of short-circuit |
Manufacturer documents

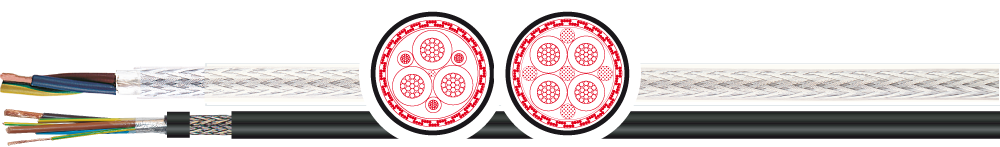

Series illustration. Dimensions and execution follow the article specifications.
