ÖPVC-JZ-YCY 0,6/1 KV BLACK 25G1
Manufacturer article number: 1003222 · TKD
Article specifications
| Variant | ÖPVC-JZ/OZ-YCY 0,6/1 kV – schwarz / black |
|---|---|
| Dimension | 25 G 1 |
| Outer-Ø [mm] nom. | 22,6 |
| Cu Index [kg/km] | 369.0 |
| Weight [kg/1.000] | 855.0 |
Series information: ÖPVC-JZ/OZ-YCY 0,6/1kV SCHWARZ
Application
power, control and connecting cable in electrical facilities for lossless data and signal transmission, fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use but no laying underground.
SPECIAL FEATURES
- operation voltage 0.6/1 kV
- 4kV testing voltage
- largely resistant to acids, bases and specified types of oil
- additional mechanical protection by inner sheath
- UV-proofed PVC outer sheath
- EMC compliant shielding
REMARKS
- RoHS compliant
- Compliant with the 2014/35/EU Directive (“Low Voltage Directive“) CE
- LABS-free/silicone-free (during production)
- Special versions, other dimensions, cross-sections, wire and sheath colors are available on request.
DESIGN
| Conductor material | bare copper strand |
|---|---|
| Conductor class | acc. to IEC 60228 cl. 5 |
| Core insulation | PVC |
| Core identification | acc. to DIN VDE 0293 black cores with white numerals; G: with GNYE |
| Stranding | stranded in layers |
| Inner sheath material | PVC |
| Overall shield | copper braid tinned, coverage approx. 85 % |
| Outer sheath material | PVC |
| Sheath colour | black, RAL 9005 |
ELECTRICAL PROPERTIES
| Rated voltage AC IEC | Uo/U: 0,6/1 kV |
|---|---|
| Testing voltage | 4 kV |
| Conductor resistance | acc. to IEC 60228 cl. 5 |
| Insulation resistance | min. 20 MΩ x km |
| Current carrying capacity | acc. to DIN VDE, see technical Guidelines |
MECHANICAL & DYNAMIC PROPERTIES
| Min. bending radius fixed | 6 x d |
|---|---|
| Min. bending radius moved | 15 x d |
THERMAL PROPERTIES
| Operat. temp. fixed min./max. [°C] | -40 °C / +80 °C |
|---|---|
| Operat. temp. moved min/max [°C] | -15 °C / +70 °C |
| Temp. at conductor in operation max [°C] | +70 °C in operation; +160 °C in case of short-circuit |
Manufacturer documents

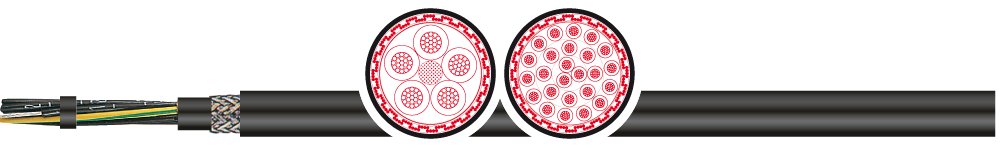

Series illustration. Dimensions and execution follow the article specifications.
