KAWEFLEX KINEMATICS 3D-C-PUR MeSys (TP) UL/CSA (3X(2X0,14)C+4X0,14+2 X 0,5)C – BLACK
Manufacturer article number: 1505341 · TKD
Article specifications
| Variant | KAWEFLEX KINEMATICS 3D-C-PUR MeSys (TP) UL/CSA |
|---|---|
| Dimension | (3 X (2 X 0,14)C + 4 X 0,14 + 2 X 0,5)C |
| Outer-Ø [mm] nom. | 10,2 |
| Cu Index [kg/km] | 64.0 |
| Weight [kg/1.000] | 120.0 |
Series information: KAWEFLEX® KINEMATICS 3D Measure & System cable UL/CSA
Application
Robitic Measuring & System cable (MeSys) for complex, highly flexible motion sequences in industrial applications (e.g. power chains, gantry robots, pick and place units, conveyor systems, machine tools, automatic. Manufacturing systems etc.).
> feedback – encoder – resolver – speedo sensor – signal – system <
For harsh environments (indoor & outdoor) with highest mech. stress, at the same time bending and torsion.
SPECIAL FEATURES
- low adhesion
- resistant to hydrolisis, microbes, cooling fluids, grease and lubricants
- resistant to oil acc. to IEC 60811-2-1
- UV-resistant
- halogen-free acc. to IEC 60754-1
- EMC compliant shielding (C-PUR)
- due to UL/CSA approval up to 300 V parallel laying with other cables with identical current voltage is permitted
REMARKS
- RoHS compliant
- Compliant with the 2014/35/EU Directive (“Low Voltage Directive“) CE
- LABS/silicon-free (during production)
- Special versions, other dimensions, cross-sections, wire and sheath colors according to your specifications on request
DESIGN
| Conductor material | bare copper strand, 0,38 mm²: tinned |
|---|---|
| Conductor class | super fine wire acc. to IEC 60228 cl. 6 pt. 4 |
| Core insulation | TPE |
| Core identification | acc. to system specification (on request) |
| Stranding | cores twisted to pairs or in layers, each element with sliding tape |
| Element shielding | C-elements: extremely torsion resistant spiral shield of tinned copper wires under sliding tape |
| Overall stranding | elements stranded together |
| Overall shield | extremely torsion resistant spiral shield of tinned copper wires over sliding tape |
| Protection against contact | sliding tape |
| Outer sheath material | PUR |
| Sheath colour | black (RAL 9005) or green (RAL 6018) |
ELECTRICAL PROPERTIES
| Rated voltage AC IEC | 300 V |
|---|---|
| Testing voltage | min. 2 kV |
| Current carrying capacity | acc. to DIN VDE |
MECHANICAL & DYNAMIC PROPERTIES
| Min. bending radius fixed | 4 x d |
|---|---|
| Min. bending radius moved | 7,5 x d < 10 m VW | 10 x d ≥ 10 m VW | Torsion: 10 x d |
| Traverse length (m) – drag chain | max. 50 m (VW) |
| Traverse speed (m/s) – drag chain | self-supporting: max. 10 m/s, gliding: max. 5 m/s | Torsion: max.180 °/s |
THERMAL PROPERTIES
| Operat. temp. fixed min./max. [°C] | -50 °C / +80 °C |
|---|---|
| Operat. temp. moved min/max [°C] | -30 °C / +80 °C, Torsion: -25 °C / +80 °C |
Manufacturer documents

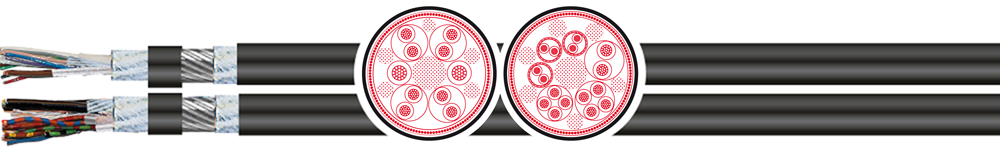

Series illustration. Dimensions and execution follow the article specifications.
