A-2YF(L)2Y ST III BD 10X2X0,8 – BLACK RAL 9005
Manufacturer article number: 2000012 · TKD
Article specifications
| Variant | A-2YF(L)2Y ST III BD |
|---|---|
| Dimension | 10 X 2 X 0,8 |
| Outer-Ø [mm] nom. | 15,5 |
| Cu Index [kg/km] | 101.0 |
| Weight [kg/1.000] | 275.0 |
Series information: A-2Y(L)2Y St III Bd , A-2YF(L)2Y St III Bd
Application
outdoor telephone cable for railway station telecommunication, in business and industrial facilities, in telecommunication and IT-systems for lossless transmission of datas and signals. Suitable for fixed laying in dry and humid rooms, on-wall and in-wall, outdoor use and laying underground.
SPECIAL FEATURES
- shielded by plastic coated aluminium tape
- quads stranded in bundles (St III Bd) with PE-outer sheath in layers
- largely resistant to acids, bases, saline solution, water, alcohol, oil and petrol
- free from lacquer damaging substances and silicone (during production)
- A-2Y(L)2Y St III Bd: radially watertight, A-2YF(L)2Y St III Bd: radially & longitudinally watertight
- UV-resistant outer sheath
REMARKS
- RoHS compliant
- conforms to the 2006/95/EC Directive („Low Voltage Directive“) CE.
- Special versions, other dimensions, cross-sections, wire and sheath colors are available on request.
DESIGN
| Conductor material | copper conductor blank |
|---|---|
| Conductor class | conductor-Ø 0,6 mm (0,28 mm²), conductor-Ø 0,8 mm (0,5 mm²) |
| Core insulation | PE |
| Core identification | acc. to VDE 0816: basic colours with black printed rings |
| Stranding | cores stranded to star-quads, bundles stranded in layers; A-2YF(L)2Y St III Bd: hollow spaces of cable strand filled with jelly filling |
| Overall shield | double-sided plastic coated aluminium tape |
| Outer sheath material | PE |
| Sheath colour | black |
ELECTRICAL PROPERTIES
| Rated voltage AC IEC | 225 V |
|---|---|
| Testing voltage | core/core: 500 V; core/shield: 2 kV |
| Conductor resistance | loop: 0,6 max. 130 Ω / km ; 0,8 max 73,2 Ω / km |
| Insulation resistance | min. 5 GΩ x km |
| Current carrying capacity | acc. to DIN VDE, s. Techn. Guidelines |
| Capacity | max. 52 nF/km |
MECHANICAL & DYNAMIC PROPERTIES
| Min. bending radius fixed | 7,5 x d |
|---|---|
| Min. bending radius moved | 10 x d |
THERMAL PROPERTIES
| Operat. temp. fixed min./max. [°C] | +70 °C |
|---|---|
| Operat. temp. moved min/max [°C] | -20 °C / +50 °C |
Manufacturer documents

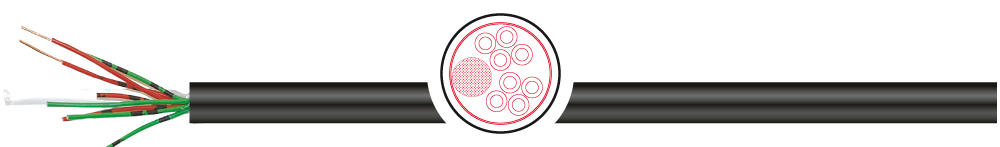

Series illustration. Dimensions and execution follow the article specifications.
