PROFIBUS DP TRAILING FC SK-C-PUR UL/CSA 1X2X0,64L(AWG23/19) - VIOLET, cULus CMX

PROFIBUS DP TRAILING FC SK-C-PUR UL/CSA 1X2X0,64L(AWG23/19) – VIOLET, cULus CMX

Manufacturer article number: 2003647 · TKD

Article specifications

Variant	PROFIBUS DP – Trailing
OEM – Ref. no.	6XV1831-2L
Type	FC SK-C-PUR UL/CSA¹ – VT
Dimension	1X2X0,64L (AWG23/19)
Outer-Ø [mm] nom.	7,8
Cu Index [kg/km]	30.0
Weight [kg/1.000]	78.0

Series information: PROFIBUS DP / FMS / FIP 150 Ohm – HF UL/CSA -high flexible –

Application

as fieldbus cables for PROFIBUS (Process Field BUS) systems, for highly flexible applications  (e.g. energy guiding chains, gantry robots, pick&place units, conveyor systems, machine tools, automatic production systems, manufacturing systems etc.)

The cables are suitable for PROFIBUS DP (Decentral Periphery), PROFIBUS FMS (Fieldbus Message Specification) as well as FIP (Factory Instrumentation Protocol).
Standard according to Profibus specification: EN61158 & EN61784 (DIN19245 T3 & EN50170)

SPECIAL FEATURES

• low adhesion
• largely resistant to grease, coolants and lubricants
• oil-resistant: PUR & PVC acc. DIN EN 60811-2-1 (PVC only mineral oil)
• UV-resistant
• optimized EMC-compliant shielding
• max. cable length of a bus according to PNO at specified transmission rate:

PROFIBUS DP

FIP

93,7 kbit/s
max. 1,2km

2,5 Mbit/s
max. 200m

187,5 kbit/s
max. 1,0km

0,5 Mbit/s
max. 400m

1,5 Mbit/s
max. 200m

12,0 Mbit/s
max. 100m

REMARKS

• RoHS-compliant // DESINA-compliant (violet)
• LABS/silicone-free (during production)
• compliant to the 2014/35/EU Directive (“Low Voltage Directive“) CE
• FRNC: Flame Retardant Non Corrosive, halogen-free
• FC type with ‚fast-connect‘ cable construction // PNO = PROFIBUS Nutzerorganisation e.V.

DESIGN

Conductor material	bare copper strand
Conductor class	Ø 0,64L & 0,34 mm²: 19-wired; 1,0 mm²: fine wired acc. to IEC 60228 cl. 6
Core insulation	BUS: foamed PE/PP; supply cores: Polyolefin
Core identification	BUS: gn, rd; supply cores: bk, bu, gnye (1,0mm²) | bk with numerals (1,5mm²)
Stranding	BUScores stranded to a pair
Element shielding	alu-lam. polyester foil, metal side outside, coverage 100% under copper braid tinned
Overall stranding	HYBRID: screened BUSelem. a. supply cores stranded
Outer sheath material	PVC resp. PUR
Sheath colour	violet RAL 4001 (VT) or petrol (PT)

ELECTRICAL PROPERTIES

Rated voltage AC IEC	BUScores: 250 V (not for high voltage purposes); supply cores: 500 V
Loop resistance	max. 133,0 Ω/km-0,64L & 0,8L, max. 39,0 Ω/km-1 mm², max. 26,6 Ω/km-1,5 mm²
Capacity	nom. 30 nF/km
Characteristic impedance	150 +/- 15 Ω

MECHANICAL & DYNAMIC PROPERTIES

Min. bending radius fixed	5 x d
Min. bending radius moved	7,5 x d < 3mTL* | 15 x d ≥ 3mTL*, FESTOON: 10 x d
Traverse length (m) – drag chain	max. 10 m (TL)
Traverse speed (m/s) – drag chain	self-supporting: 4 m/s
Acceleration (m/s²) – drag chain	max. 5 m/s² | TORSION: max. 10 m/s²

THERMAL PROPERTIES

Operat. temp. fixed min./max. [°C]	-40 °C / +80 °C
Operat. temp. moved min/max [°C]	PVC: -10 °C / +70 °C; PUR: -30 °C/ +70 °C

PROPERTIES IN CASE OF FIRE

Halogen-free	acc. to IEC 60754-1 (FRNC types)
Burning behavior	PVC CMG: acc. IEC 60332-3-24(Cat.C), FT 4 | PUR: acc. IEC 60332-1-2 | PUR CMX: acc. IEC 60332-1-2, VW-1

Manufacturer documents

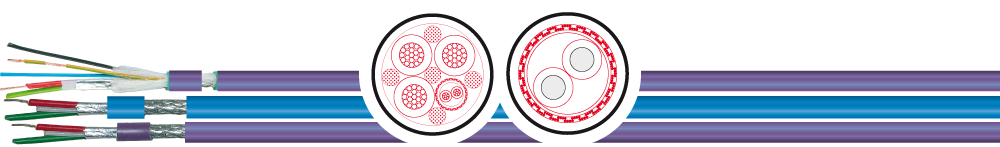

Series illustration. Dimensions and execution follow the article specifications.
