SIHF-JZ 7G6 – 300/500 V, REDBROWN
Manufacturer article number: 2500208 · TKD
Article specifications
| Variant | SIHF-J |
|---|---|
| Dimension | 7 G 6 |
| Outer-Ø [mm] nom. | 18,6 |
| Cu Index [kg/km] | 403.2 |
| Weight [kg/1.000] | 730.0 |
Series information: SIHF-J
Application
heat and coldness resistant power, control and connecting cable in electrical facilities, for fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms and outdoor use, no laying underground.
SPECIAL FEATURES
- largely resistant to acids, basis and special types of oil
- approved for conductor temperature class „H“ up to +180 °C
- no flame conduction in case of fire, insulation integrity and low smoke density
- silicone is resistant to ozone, oxygen, sea water and weather-proofed
- above +100 °C and with exclusion of air, the mechanical properties of silicone cables will be reduced early, adequate ventilation should be ensured
REMARKS
- RoHS compliant
- compliant with the 2014/35/EU Directive (“Low Voltage Directive“) CE
- special versions, other dimensions, cross-sections, wire and sheath colors are available on request
DESIGN
| Conductor material | copper strand tinned |
|---|---|
| Conductor class | acc. to IEC 60228 cl. 5 |
| Core insulation | silicone |
| Core identification | colored, according to VDE 0293-308 |
| Stranding | stranded in layers |
| Outer sheath material | silicone |
| Sheath colour | redbrown |
ELECTRICAL PROPERTIES
| Rated voltage AC IEC | Uo/U: 300/500 V |
|---|---|
| Testing voltage | 2 kV |
| Conductor resistance | at +20 °C acc. to IEC 60228 cl. 5 |
| Insulation resistance | min. 2,0 GΩ x km |
| Current carrying capacity | acc. to DIN VDE, see Technical Guidelines |
MECHANICAL & DYNAMIC PROPERTIES
| Min. bending radius fixed | 4 x d |
|---|---|
| Min. bending radius moved | 15 x d |
THERMAL PROPERTIES
| Operat. temp. fixed min./max. [°C] | -60 °C / +180 °C; short-time: +200 °C |
|---|---|
| Temp. at conductor in operation max [°C] | +180 °C |
PROPERTIES IN CASE OF FIRE
| Halogen-free | acc. to IEC 60754-1 |
|---|---|
| Corrodibility | acc. to IEC 60754-2 |
| Burning behavior | self-extinguishing and flame-retardant acc. to IEC 60332-1-2 |
Manufacturer documents

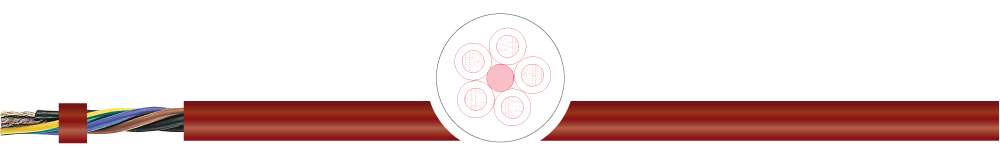

Series illustration. Dimensions and execution follow the article specifications.
