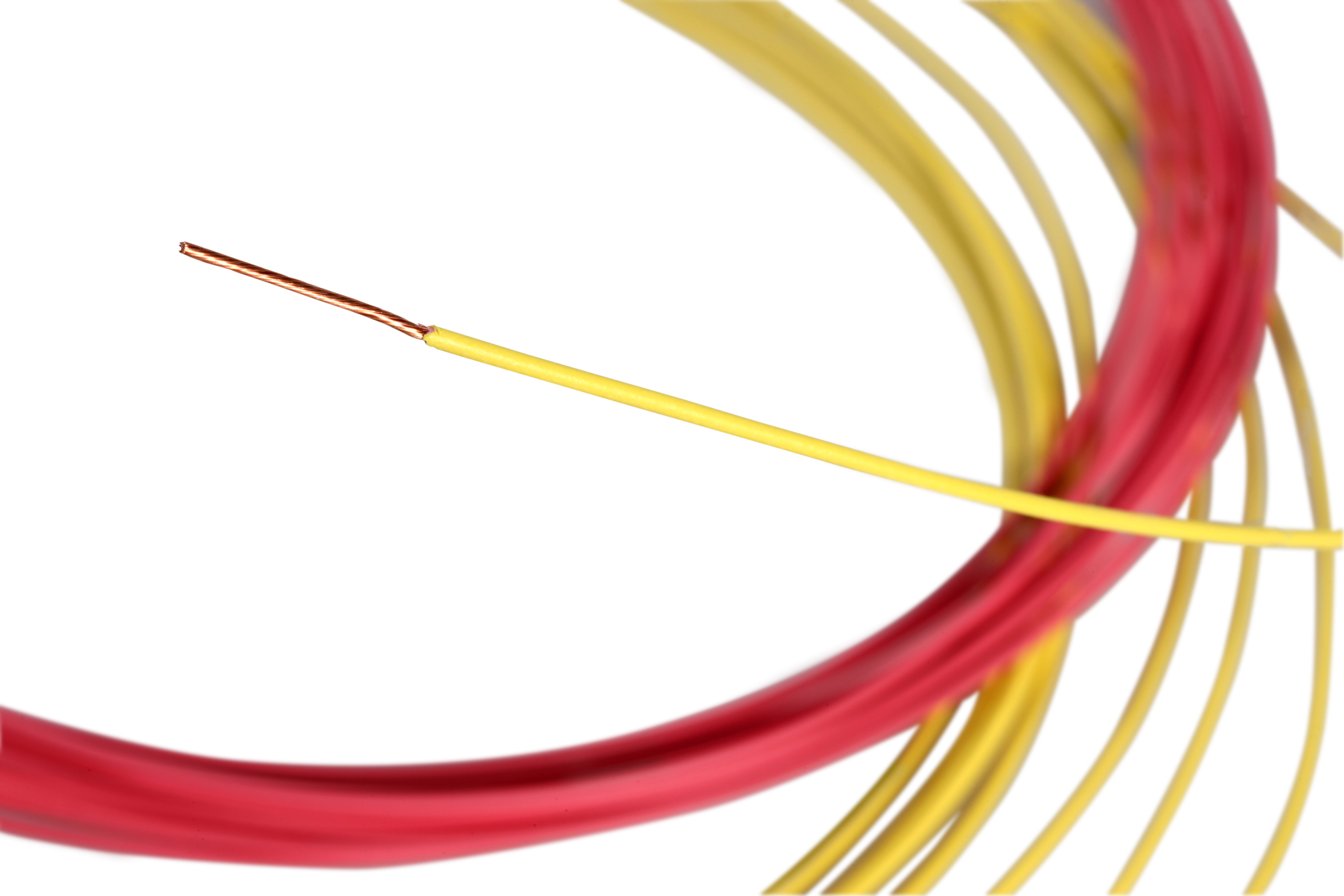

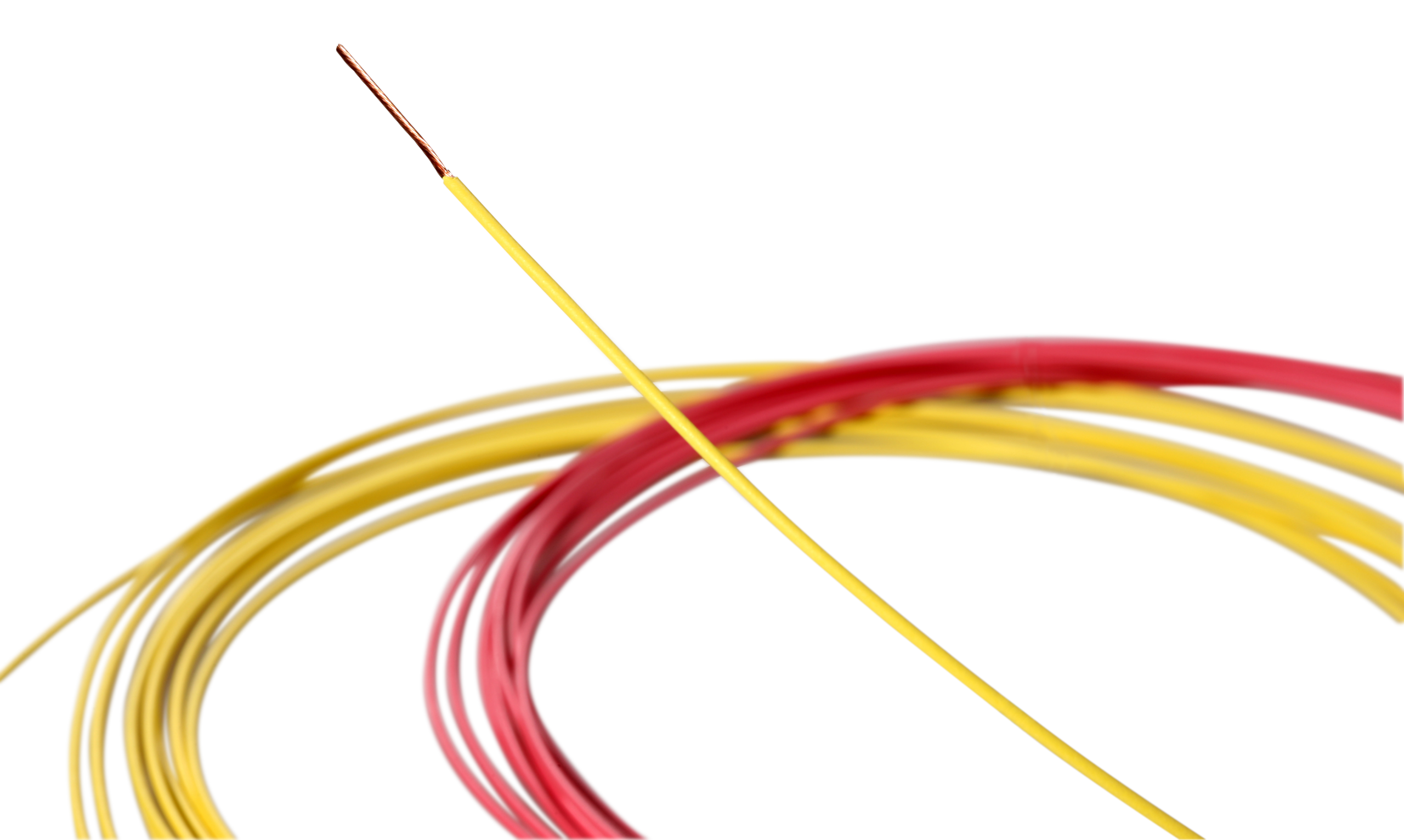

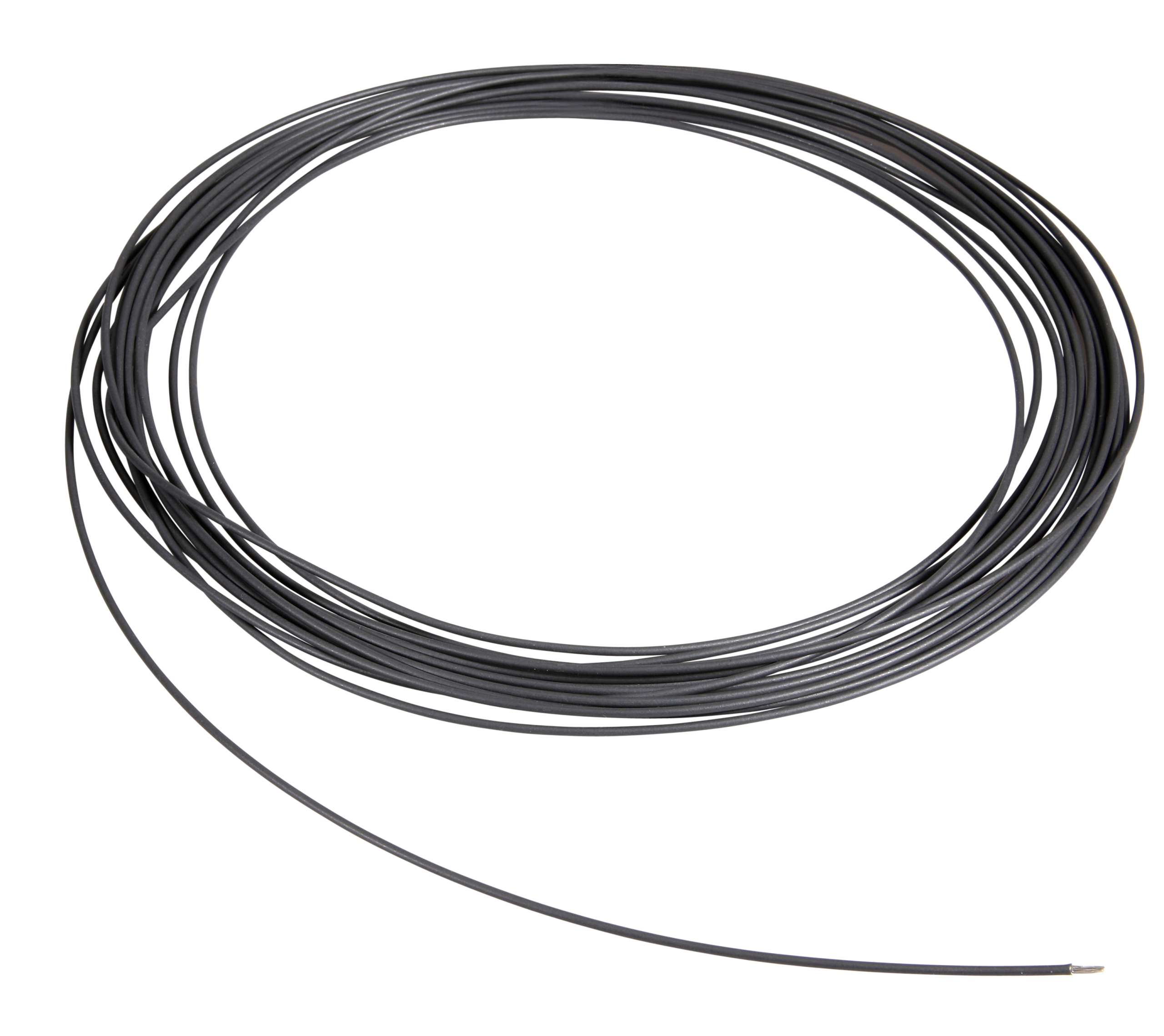

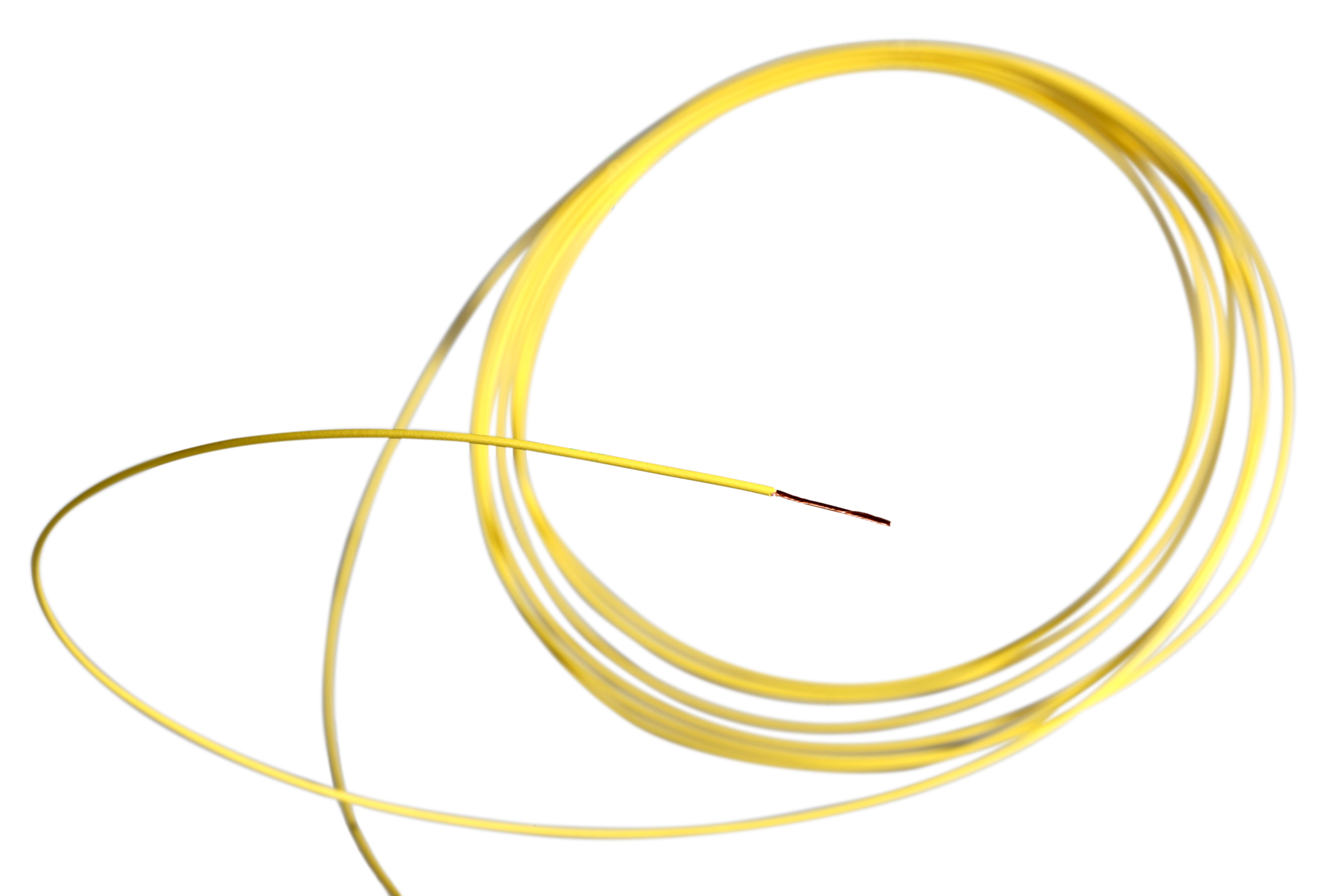

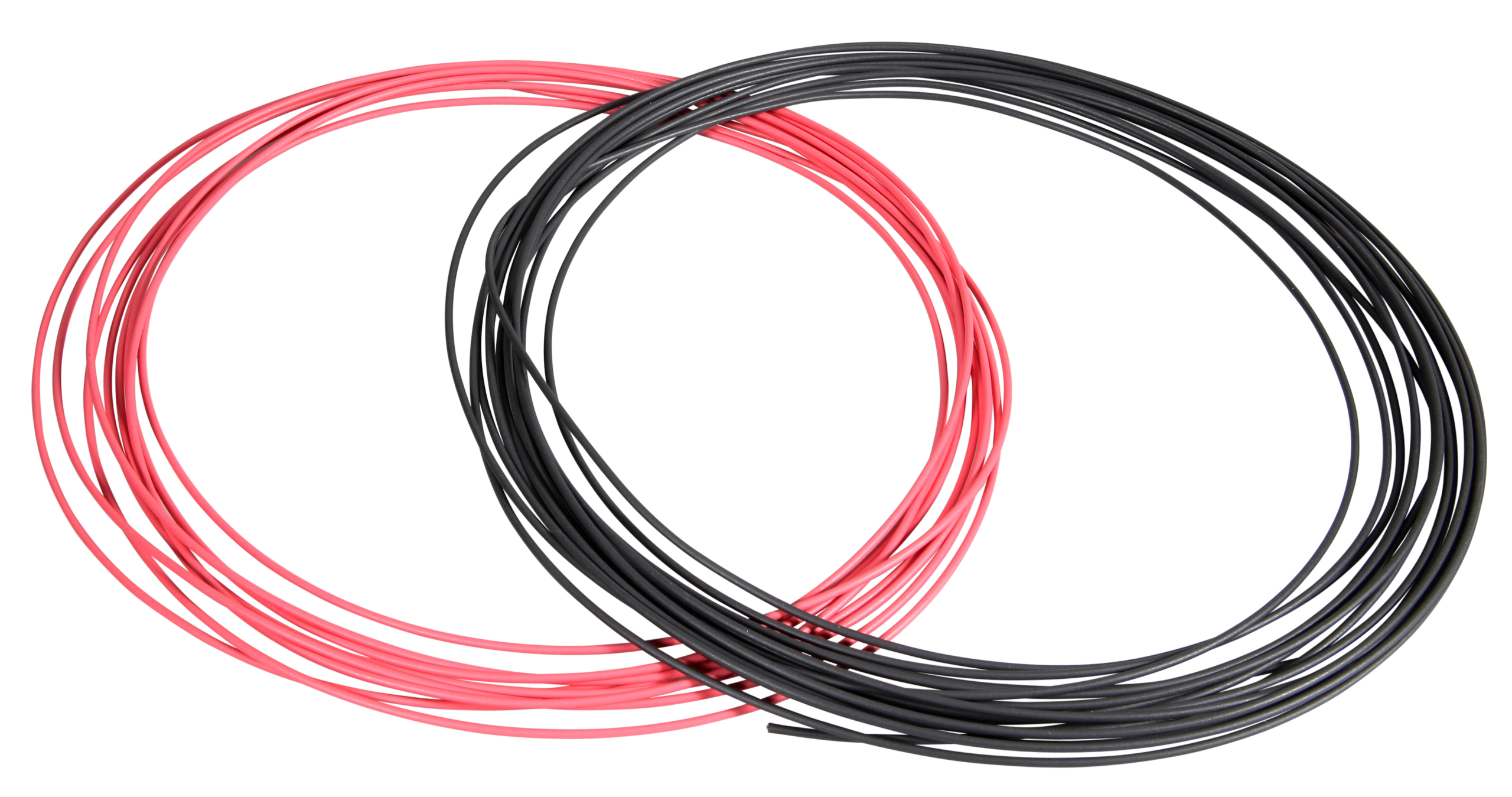

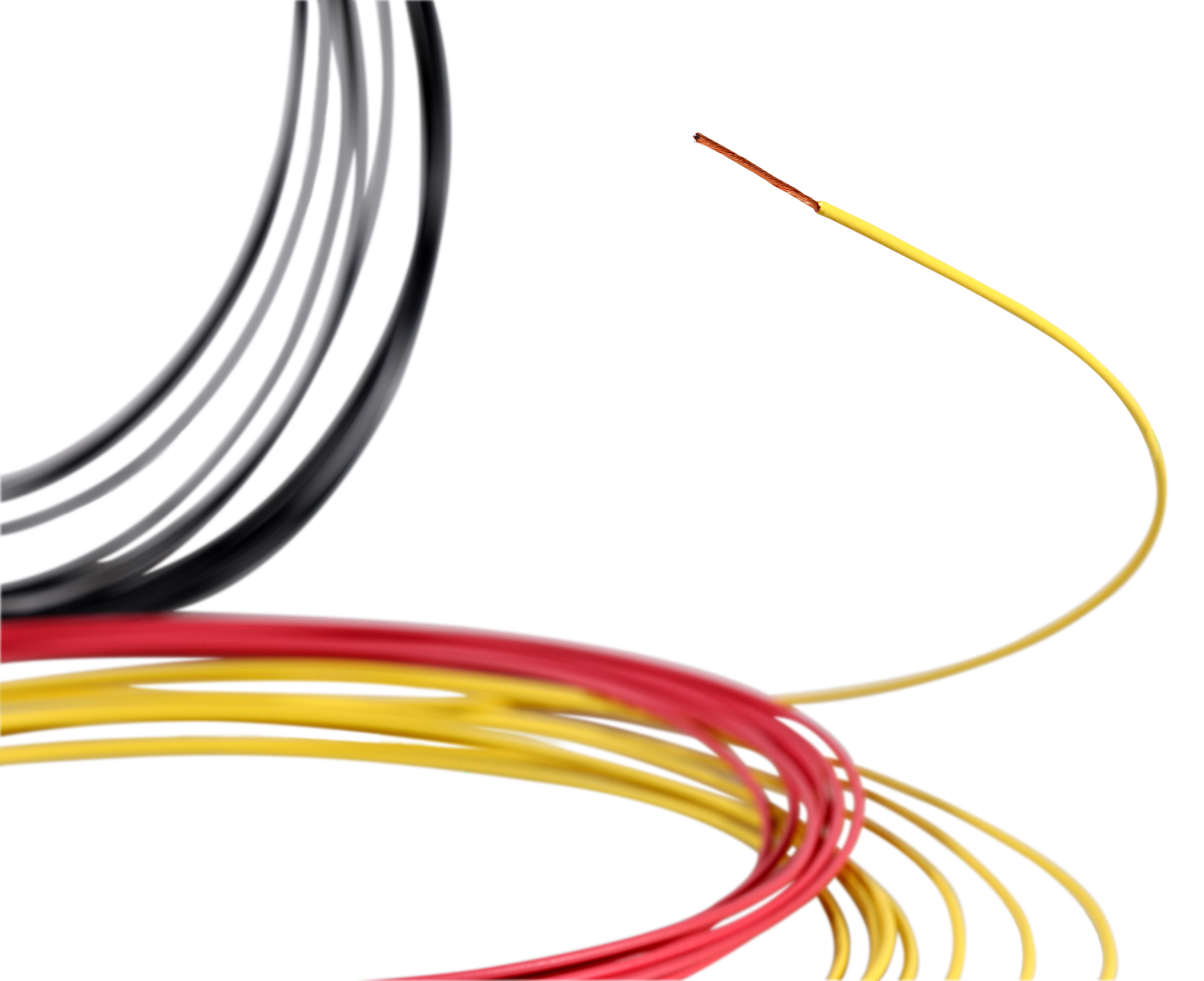

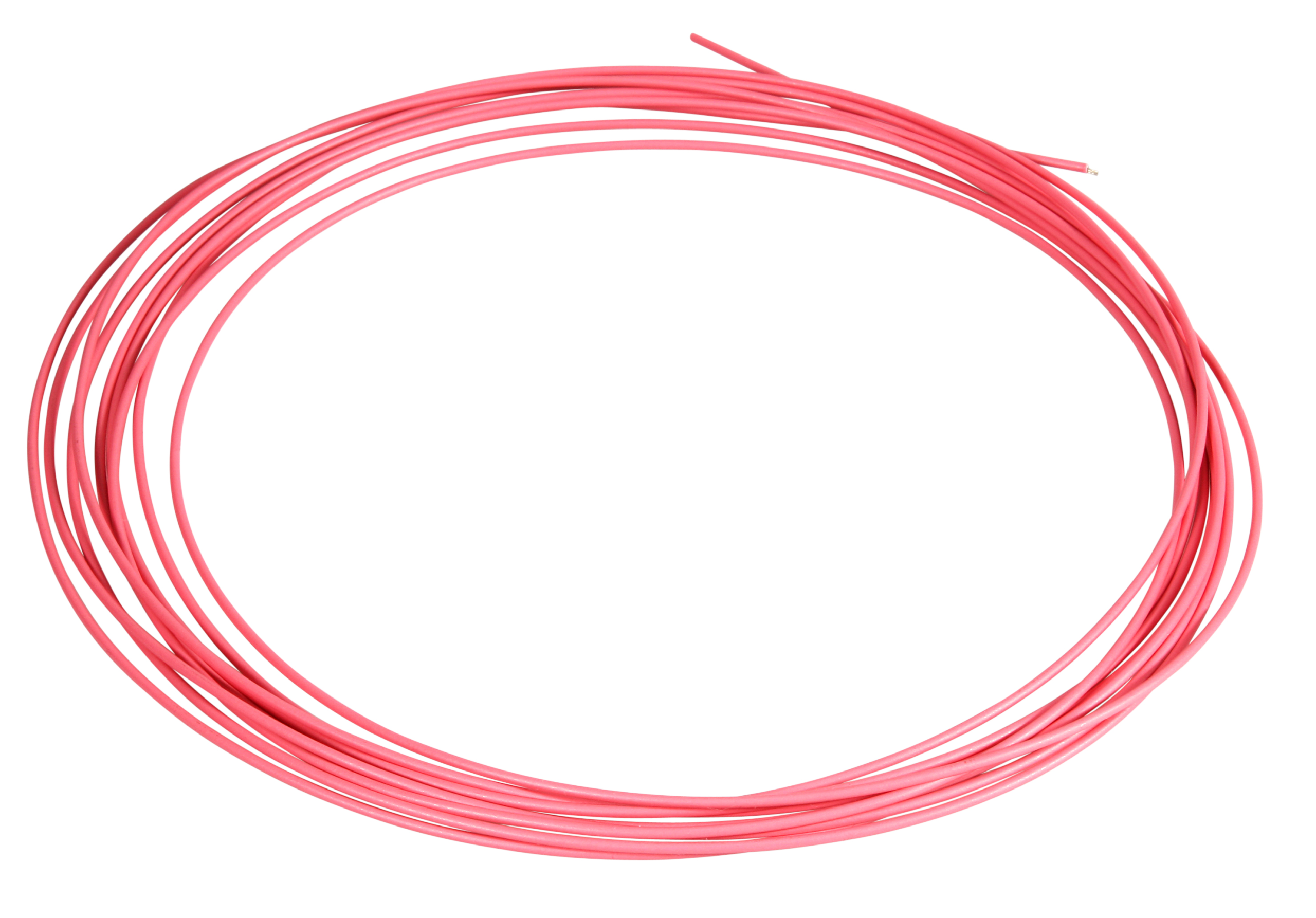

Illustrative product image. Check the selected configuration and technical specifications.

Price and availability on request

Tell us the required configuration and quantity. We will confirm the price and supply options in your quote.

AUTOL AC – RADOX® 155S FLR (single insulated) – (FLR91X) · TKD · 2512057

Request a quote

Request a quote with no obligation — no account needed.

AUTOL AC - RADOX 155S FLR - A 1X1 (P) - ROT - [85032979]
AUTOL AC - RADOX 155S FLR - A 1X1 (P) - RD - [85032979]SKU: 2512057
Requested cut lengths

Price, cutting fee and availability will be confirmed in your quote.

We use your details to handle your enquiry. Privacy policy

Shipping & delivery ↗Contact our shop team ↗

At a glance

Rated voltage DC IEC
1.500 V | 900 V | < 0.5mm²: 900V, > 0.5mm²: 1,500 V
Current carrying capacity
according to ISO 6722- 1 / ISO 19642
Outer-Ø [mm] nom.
2
Weight [kg/1.000]
11.8

Product information

Technical details & specifications ↓Datasheet (PDF) ↗Datasheet (PDF) ↗

AUTOL AC – RADOX 155S FLR – A 1X1 (P) – RD – [85032979]

Manufacturer article number: 2512057 · TKD

Article specifications

Variant AUTOL AC – RADOX 155S FLR – A (P)
OEM – Ref. no. 85032979
Dimension 1 X 1
Outer-Ø [mm] nom. 2
Cu Index [kg/km] 9.6
Weight [kg/1.000] 11.8

Series information: AUTOL AC – RADOX® 155S FLR (single insulated) – (FLR91X)

Application

Cable for use in road vehicles.

SPECIAL FEATURES

  • High and low temperatures
  • Ozone, UV and weathering resistance
  • Pressure resistance at high temperatures
  • Resistant to engine oil, fuel and hydrolysis,
  • flame retardant
  • high abrasion resistance
  • resistant to soldering
  • easy to strip and process
  • according to ISO 6722- 1 class D, ISO 19642- 3 class D, ISO 19642- 5 class D

REMARKS

  • Complies with EU Directive 2000/53/EC on end-of-life vehicles
  • All materials are free of lead, mercury, cadmium and chromium VI

DESIGN

Conductor material Stranded copper wire, tinned or bare, specially filled
Conductor class according to ISO 6722- 1 / ISO 19642, structure A
Core insulation RADOX® 155S (91X)
Core identification different colors

ELECTRICAL PROPERTIES

Rated voltage DC IEC 1.500 V | 900 V | < 0.5mm²: 900V, > 0.5mm²: 1,500 V
Testing voltage < 0.5mm²: 3kV, = 0.5mm²: 5kV, > 0.5mm²: 8kV | 5 kV | 3 kV | 8 kV
Conductor resistance according to ISO 6722- 1 / ISO 19642
Current carrying capacity according to ISO 6722- 1 / ISO 19642

STANDARDS & APPROVALS

Standard according to ISO 6722-1 class D, ISO19642-3 class D, ISO19642-5 class D
Approvals ISO 6722

Manufacturer documents

Datasheet (PDF)Datasheet (PDF)

Series illustration. Dimensions and execution follow the article specifications.
