TKDPart no. 2517110

AUTO B SC HV - RADOX 155 /REMS 1X16 (P) - OG - [84116032]

AUTO B SC HV - RADOX 155 /REMS 1X16 (P) - ORANGE - [84116032]

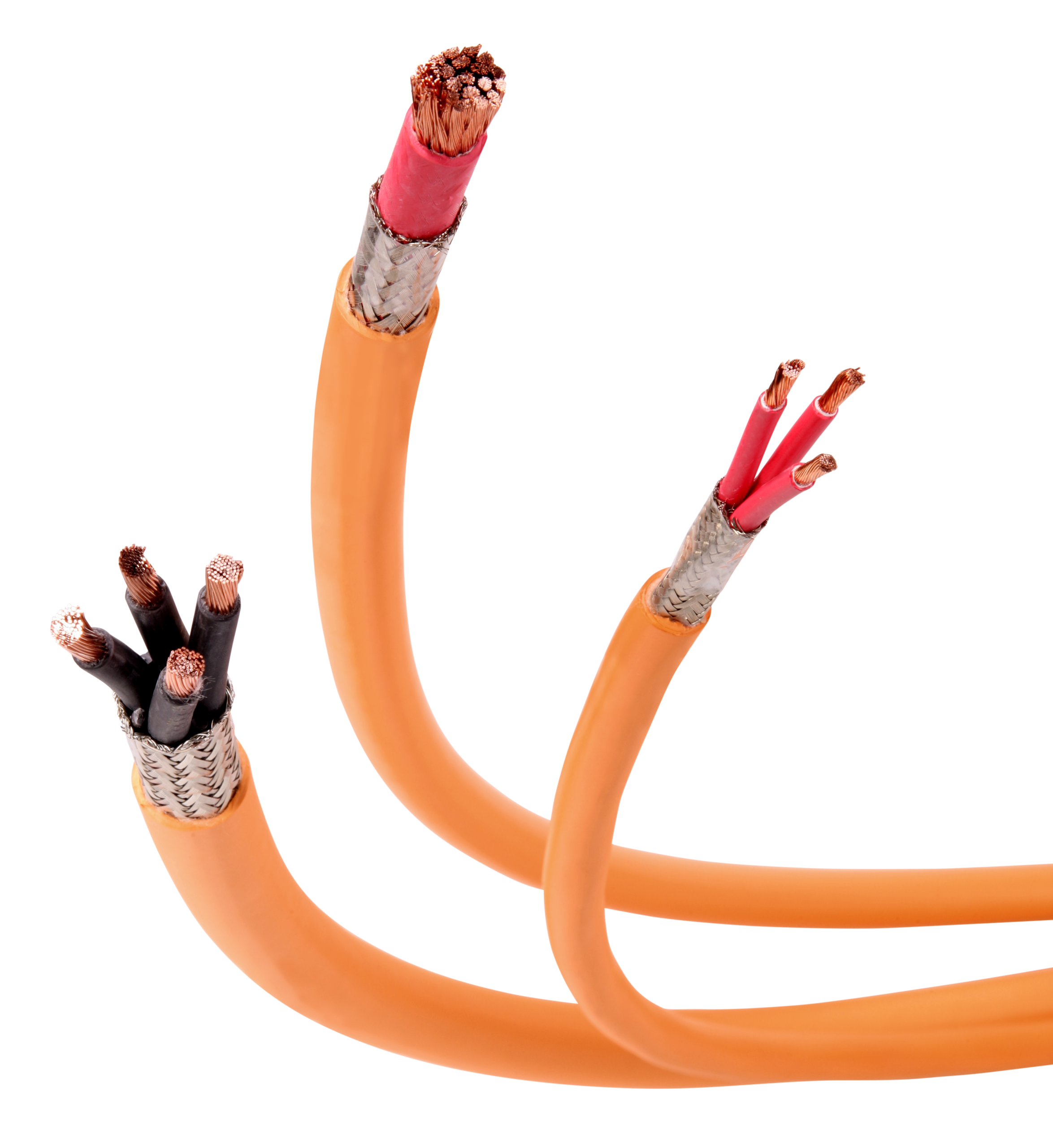

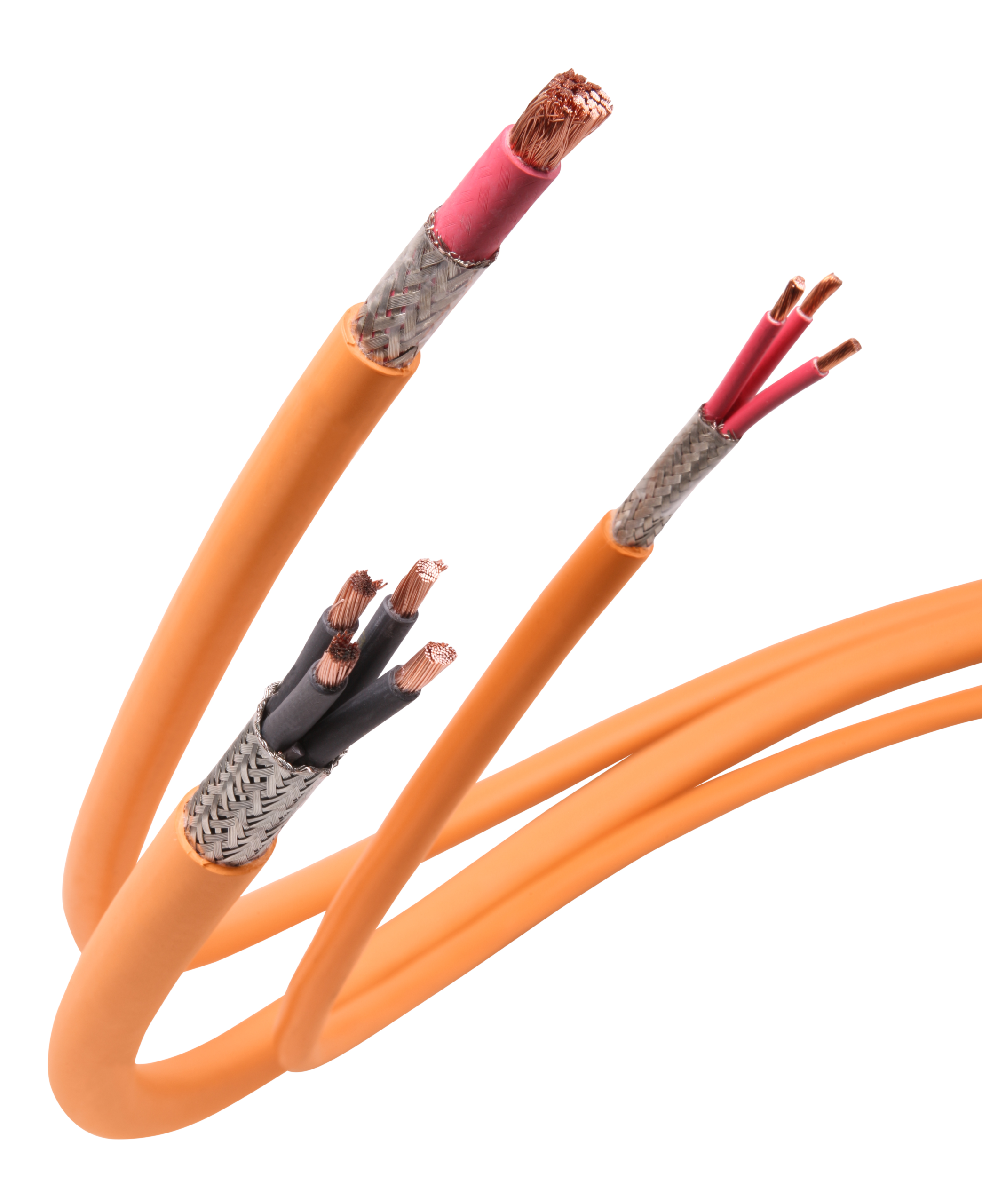

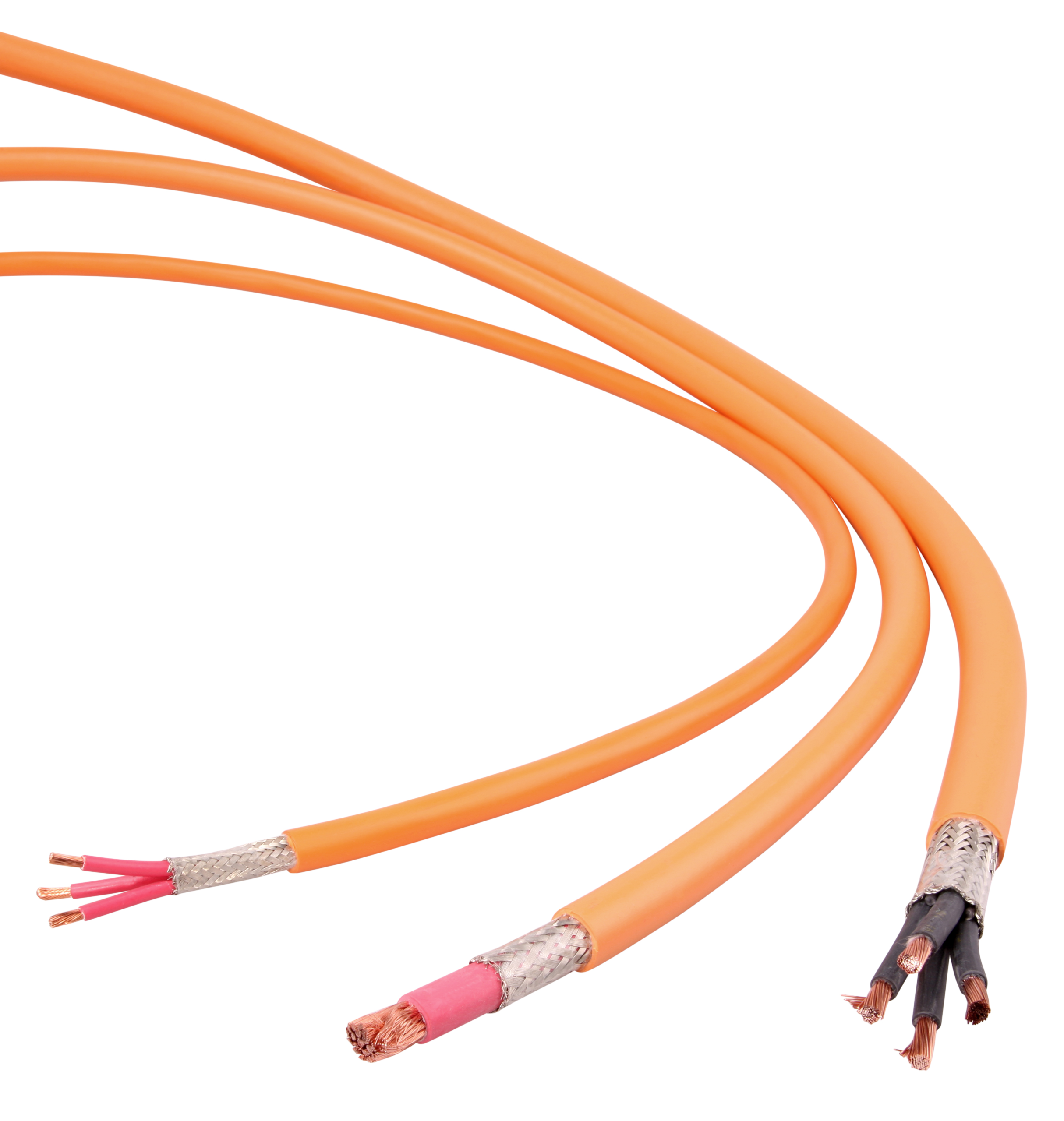

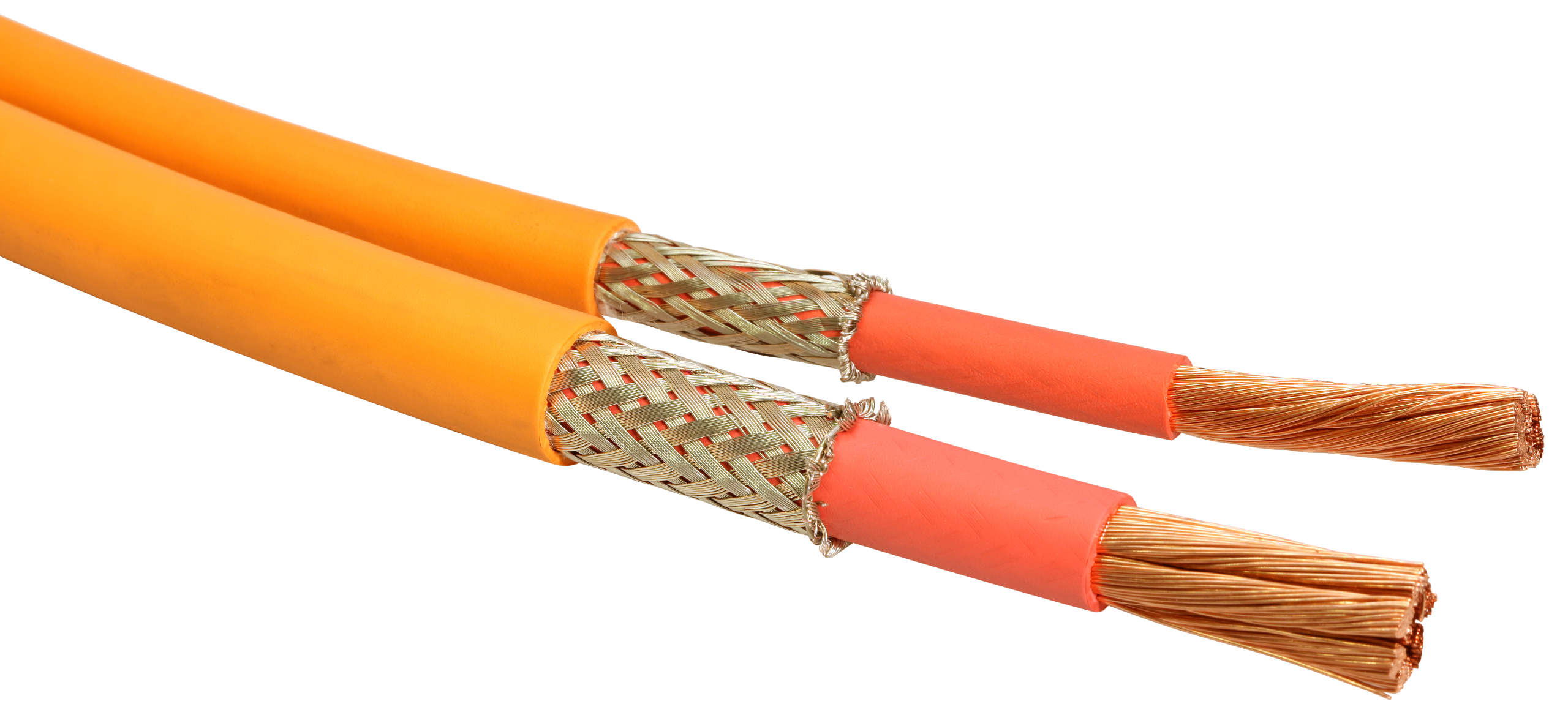

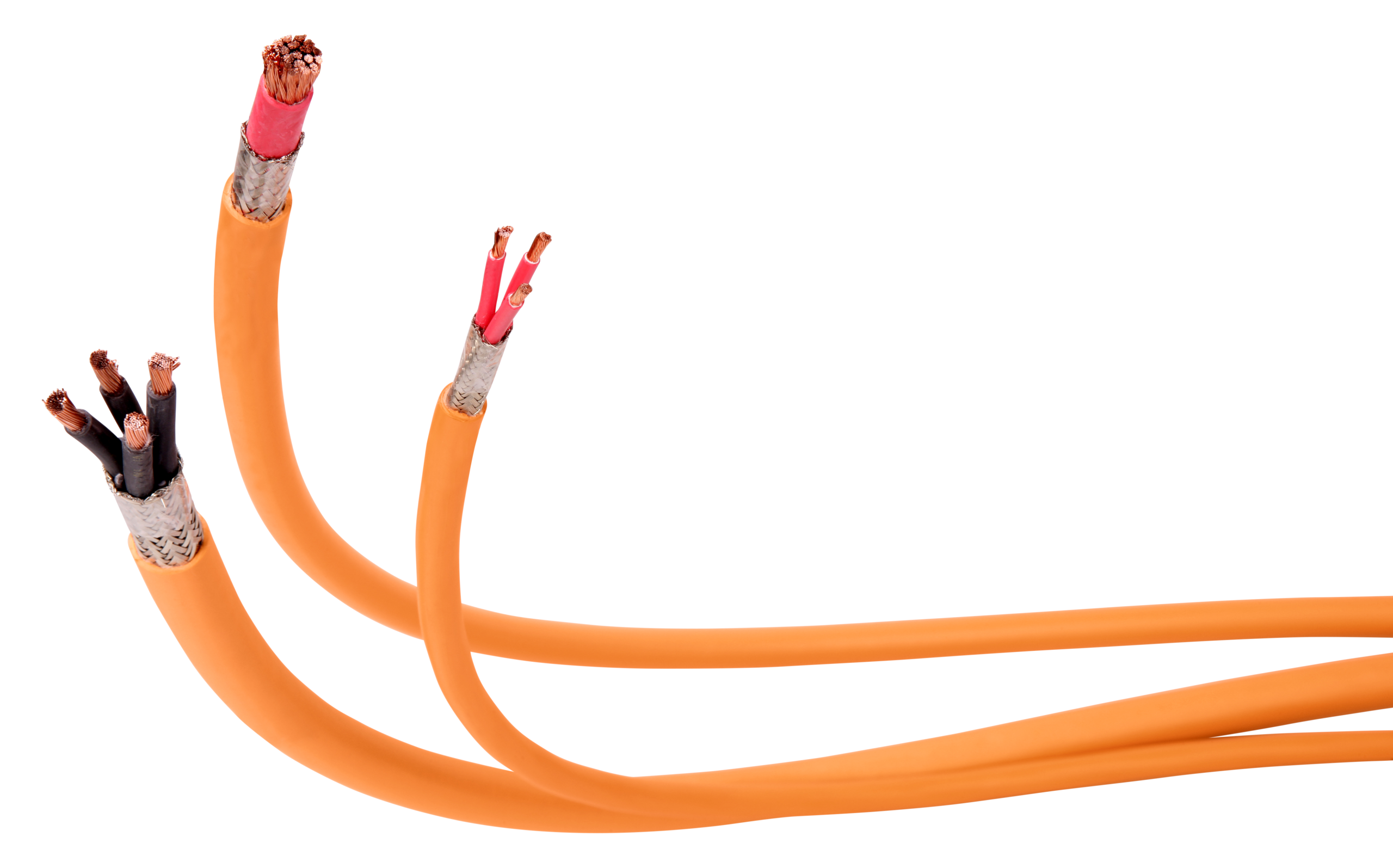

Illustrative product image. Check the selected configuration and technical specifications.

Price and availability on request

Tell us the required configuration and quantity. We will confirm the price and supply options in your quote.

AUTO B SC HV – RADOX® 155S FLR/REMS & 155 /REMS (FHLR91XC13X and FHLR4GC13X) · TKD · 2517110

Request a quote

Request a quote with no obligation — no account needed.

AUTO B SC HV - RADOX 155 /REMS 1X16 (P) - OG - [84116032]SKU: 2517110

Shipping & delivery ↗Contact our shop team ↗

At a glance

Rated voltage AC IEC: 1.000 V | 1.000 V
Rated voltage DC IEC: 1.500 V | 1.500 V
Current carrying capacity: acc. to ISO 6722- 1 / ISO 19642
Overall shield: Tinned copper braid optimized

Product information

Technical details & specifications ↓Datasheet (PDF) ↗

AUTO B SC HV – RADOX 155 /REMS 1X16 (P) – OG – [84116032]

Manufacturer article number: 2517110 · TKD

Article specifications

Variant	AUTO B SC HV – RADOX 155 /REMS (P)
OEM – Ref. no.	84116032
Dimension	1 X 16
Outer-Ø [mm] nom.	9,7
Cu Index [kg/km]	179.9
Weight [kg/1.000]	230.0

Series information: AUTO B SC HV – RADOX® 155S FLR/REMS & 155 /REMS (FHLR91XC13X and FHLR4GC13X)

Application

Cable, for use in onroad & onroad vehicle applications

SPECIAL FEATURES

High and low temperatures
Ozone, UV and weathering resistance
Pressure resistance at high temperatures
Resistant to engine oil, fuel and hydrolysis, flame retardant
high abrasion resistance
solder-resistant
easy to strip and process
according to ISO 6722- 1 class D, ISO 19642- 9 class D
DNV Certificate no.: TAE000053V

REMARKS

Complies with EU Directive 2000/53/EC on end-of-life vehicles
All materials are free of lead, mercury, cadmium and chromium VI

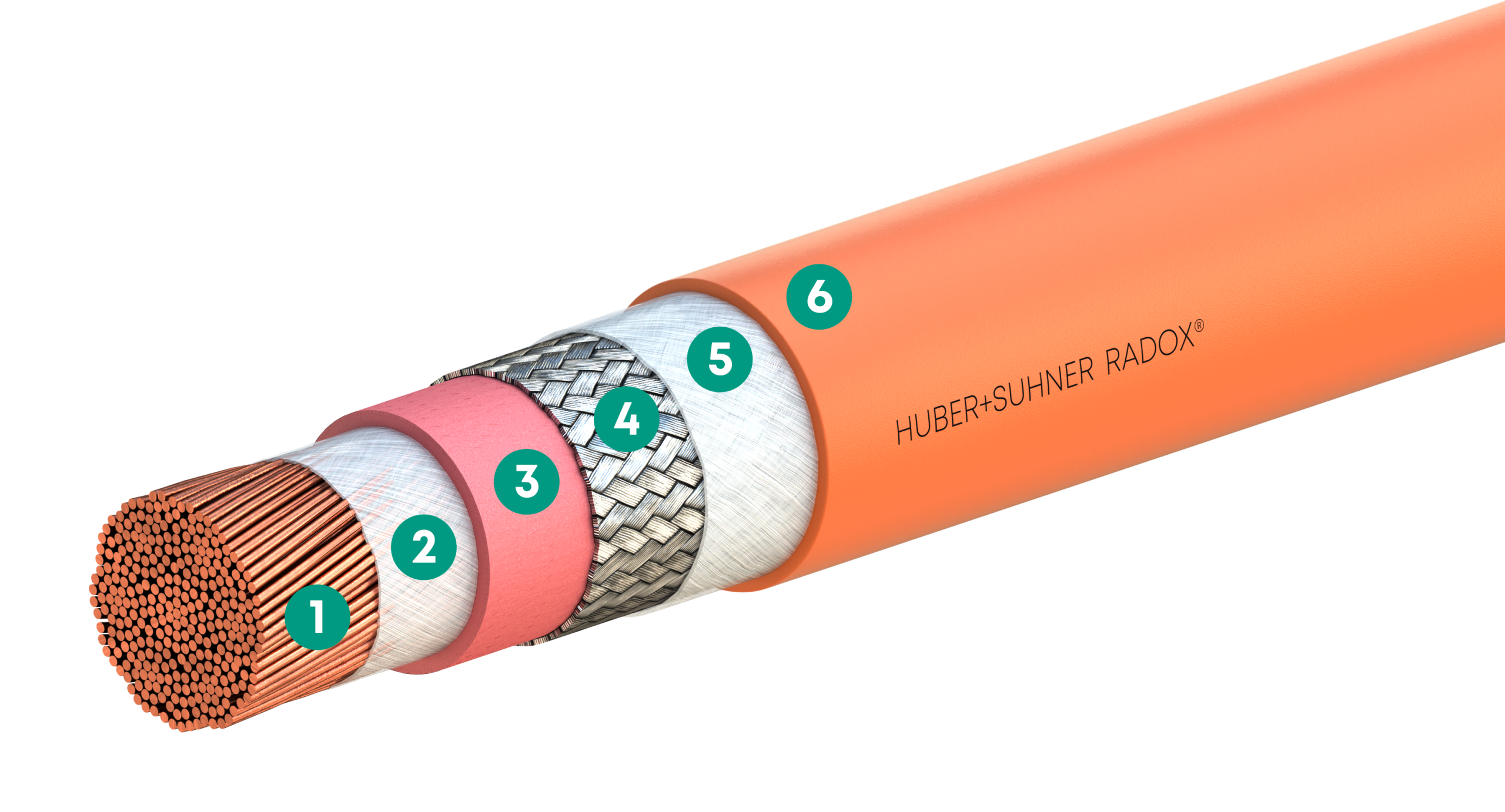

DESIGN

Conductor material	Bare copper, stranded
Conductor class	acc. to ISO 6722- 1 / ISO 19642- 9, structure B
Core insulation	RADOX® 155S (91X) for < 6 mm² / RADOX® 155 (4G) for > 6 mm²
Core identification	Red
Overall shield	Tinned copper braid optimized
Protection against contact	Tape
Outer sheath material	RADOX® 155S (13X)
Sheath colour	Orange

ELECTRICAL PROPERTIES

Rated voltage AC IEC	1.000 V \| 1.000 V
Rated voltage DC IEC	1.500 V \| 1.500 V
Testing voltage	10 kV \| 10kV
Conductor resistance	acc. to ISO 6722- 1 / ISO 19642
Current carrying capacity	acc. to ISO 6722- 1 / ISO 19642

MECHANICAL & DYNAMIC PROPERTIES

Min. bending radius fixed	4 x d
Min. bending radius moved	6 x d

THERMAL PROPERTIES

Operat. temp. fixed min./max. [°C]	-40 °C / +150 °C
Temperature range min/max [°C]	-40 °C / +150 °C (3000 h)

Manufacturer documents

Datasheet (PDF)

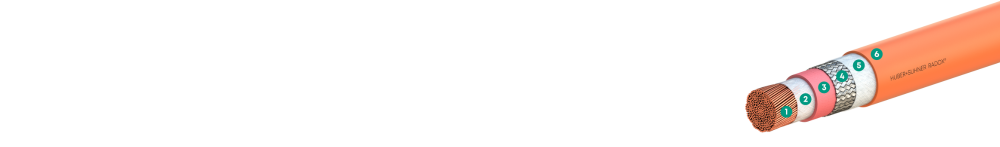

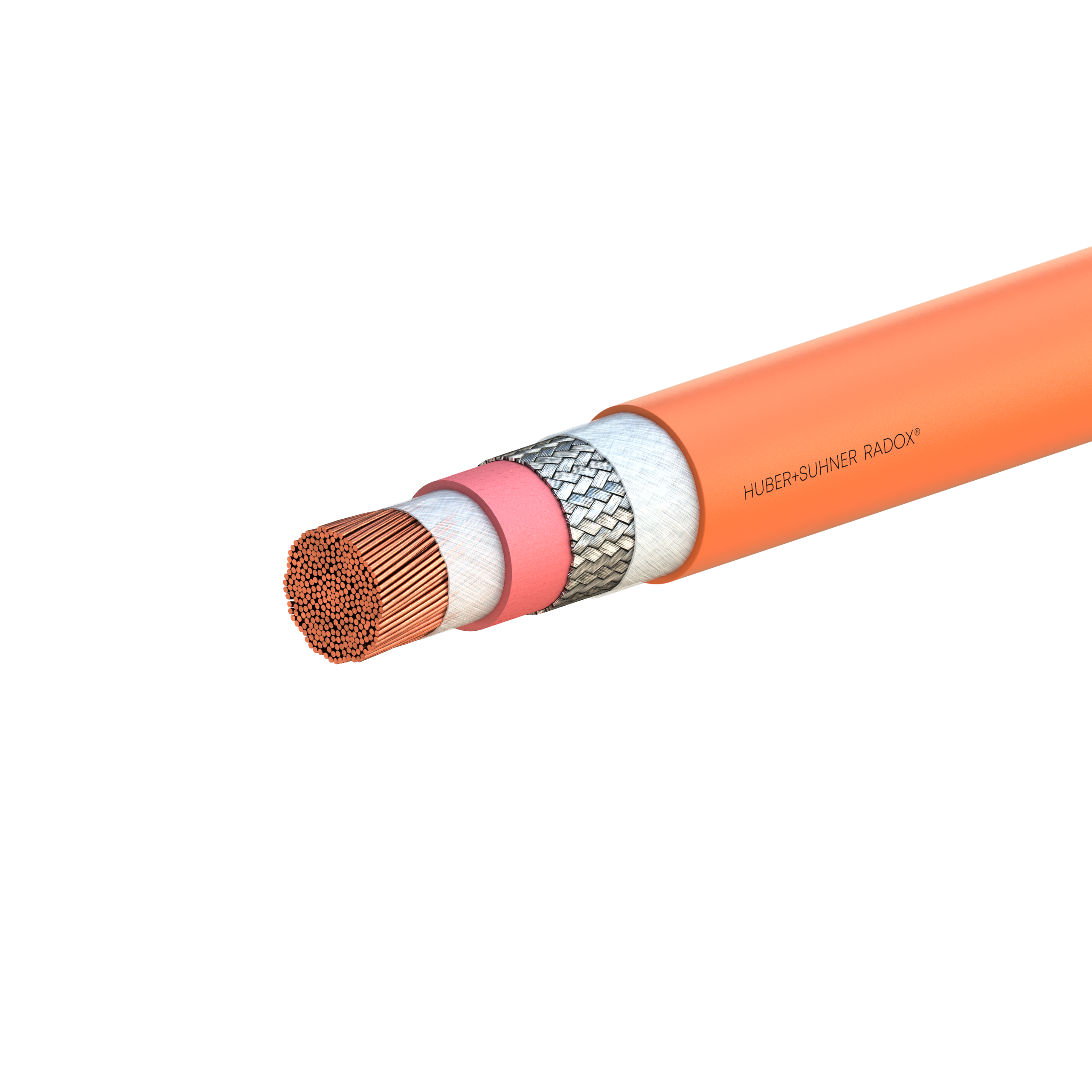

Series illustration. Dimensions and execution follow the article specifications.
