LSOH 4G6 – 0,6/1 KV,FLAT CABLE HALOGEN-FREE
Manufacturer article number: 3000721 · TKD
Article specifications
| Variant | LSOH |
|---|---|
| Dimension | 4 G 6 |
| Outer-Ø [mm] nom. | 7,4 X 23,2 – 8,1 X 26,6 |
| Cu Index [kg/km] | 230.0 |
| Weight [kg/1.000] | 330.0 |
Series information: FESTOONTEC® LSOH, LSOH-C (EMV)
Application
power and control cable for trolley systems, transfer lines, machine-tools, on hoisting devices, lift, crane and container bridges. Also in applications where cables are bended strongly in permanent moving operation in one level. Suitable for dry, humid and wet rooms and for outdoor use.
SPECIAL FEATURES
- significant smaller bending radius compared to round cables
- notable protection to people and property value
- free from lacquer damaging substances and silicone (during production)
- halogen-free
- LSOH = Low Smoke Zero Halogen
REMARKS
- RoHS compliant
- Compliant with the 2014/35/EU Directive (“Low Voltage Directive“) CE
- Special versions, other dimensions, cross-sections, wire and sheath colors are available on request.
- Available accessories can be found on pages 15.35.XX
DESIGN
| Conductor material | bare copper strand |
|---|---|
| Conductor class | acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5 |
| Core insulation | special compound |
| Core identification | black with white numerals resp. white with black numerals, with GNYE |
| Stranding | cores parallel side by side |
| Element shielding | LSOH-C: bare copper braid, coverage approx. 85 % | bare copper braid, coverage approx. 85 % |
| Outer sheath material | special compound |
| Sheath colour | black |
ELECTRICAL PROPERTIES
| Rated voltage AC IEC | on 1 mm²: Uo/U 300/500 V; from 1,5 mm²: Uo/U 0,6/1 kV |
|---|---|
| Testing voltage | LSOH: 2,5 kV; LSOH-C: c/c 4,0 kV / c/s 1,5 kV |
| Current carrying capacity | acc. to DIN VDE, see Technical Guideline |
MECHANICAL & DYNAMIC PROPERTIES
| Min. bending radius fixed | LSOH: 10 x d; LSOH-C: 15 x d |
|---|---|
| Min. bending radius moved | LSOH: 10 x d; LSOH-C: 15 x d |
| Suspension hight (m) | max. 35 m |
THERMAL PROPERTIES
| Operat. temp. fixed min./max. [°C] | -40 °C / +70 °C |
|---|---|
| Operat. temp. moved min/max [°C] | -25 °C / +70 °C |
| Temp. at conductor in operation max [°C] | +90 °C |
PROPERTIES IN CASE OF FIRE
| Halogen-free | acc. to IEC 60754-1 и IEC 60754-2 |
|---|---|
| Smoke density | acc. to IEC 61034-2 |
| Burning behavior | self-extinguishing and flame retardant acc. to IEC 60332-1-2 |
Manufacturer documents

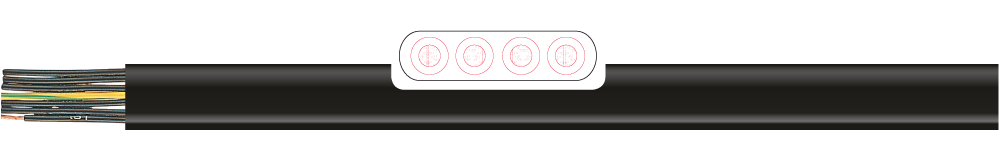

Series illustration. Dimensions and execution follow the article specifications.
