REELTEC PUR-HF -J 14G4 – 0,6/1 KV, REELING CABLE
Manufacturer article number: 3004020 · TKD
Article specifications
| Variant | REELTEC PUR-HF-J |
|---|---|
| Dimension | 14 G 4 |
| Outer-Ø [mm] nom. | 22,7 – 25,3 |
| Cu Index [kg/km] | 616.0 |
| Weight [kg/1.000] | 960.0 |
Series information: REELTEC® PUR-HF
Application
halogen-free reeling cable for heavy duty devices such as cable reels (also vertical operation), hoisting devices, conveyor facilities, mobile motors, rail motors and agricultural devices. For exceptional mechanical stress in dry, humid and wet rooms and for outdoor use.
SPECIAL FEATURES
- free from lacquer damaging substances and silicone (during production)
- reduced outer diameters and reduced weights
- also available on request for permanent use in water (no drinking water) up to 50 m diving depth
REMARKS
- RoHS-compliant
- See technical appendix for areas of application
- Compliant with 2014/35/EU Directive (“Low Voltage Directive“) CE
- Special versions, other dimensions, cross-sections, wire and sheath colors are available on request.
DESIGN
| Conductor material | bare copper strand |
|---|---|
| Conductor class | acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5 |
| Core insulation | based on polyester |
| Core identification | colored, according to VDE 0293-308 |
| Stranding | cores stranded in layers |
| Supporting element | central textile element |
| Inner sheath material | polyurethane |
| Anti-torsion braid | open support mesh (polyester) |
| Outer sheath material | polyurethane |
| Sheath colour | black |
ELECTRICAL PROPERTIES
| Rated voltage AC IEC | 0,6/1 kV |
|---|---|
| Testing voltage | 2,5 kV |
| Current carrying capacity | acc. to DIN VDE, basic table, column D |
MECHANICAL & DYNAMIC PROPERTIES
| Min. bending radius fixed | 6 x d |
|---|---|
| Min. bending radius moved | 6 x d (7,5 x d at roller reversing) |
| Torsion angle ± (°/m) | +/- 50 °/m |
| Traverse speed (m/s) – reeling | in reeling operation up to max. 3m/s (180 m/min) and in vertical pull-off up to max. 2m/s (120 m/min) |
| Tensile strength | without supporting element max. 25 N / mm² |
THERMAL PROPERTIES
| Operat. temp. fixed min./max. [°C] | -50 °C / +90 °C |
|---|---|
| Operat. temp. moved min/max [°C] | -40 °C / +90 °C |
| Temp. at conductor in operation max [°C] | +90 °C |
| Temp. at conductor in case of short-circuit max [°C] | +250 °C |
PROPERTIES IN CASE OF FIRE
| Halogen-free | acc. to IEC 60754 |
|---|---|
| Burning behavior | acc. to IEC 60332-1 |
CHEMICAL RESISTANCE & OTHER PROPERTIES
| Oil resistance | acc. to EN 60811-404 |
|---|---|
| UV resistance | yes |
Manufacturer documents

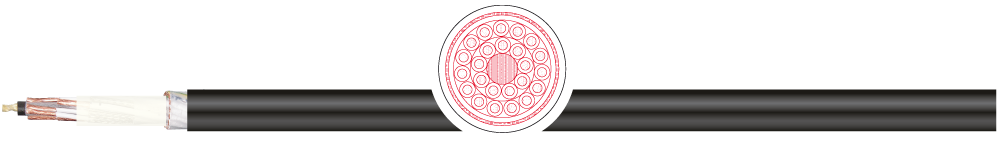

Series illustration. Dimensions and execution follow the article specifications.
