FESTOONTEC C-PUR-HF -J 5G2,5 – 0,6/1 KV, SHIELDED
Manufacturer article number: 3004722 · TKD
Article specifications
| Variant | FESTOONTEC C-PUR-HF -J |
|---|---|
| Dimension | 5 G 2,5 |
| Outer-Ø [mm] nom. | 12,8 – 15,4 |
| Cu Index [kg/km] | 190.0 |
| Weight [kg/1.000] | 280.0 |
Series information: FESTOONTEC® C-PUR-HF (EMV)
Application
power and control cable for very high mechanical requirements, frequently bendings, especially for use in trolley systems, drag chains on moving parts of machines, conveyor facilities. Suitable for dry, humid and wet rooms and for outdoor use.
SPECIAL FEATURES
- free from lacquer damaging substances and silicone (during production)
- halogen-free
- FESTOONTEC PUR-HF also available with shielded twisted pairs, see table
- also available on request for permanent use in water (no drinking water) up to 50 m diving depth
REMARKS
- RoHS compliant
- Compliant with the 2014/35/EU Directive (“Low Voltage Directive“) CE
- Special versions, other dimensions, cross-sections, wire and sheath colors are available on request.
DESIGN
| Conductor material | bare copper strand |
|---|---|
| Conductor class | acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5 |
| Core insulation | based on polyester |
| Core identification | colored acc. to VDE 0293-308, without GNYE |
| Stranding | cores stranded in layers around central element |
| Inner sheath material | PUR, only cables with 2, 3, 4 and 5 cores and cables with twisted pairs |
| Protection against contact | PETP-foil, overlapped | polyesterfleece, overlapped |
| Overall shield | copper braid tinned, coverage ca. 85 % |
| Outer sheath material | PUR |
| Sheath colour | black |
ELECTRICAL PROPERTIES
| Rated voltage AC IEC | Uo/U: 0,6/1 kV |
|---|---|
| Testing voltage | 2,5 kV |
| Current carrying capacity | acc. to DIN VDE 0298-4 |
MECHANICAL & DYNAMIC PROPERTIES
| Min. bending radius fixed | 6 x d |
|---|---|
| Min. bending radius moved | 7,5 x d |
| Traverse speed (m/s) – drag chain | 3.5 m/s – 210 m/min |
| Traverse speed (m/s) – festoon | 4 m/s – 240 m/min |
| Traverse speed (m/s) – reeling | 1 m/s – 60 m/min |
| Tensile strength | on the conductor max. 15 N/mm² |
THERMAL PROPERTIES
| Operat. temp. fixed min./max. [°C] | -50 °C / +90 °C |
|---|---|
| Operat. temp. moved min/max [°C] | -40 °C / +90 °C |
| Temp. at conductor in operation max [°C] | +90 °C |
Manufacturer documents

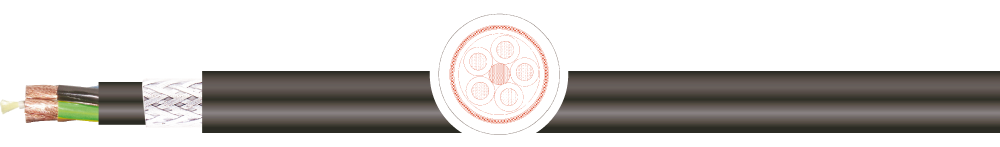

Series illustration. Dimensions and execution follow the article specifications.
