NAYY-O 0,6/1KV 1X70 RM – BLACK
Manufacturer article number: 4001400 · TKD
Article specifications
| Variant | NAYY-O 0,6/1kV |
|---|---|
| Dimension | 1 X 70rm |
| Outer-Ø [mm] nom. | 16,0 – 19,0 |
| Weight [kg/1.000] | 383.0 |
Series information: NAYY 0,6/1kV
Application
power cable for use in generating plants, industrial facilities, switching stations, in local networks and power supply industry. Use predominantly for laying underground, indoor- and outdoor use, cable channels and in water.
SPECIAL FEATURES
- 0,6/1 kV operating voltage, 4 kV testing voltage
- UV-resistant
- no hood termination necessary when laying in dry rooms
- free from lacquer damaging substances and silicone (during production)
- NAYY-O without GNYE
- competitive alternative and low-weight to NYY (aluminium conductor)
REMARKS
- RoHS compliant
- conforms to 2006/95/EC Directive („Low Voltage Directive“) CE
- available with blue outer sheath for intrinsically safe systems on request
- SMv conductor: sector-shaped, stranded compacted
- Special versions, other dimensions, cross-sections, core and sheath colors are available on request
DESIGN
| Conductor material | Aluminium-Leiter |
|---|---|
| Conductor class | acc. to DIN VDE 0295 class 1 or 2 resp. IEC 60228 class 1 or 2 |
| Core insulation | PVC |
| Core identification | NAYY-J: with GNYE; multi core acc. to VDE 0207 part 5, up to 5 cores acc. VDE 0293-308 NAYY-O: without GNYE; multi core acc. to VDE 0207 part 5 |
| Stranding | multi cores stranded in layers |
| Inner sheath material | filler sheath |
| Outer sheath material | PVC |
| Sheath colour | black |
ELECTRICAL PROPERTIES
| Rated voltage AC IEC | Uo/U: 0,6/1 kV |
|---|---|
| Testing voltage | 4 kV |
| Conductor resistance | at +20 °C acc. to DIN VDE 0295 class 1 or 2 resp. IEC 60228 class 1 or 2 |
| Current carrying capacity | acc. to DIN VDE, see Technical Guidelines |
THERMAL PROPERTIES
| Operat. temp. fixed min./max. [°C] | -5 °C / +70 °C |
|---|---|
| Temp. at conductor in operation max [°C] | + 70 °C in operation |
STANDARDS & APPROVALS
| Standard | acc. to DIN VDE 0276-603 |
|---|---|
| Approvals | VDE |
Manufacturer documents

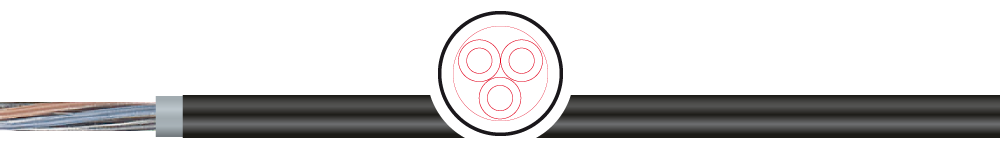

Series illustration. Dimensions and execution follow the article specifications.
