MULTINORM H05V2-K GNYE 1X0,5 (AWG21) – HAR-UL(MTW)-CSA, UL 1007+1569
Manufacturer article number: 5001062 · TKD
Article specifications
| Variant | MULTINORM H05V2-K – UL-Style 1007+1569,CSA TEW |
|---|---|
| Dimension | 1 X 0,5 (AWG 21) |
| Outer-Ø [mm] nom. | 2,3 |
| Cu Index [kg/km] | 4.8 |
| Weight [kg/1.000] | 8.6 |
| Single core color | green-yellow |
Series information: Multinorm H05V2-K, H07V2-K HAR/UL/CSA
Application
HAR/UL/CSA approved PVC switching cable for internal wiring of switch boards, medical devices, electronic modules and control systems and for installation in conduits and pipes in machinery and as connecting strand for transformers and motors.
SPECIAL FEATURES
- largely resistant to acids, bases and specified types of oil
- „international“ approved control cable (HAR/UL/CSA)
- no direct laying on pallets, in channels or trays (exceptional as potential compensation)
- all usual standard colours available
- X07V2-K: UL-Style 1015 dimensions from 50 mm² incl. similar to HAR
REMARKS
- RoHS compliant
- LABS-free / silicone-free (during production)
- comp. with the 2014/35/EU Directive (“Low Voltage Directive“) CE
- special versions, other dimensions, cross-sections, wire and sheath colors are available on request
DESIGN
| Conductor material | tinned or bare copper strand |
|---|---|
| Conductor class | acc. to UL-CSA, fine stranded acc. to IEC 60228 cl. 5 |
| Core insulation | PVC |
| Core identification | different colours |
ELECTRICAL PROPERTIES
| Rated voltage AC IEC | H05V2-K UL Style 1007+1569 MTW, CSA TEW: HAR 300/500V, UL+CSA 300V / H05V2-K UL Style 1015 MTW, CSA TEW: HAR 300/500V, UL+CSA 600V / H07V2-K/X07V2-K UL Style 1015 MTW, CSA TEW: HAR 450/750V, UL+CSA 600V |
|---|---|
| Testing voltage | 3 kV |
| Conductor resistance | acc. to IEC 60228 |
| Current carrying capacity | acc. to. DIN VDE, see Technical Guidelines |
MECHANICAL & DYNAMIC PROPERTIES
| Min. bending radius fixed | 4 x d |
|---|---|
| Min. bending radius moved | 15 x d |
STANDARDS & APPROVALS
| Standard | UL: AWM style 1007/1569/1015 + MTW; CSA: TEW; HAR |
|---|---|
| Approvals | UL/CSA: 105 °C – 300 V / 105 °C – 600 V; HAR |
Manufacturer documents

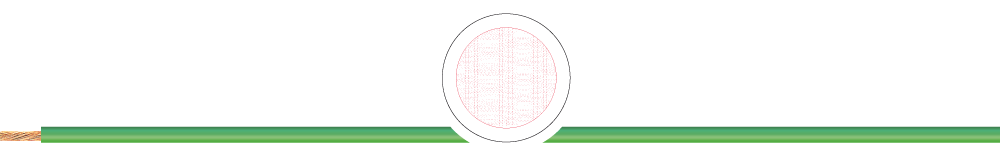

Series illustration. Dimensions and execution follow the article specifications.
