INDULINK® DATACON D-Sub CAN-Bus 90° – D-Sub Socket, 9-pole, Screw Terminal – for Cable OD 5-8mm, max 0,5mm2
Manufacturer article number: 6502829 · TKD
Series information: INDULINK® DATACON D-Sub CAN-Bus Screwdriving Technology
Application
as field assembly D-Sub connector, 9-pin, with proven and reliable screw technology for CAN-Bus systems.
SPECIAL FEATURES
- metallized housing for improved EMC compatibility
- integrated switchable terminating resistor for use as node or segment end
- available with 90° or 180° (axial) cable outlet
- version without and with additional D-Sub interface (PG) for additional device connection
REMARKS
- quick and easy installation with screw connection
- no special tools required
- compact, small design
- no parts that can be lost
- for CAN bus cables up to 8 mm diameter
- for transmission rates up to 1MBit/s
- UL Recognized
- max. ambient temperature UL +60°C
DESIGN
| Connector design | D-Sub |
|---|---|
| Number of contacts | 9 |
| Connector characterization | Socket (female) |
| Connector housing material | Plastic, metalized |
| Termination method | Screw (terminal blocks) |
| for cable versions | CAN |
| Cable outer-Ø min. [mm] | 5 |
| Cable outer-Ø max. [mm] | 8 |
| Conductor cross section min. (mm²) | 0,14 mm² |
| Conductor cross section max. (mm²) | 0,5 mm² |
| Connectable cores | 6 |
ELECTRICAL PROPERTIES
| Supply voltage max. | 24 V |
|---|---|
| Terminating resistor type | Resistor 120 Ohm integrated and switchable via slide switch |
| Terminating resistor | yes |
INTERFACE PROPERTIES
| Interface type | CAN-Bus |
|---|---|
| Transmission rate | 1 Mbit/s |
THERMAL PROPERTIES
| Temperature range min/max [°C] | -25 °C / +85 °C (UL: +65 °C) |
|---|---|
| Transport & storage temp. min. [°C] | -25 |
| Transport & storage temp. max. [°C] | 85 |
| Transport & storage temp. min./max. [°C] | -25 °C / +85 °C |
Manufacturer documents
Datasheet (PDF)Assembly/Processing Instructions (PDF)Assembly/Processing Instructions (PDF)Assembly/Processing Instructions (PDF)

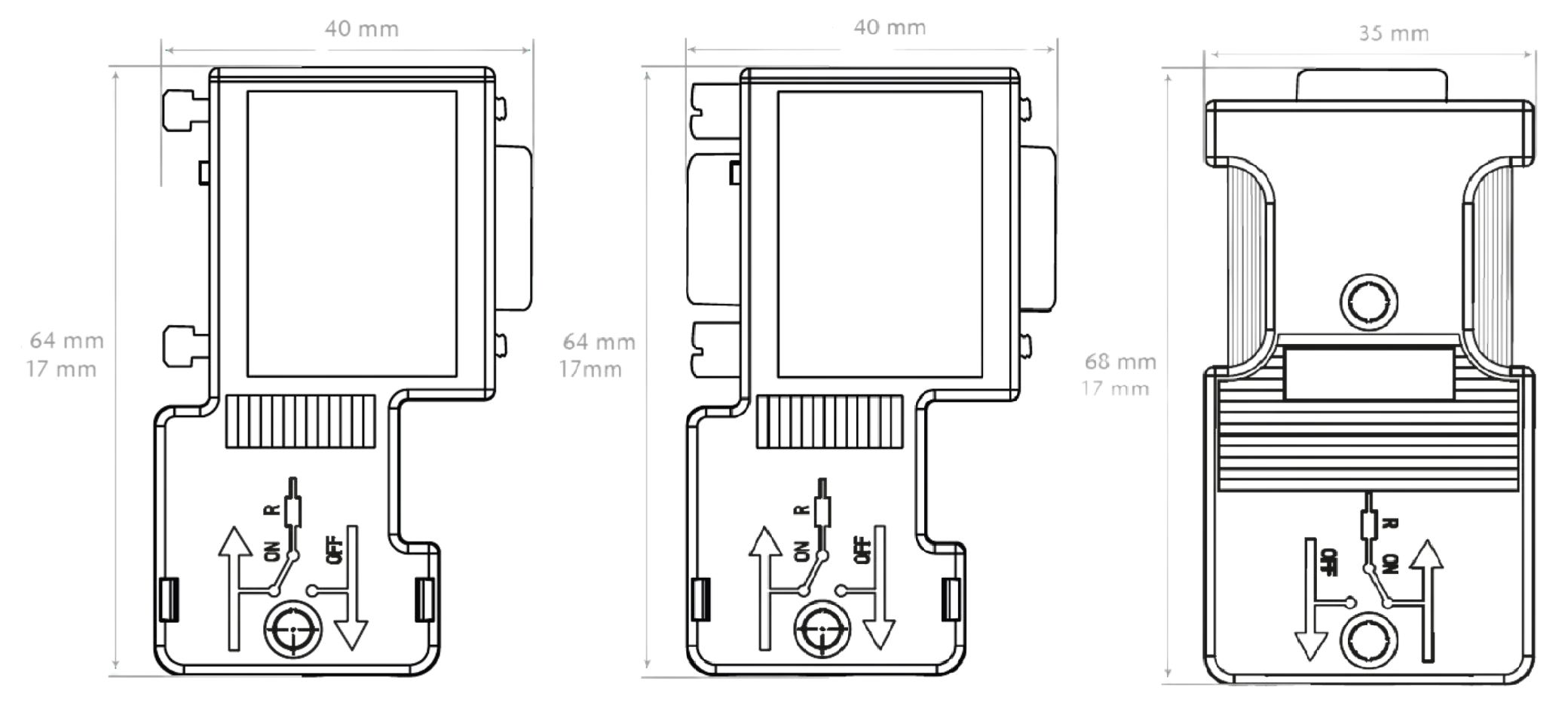

Series illustration. Dimensions and execution follow the article specifications.
